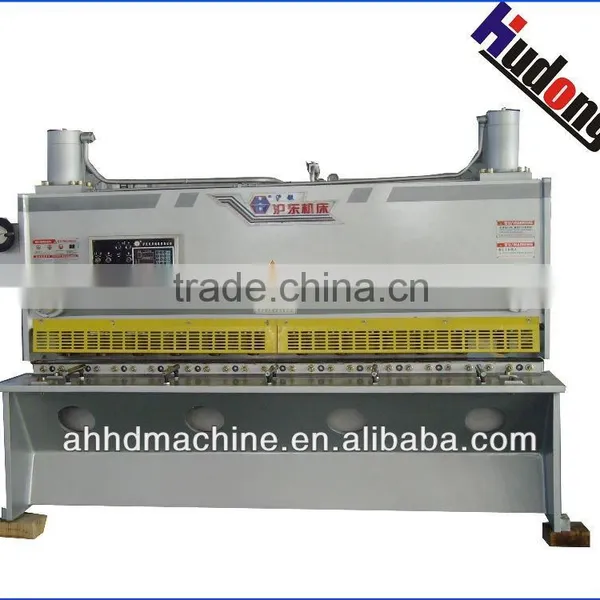

Hydraulic CNC guillotine plate shearing machine
Properties and characters:
1.It is the second generation of hydraulic plate shearing machine.
2.Machine frame and knife rest are welded integral. Vibration eliminates stress. Precision is kept well.
3.The advanced integrated hydraulic system is reliable.
4.Adopt three-point support rolling guide to eliminate gas between supports and improve shearing quality.
5.Gap between blades is adjusted with hand-operated wheels, so it is quick, exact and convenient.
6.The four rectangular blades all can be used for a long time.
7.The up knife rest adopts interior inclining structure for falling conveniently and improving precision.
8.It has the function of shearing by stages.
9.It has the lighting function.
10.Back stop is controlled with E21 numerical control system.
Convenient working and person security protection(Optional)
1. The machine can be equipped with full closed back side door to prevent any careless inside when cutting.
2. The machine can be equipped with cutted lift out declined platform under the back gauge for convenient operation.
3. Light curtain can be equipped also for security standard needs.
4. Light function is equipped for convenient checking and care when cutting.

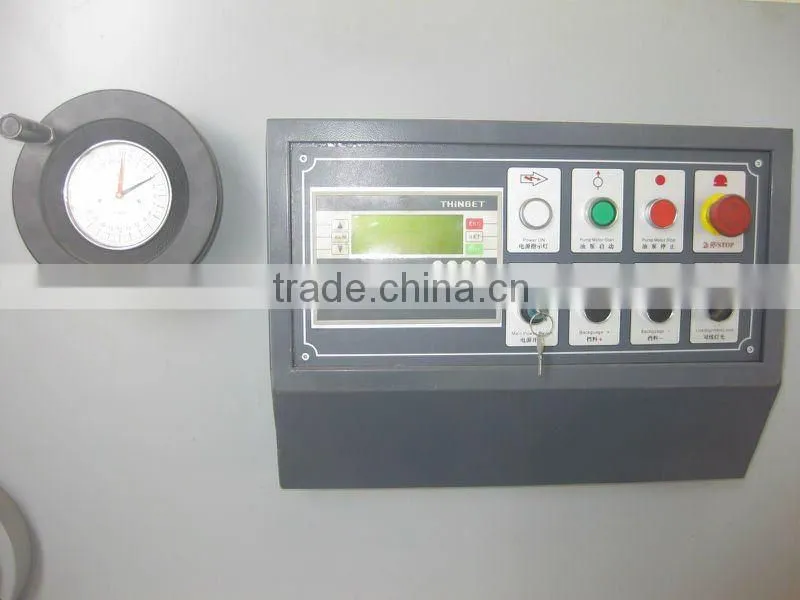

NC/CNC System and advance touch screen function :
The normal system for CNC are Nanjing ESTUN (Holand Delem 60% JOINTED) system: ESTUN E20,ESTUN E21s and ESTUN E200 system,DELEM DA310 and DELEM DA360 and also Swiss CYBELEC system DNC60 and CT6 (Touch Screen). X/Y axis can be controlled and displayed. The backgauge distance can be controlled and calculated into 1000MM long.
The NC system will be ESTUN E10 mostly we use for high quality guarantee.
All of their instruction manual is available when applied to SIECC/SIECCTECH
The specifications of the machine:
| Model | Thickness of sheared plate mm |
Width of sheared plate mm |
Strokes min -1 |
Scope of back stop mm |
Cutting angle ° |
Throat depth mm |
Motor power kw |
Overall dimension mm(L×W×H) |
| 4×2500 | 4 | 2500 | 25-45 | 600 | 0.5-1.5 | 100 | 5.5 | 3000×2000×1850 |
| 6×2500 | 6 | 2500 | 20-45 | 600 | 0.5-1.5 | 125 | 7.5 | 3030×2075×1920 |
| 6×3200 | 6 | 3200 | 16-45 | 600 | 0.5-1.5 | 125 | 7.5 | 3730×2075×1970 |
| 6×4000 | 6 | 4000 | 14-45 | 600 | 0.5-1.5 | 125 | 7.5 | 4530×2075×2080 |
| 6×5000 | 6 | 5000 | 11-40 | 800 | 0.5-1.5 | 125 | 7.5 | 5530×2075×2210 |
| 6×6000 | 6 | 6000 | 9-36 | 800 | 0.5-1.5 | 125 | 11 | 6530×2075×2520 |
| 7×7000 | 7 | 7000 | 7-28 | 800 | 0.5-1.5 | 125 | 11 | 7530×2075×2830 |
| 8×2500 | 8 | 2500 | 20-45 | 600 | 0.5-1.5 | 125 | 11 | 3040×2075×1920 |
| 8×3200 | 8 | 3200 | 16-45 | 600 | 0.5-1.5 | 125 | 11 | 3740×2075×1920 |
| 12×2500 | 12 | 2500 | 12-35 | 800 | 0.5-2 | 125 | 15 | 3110×2575×2210 |
| 12×3200 | 12 | 3200 | 7-35 | 800 | 0.5-2 | 125 | 15 | 3810×2575×2420 |
| 12×4000 | 12 | 4000 | 8-35 | 800 | 0.5-2 | 125 | 15 | 4610×2575×2530 |
| 16×2500 | 16 | 2500 | 16-40 | 800 | 0.5-2.5 | 125 | 22 | 3130×2655×2200 |
| 16×4000 | 16 | 4000 | 12-40 | 800 | 0.5-2.5 | 125 | 22 | 4630×2655×2570 |
| 20×2500 | 20 | 2500 | 16-40 | 800 | 0.5-2.5 | 125 | 30 | 3160×2855×2300 |
| 20×4000 | 20 | 4000 | 12-40 | 800 | 0.5-2.5 | 125 | 30 | 4660×2855×2720 |
| 25×2500 | 25 | 2500 | 8-15 | 800 | 0.5-3.5 | 120 | 37 | 3330×2000×2650 |
| 25×3200 | 25 | 3200 | 8-15 | 800 | 0.5-3.5 | 120 | 37 | 3970×2100×2865 |
| 25×4000 | 25 | 4000 | 6-12 | 1000 | 0.5-3.5 | 120 | 37 | 4780×2500×3150 |
| 32×2500 | 32 | 2500 | 6-12 | 1000 | 0.5-3.5 | 120 | 45 | 4100×2300×3200 |
| 32×3200 | 32 | 3200 | 8-12 | 1000 | 0.5-3.5 | 120 | 55 | 1900×2650×3450 |
| 40×2500 | 40 | 2500 | 4-10 | 1000 | 0.5-3.5 | 120 | 75 | 4100×2550×3500 |
| 40×3200 | 40 | 3200 | 4-10 | 1000 | 0.5-3.5 | 120 | 75 | 4900×2900×3750 |
The place with oily will be parceled up with oil-proof paper , outside coated with plastic film , then the whole body is covered with plastic bag and then fastened to the hook of inner container.
we can quote CNF price, arrange shipping company. also we can do FOB shanghai price, you arrange shipping company.
Firstly,transport container to our factory , when our workers finishing loads. transport from our factory to shanghai port.
Secondly, transport to your port.
Before shipment, we will put the machine a good tune, packing, they also do not disassemble anything, the past can be used directly after the operation, and will provide instructions for use, if it is not, we can send our engineers to your country.
Hudong company provides oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance. We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here, this will help your easy in understanding and helpful if you need to be our dealer.
However, don’t worry ,we have our company own CD/Manual to show you along with the machine. So you can learn this from the existing documents to deepen your knowledge and understanding.
Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet ,the world has become smaller and you can easy cath us if any assistance needed.
Through all the ways , we will guarantee the service quality and ensure you will be well helped anytime anywhere.
