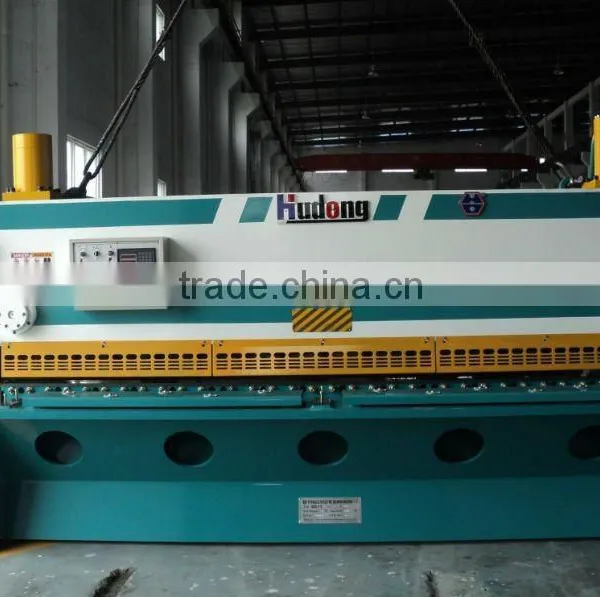

Hydraulic CNC Controller Sheet Guillotine Shears (8*3200)

Name: Hydraulic CNC Controller Sheet Guillotine Shears (8*3200)
Brand: Hudong
SKU: 129707497
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

Hudong

Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Brand Name Hudong

Model Number QC11Y-8*3200

Certification CE,ISO9001

Warranty 1 year after saling

After-sales Service Provided Engineers available to service machinery overseas

Voltage optional

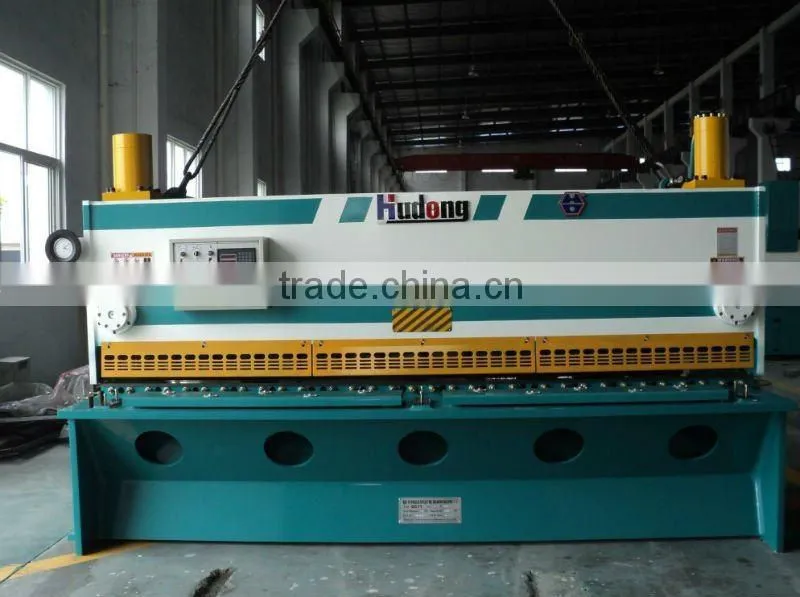

Hydraulic CNC controller sheet guillotine shears (8*3200)

1.stepless control for the stroke,the gap between up blade

and down blade is manually adjusted by handle for high uniformity.

tection fence and the electric interlock to ensure the operation safety.

3.the close loop control system that consists of CNC system and position

coder features fast response speed,high precision and exceptional stablity

and can ensure the accuracy of displacement of backgauge

Technical data

No.			value	unit	remark
1	Max cutting thickness		10	mm	σ_b≤450N/mm
2	Max cutting width		3200	mm
3	Throat depth		100	mm
4	Shearing angle		0.5-2	°
5	Strokes time		16-45	Min^-1
6	Max stroke volume of up knife		100	mm
7	Max shearing force		140	KN
8	Max compressive force feeding			kN	Change with the load
9	Max working force of system		12	MPa
10	Adjustment of back gauge		10-600	mm
11	Oil pump	model	25MCY14-1B
11	Oil pump	flow	32	ml/r
12	Master motor	model	Y132M-4
		power	11	kW
		Rotate speed	1440	r/min
13	dimension	length	3890	mm
		width	1600	mm	No including the former ruler
		height	2170	mm
