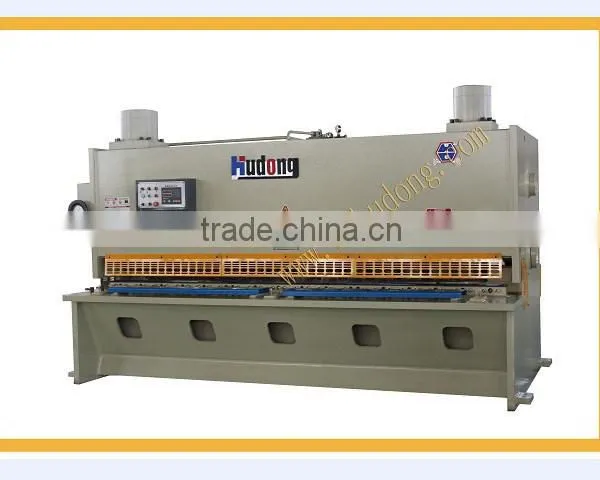

Help CenterEuropean Design 6*3200 mm Hydraulic Plate Shearing Machine
Related Products
-
QC11K CNC Hydraulic Guillotine Shearing MachineNegotiableMOQ: 1 Set -
Hydraulic Steel Plate Guillotine Cutting MachineNegotiableMOQ: 1 Set
-
Hydraulic Guillotine ShearsUS$ 5,000 - 25,000MOQ: 1 Set
-
Hydraulic CNC Guillotine Shearing Machine6x3200NegotiableMOQ: 1 Set
-
Hydraulic CNC Guillotine Shearing MachineNegotiableMOQ: 1 Set
1.stepless control for the stroke,the gap between up blade
and down blade is manually adjusted by handle for high uniformity.
tection fence and the electric interlock to ensure the operation safety.
3.the close loop control system that consists of CNC system and position
coder features fast response speed,high precision and exceptional stablity
and can ensure the accuracy of displacement of backgauge
Configurations hydraulic guillotine shears hydraulic shear machine hydraulic shear hydraulic shear h hydraulic guillotine shears hydraulic cutting machine hydraulic cutting machine cnc shearing machine : hydraulic sheet shearing machine
2) Main Motor :Siemens ,Germany
3) Electrical Component: Schneider , France
4) Hydraulic valve: Rexroth, Germany
5) Seal: VALQUA,Japan
6) Pump: Bosch-Rexroth ,Germany
7) Ball screw : HIWIN , Taiwan
8) Liner guideway: HIWIN , Taiwan
9) Foot switch : China famous brand
10) Servo motor : Estun Company , China
11)Grating ruler: Heidenhain , Germany
12)Photoelectric Protector: Fiessler,Germany
Technical data: hydraulic plate shearing machine
No. |
|
value |
unit |
remark |
||
1 |
|
Max cutting thickness |
10 |
mm |
σb≤450N/mm |
|
2 |
Max cutting width |
3200 |
mm |
|
||
3 |
|
Throat depth |
100 |
mm |
|
|
4 |
Shearing angle |
0.5-2 |
° |
|
||
5 |
Strokes time |
16-45 |
Min-1 |
|
||
6 |
|
Max stroke volume of up knife |
100 |
mm |
|
|
7 |
Max shearing force |
140 |
KN |
|
||
8 |
Max compressive force feeding |
|
kN |
Change with the load |
||
9 |
Max working force of system |
12 |
MPa |
|
||
10 |
Adjustment of back gauge |
10-600 |
mm |
|
||
11 |
Oil pump |
model |
25MCY14-1B |
|
|
|
flow |
32 |
ml/r |
|
|||
12 |
Master motor |
model |
Y132M-4 |
|
|
|
power |
11 |
kW |
|
|||
Rotate speed |
1440 |
r/min |
|
|||
13 |
dimension |
length |
3890 |
mm |
|
|
width |
1600 |
mm |
No including the former ruler |
|||
height |
2170 |
mm |
||||
Convenient working and person security protection(Optional)
1. The machine can be equipped with full closed back side door to prevent any careless inside when cutting
2. The machine can be equipped with cutted lift out declined platform under the backgauge for convenient operation.
3. Light curtain can be equipped also for security standard needs
4. Light function is equipped for convenient checking and care when cutting.
NC/CNC System and advance touch screen funtion
The normal system for CNC are Nanjing ESTUN (Holand Delem 60% JOINTED) system: ESTUN E20,ESTUN E21 and ESTUN E200 system,DELEM DA310 and DELEM DA360 and also Swiss CYBELEC system DNC60 and CT6 (Touch Screen). X/Y axis can be controlled and displayed. The backgauge distance can be controlled and calculated into 1000MM long.
The NC system will be ESTUN E10 mostly we use for high quality guarantee.
All of their instruction manual is available when applied to SIECC/SIECCTECH
3.the close loop control system that consists of CNC system and position
coder features fast response speed,high precision and exceptional stablity
and can ensure the accuracy of displacement of backgauge
Hudong company provides oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
However,donto worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.
Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy cath us if any assistance needed.
Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.
