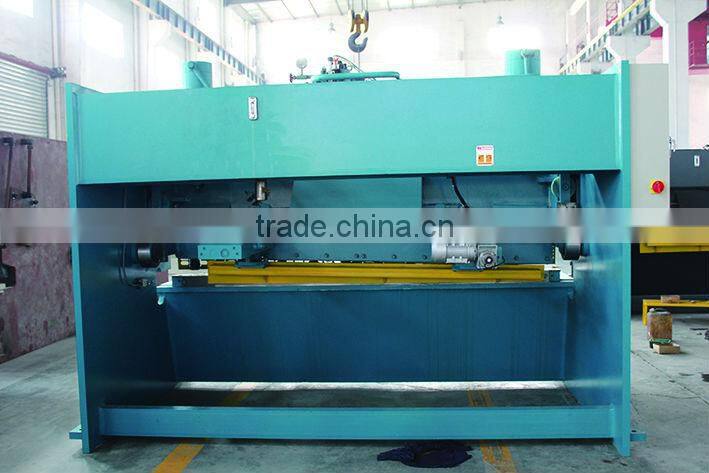

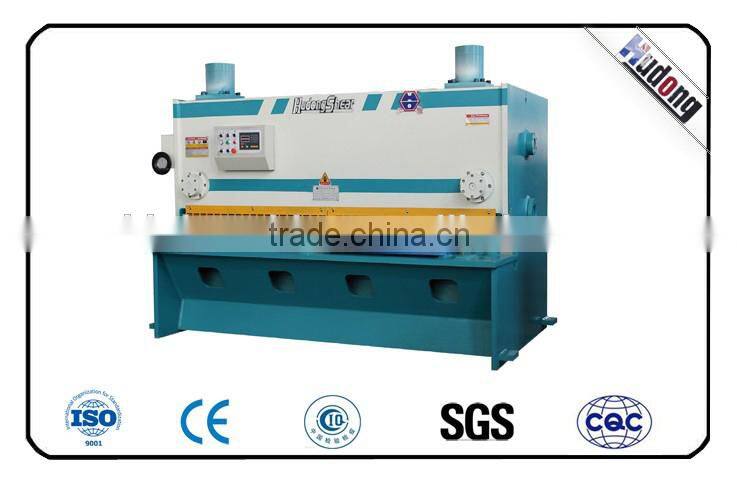

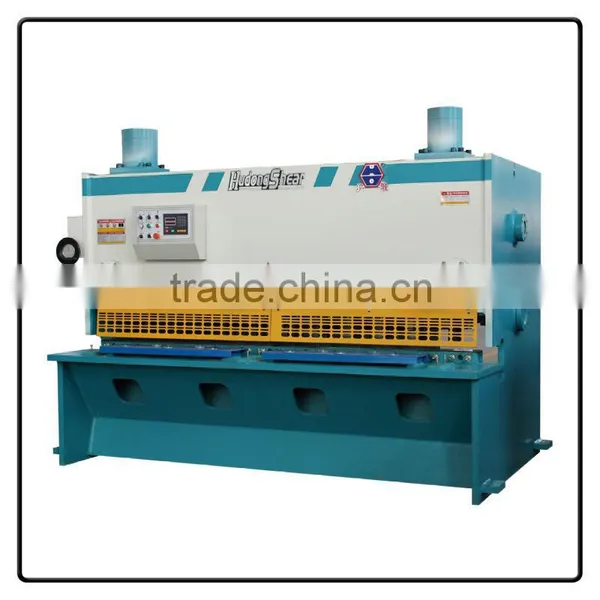

The second generation hydraulic guillotine plate shearing machine
1.It is the second generation of hydraulic plate shearing machine.
2.Machine frame and knife rest are welded integral. Vibration eliminates stress. Precision is kept well.
3.The advanced integrated hydraulic system is reliable.
4.Adopt three-point support rolling guide to eliminate gas between supports and improve shearing quality.
5.Gap between blades is adjusted with hand-operated wheels, so it is quick, exact and convenient.
6.The four rectangular blades all can be used for a long time.
7.The up knife rest adopts interior inclining structure for falling conveniently and improving precision.
8.It has the function of shearing by stages.
9.It has the lighting function.
10.Back stop is controlled with E21numerical control system.
Technical data:
Model |
Thickness of sheared plate |
Width of sheared plate |
Strokes |
Scope of back stop |
Cutting angle |
Throat depth |
Motor power |
Overall dimension |
QC116×3200 |
6 |
3200 |
16-45 |
600 |
0.5-1.5 |
125 |
7.5 |
3730×2075×1970 |
