Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Back-lit 30x60 LED Panel (95-100lm/W) With TUV,SAA,CB, Very Good Price LED Panel

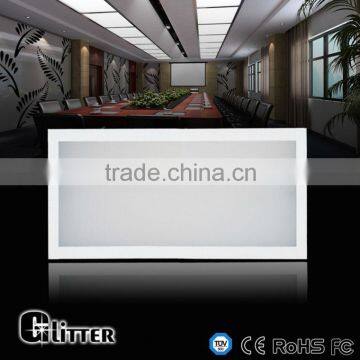

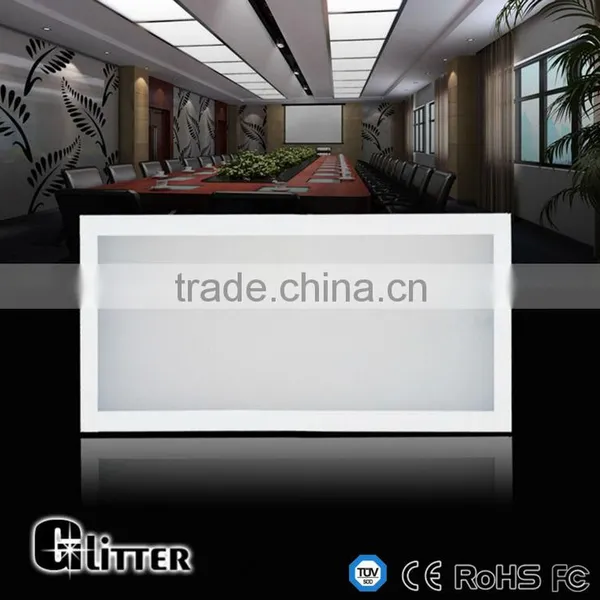

Back-lit 30x60 LED Panel (95-100lm/W) With TUV,SAA,CB, Very Good Price LED Panel

Name: Back-lit 30x60 LED Panel (95-100lm/W) With TUV,SAA,CB, Very Good Price LED Panel
Brand: Glitter
SKU: 129698987
Availability: InStock

Shenzhen Glitter Optoelectronic Technology Co., Ltd.

Back-lit 30x60 LED Panel (95-100lm/W) With TUV,SAA,CB, Very Good Price LED Panel thumbnail-1

Back-lit 30x60 LED Panel (95-100lm/W) With TUV,SAA,CB, Very Good Price LED Panel photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

LED Light Source:

SMD3014

Warranty(Years):

Input Voltage(V):

AC85-265V

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD3014

Warranty(Years) 3

Input Voltage(V) AC85-265V

Lamp Power(W) 24

Lamp Luminous Flux(lm) 2300

Lamp Luminous Efficiency(lm/w) 95

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 80000

Lamp Body Material Other, ABS+PC frame+Aluminum

IP Rating IP44

Certification CE, EMC, FCC, GS, LVD, SAA

Place of Origin Guangdong, China

Brand Name Glitter

Model Number PL00306-2403

Specifications

Back-lit 30x60 LED panel , (PL0606-2403)
95-100lm/W . TUV,SAA,CB,GS certified

Back-lit 30x60 LED Panel PL-0303-2403

up to 100lm/W LED panel with TUV

Products features :

1. Outstanding Heat Dissipation: help to reduce the luminous degradation and extent lifespan of products
2. High Lighting Transmittance Efficiency: up to 93% by imported diffuser from Japan
3. High Lighting Efficiency: over 100lm/W by Epistar SMD 3014 LED
4. GS,CB,SAA,C-Tick certified LED dirver (better compatibility , efficiency>90%)

Technical Specification :

1). Technical parameter

Item No.		PL-0306- 2403

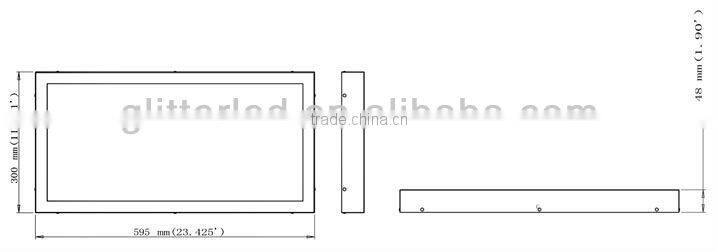

Dimension		300x595x48mm
Voltage		AC85V-265V 50/60HZ
Power		24W
LED Type		SMD3014
LED Quantity		200pcs
Luminous Flux	Warm white	>1800lm
	Neutral white	>2000lm
	Pure white	>2200lm
Color Temperature (CCT)	Warm white	2800-3500K
	Neutral white	3800-4500K
	Pure white	5500- 6500K
Beam Angle		120°
Color Rendering Index (CRI)		>80
Power Supply Efficiency		>90%
Luminous Efficiency		Up to 100lm/W
Power Factor (PF)		>0.95
Total Harmonic Distortion (THD)		≤15%
IP Rank		IP 44
Net Weight		2.60 Kgs
Certificate		CE, RoHS, SAA, TUV, CB,GS
