Home > Products > LED Panel Light > Super bright SAA approved LED Panel light 30x120cm, 36W, 4300lm, IES files available

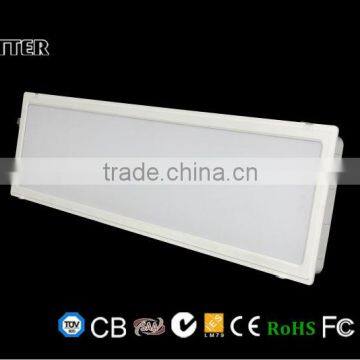

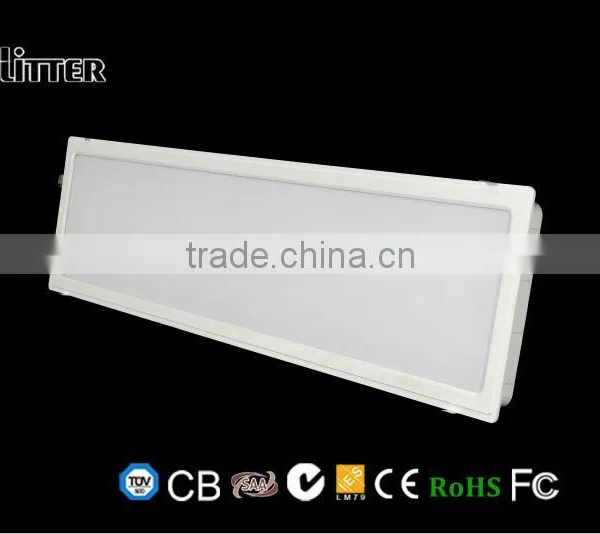

Super bright SAA approved LED Panel light 30x120cm, 36W, 4300lm, IES files available
- 10 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
30x30 12W LED Panel light (95lm/W, Dimmable/Emergency)TUV,CE,CB,RoHS,SAA,C-Tick
-
30x60 24W LED Panel light (95lm/W, Dimmable/Emergency)TUV,CE,RoHS,CB,SAA,C-Tick
-
Meanwell driver 60*120cm 90W LED Panel light 595*1195mm, 600*1200 SAA,TUV
-
95-100lm/W LED ceiling panel 60x60 (Italian design LED panel 600x600 with TUV,SAA,GS,CB)
-
Save energy lamp 600x600 300x300 300x1200 led panel light CE CB SAA RoHS TUV certification with 5 years warranty
-
600*600 45W LED Panel light PL-0606-4503 (95lm/W, Dimmable/Emergency)
Product Details
| LED Light Source | SMD 3014 | Warranty(Years) | 5 | |
| Input Voltage(V) | AC 85-265 | Lamp Power(W) | 36 | |
| Lamp Luminous Flux(lm) | 4250-5000lm | Lamp Luminous Efficiency(lm/w) | 120 | |
| Color Temperature(CCT) | Other, 2800-6500K | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP40 | Certification | CCC, CE, C-tick, EMC, FCC, GS, GOST, LVD, PSE, SAA | |
| Place of Origin | Guangdong, China | Brand Name | Glitter | |
| Model Number | PL-0312-5003 |
Product Description
Specifications
30x120cm led panel lightingBack-lit,95lm/W
Dimmable and Emergency (3 hours after power off)
Own designed Driver(GS,CB,SAA
SUPER bright SAA approved LED Panel light 30x120cm, 36W, 4300lm, IES files available
Main Feature
1. More efficiency: 120lm/W, PF>0.95, CRI 85
2. More Elegant : Perfect finishing, 0.65KG only
3. More reliable: Own designed LED Driver (SAA,GS,CB,SAA approved), safe and better Compatibility

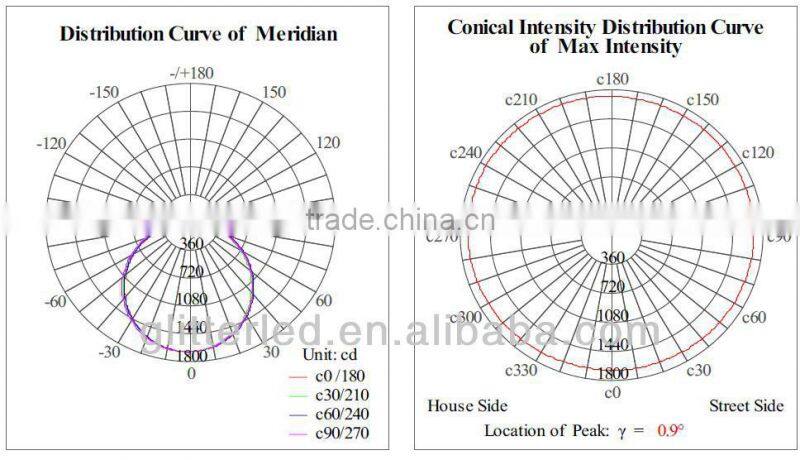

4. More Professional : IES Files, LM79, LM80 available
5. More reliable: SAA,C-Tick, TUV, CE, RoHS, CB, GS , approved
Parameter
No. | Parameter | Unit | Description | |
1 | Power supply | V | AC85-265 | |
2 | Current frequency | Hz | 50/60 | |
3 | Working voltage | V | DC24 | |
4 | Power consumption | W | 36 | |
5 | Color temperature | Warm white | lm | 2800-3500 |
Neutral white | 3800-4500 | |||
Cool white | 5500-6500 | |||
6 | Lumen | Warm white | K | >3960 |
Neutral white | >4140 | |||
Cool white | >4300 | |||
7 | Material |
| ABS+Aluminun | |
8 | Operating temperature | °C | -20~+40 | |
9 | Humidity |
| 10-80% | |
10 | certificate | TUV, CE, RoHS, SAA, CB, C-Tick | ||
11 | Luminaires Class | Ⅲ | ||

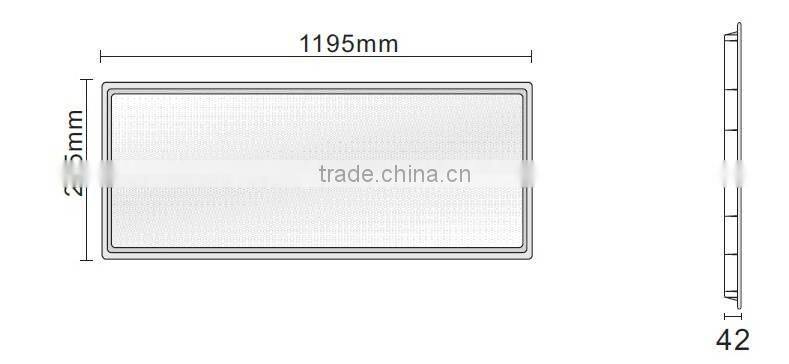

Dimension:

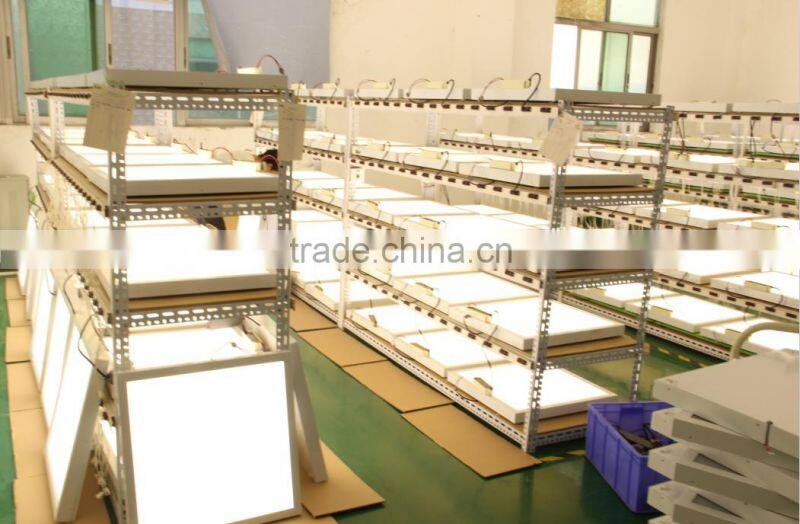

Aging Test :

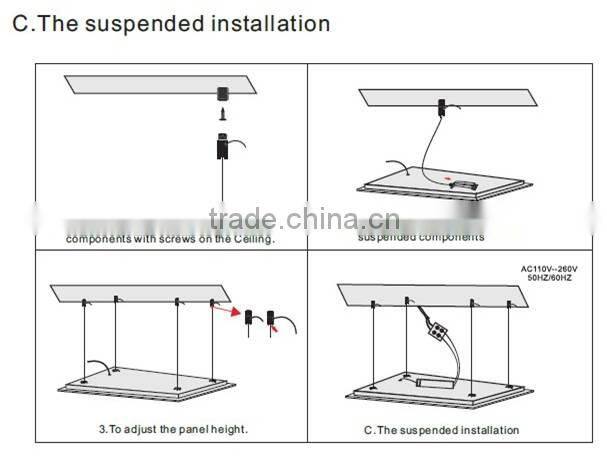

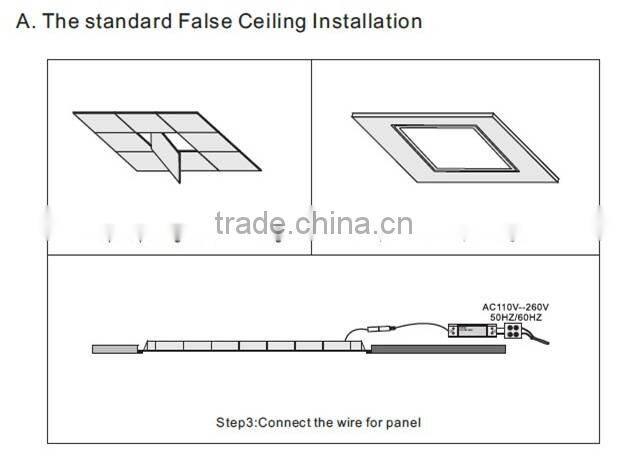

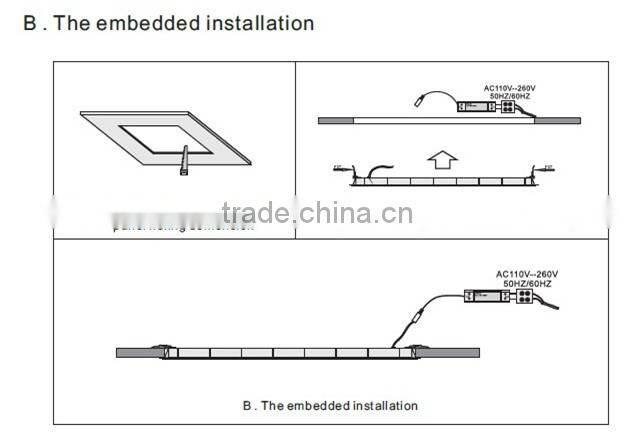

Installing:
Package:
Package | QTY/CTN | Carton Size | G.W. | Volume Weight |
2pcs | 1220*140*320mm | 7.00kgs | 11.02kgs |
Application
• Offices
• Kitchens
• Bathrooms
• Library
• Department Store & Boutiques
• Restaurant & Cafeteria
• Conference Rooms
• Hospital & Laboratory
Warranty terms:
5-year warranty since the date of purchase is offered for the High brightness Panel light from GLITTER.
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, GLITTER will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. GLITTER will provide paid maintenance service by under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service; GLITTER will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. GLITTER reserves the rights for final explanation of aforesaid terms.
Caution: GLITTER will not be responsible for any other failure or damage by incorrectly usage.
Company View
Certificate:
OEM,ODM available.
Customer Design Lables, Package available,
Welcome to contact me for More details about pricing, Packing, Shipment and Discount
——Glitter.Merry
Contact Us
- Shenzhen Glitter Optoelectronic Technology Co., Ltd.
- Contact nameAlice Wen Chat Now
- Phone86-755-29356750
- Address4F,Huiyida Building,3rd Industrial Park,Tangxiayong,Songgang,BaoAn District,Shenzhen,China, Shenzhen, Guangdong
