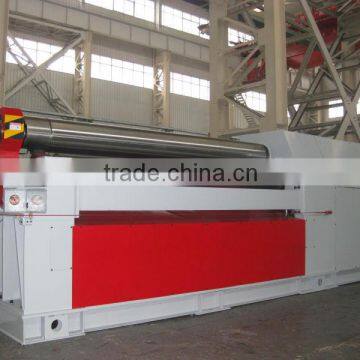

JXW11HNC-12X2500 Hydraulic Power and New Condition 3-roll plate bending machine
- 15 Set / Sets per Month
- Tianjin or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
steel structure chemical industry Pressure vessel Bending machine tube bending machine
-
3-ROLLER ARCH DOWN PLATE ROLLING MACHINE
-
JXW11XNC- 3-roll plate bending machine with horizontal adjustable bottom rolls
-
JXW11XNC-25X2500 3-roll plate bending machine with horizontal adjustment of bottom rolls
-
JXW11XNC-120X3000 hydraulic plate rolling machine
-
JXW11XNC-120X3000 plate rolling machine
Product Details
| Place of Origin | Shanxi, China | Brand Name | Bigstars | |
| Model Number | JXW11HNC-12X2500 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Extended rolls to bend angle steel and flat steel (Multi-function)
Safety limit switch
Safety line
Specificaitons of three roll machine:
Specification | Max plate thickness (mm) | Pre-bending thickness (mm) | Max plate width (mm) | Top roller diameter (mm) | Bottom roller diameter (mm) | Bending speed (m/min) |
JXW11HCNC-12X2000 | 12 | 10 | 2000 | 220 | 220 | 5 |
JXW11HCNC-12X2500 | 12 | 10 | 2500 | 280 | 280 | 4.5 |
JXW11HCNC-16X2000 | 16 | 12 | 2000 | 280 | 280 | 4.5 |
JXW11HCNC-16X2500 | 16 | 12 | 2500 | 300 | 300 | 4 |
JXW11HCNC-16X3000 | 16 | 12 | 3000 | 330 | 330 | 4 |
JXW11HCNC-20X2500 | 20 | 16 | 2500 | 330 | 330 | 4 |
JXW11HCNC-20X3000 | 20 | 16 | 3000 | 400 | 400 | 4 |
JXW11HCNC-30X2500 | 30 | 25 | 2500 | 450 | 450 | 4 |
JXW11HCNC-30X3000 | 30 | 25 | 3000 | 500 | 500 | 4 |
JXW11HCNC-35X2500 | 35 | 25 | 2500 | 500 | 500 | 4 |
JXW11HCNC-35X3000 | 35 | 25 | 3000 | 520 | 520 | 4 |
JXW11HCNC-40X2500 | 40 | 32 | 2500 | 520 | 500 | 4 |
JXW11HCNC-40X3000 | 40 | 32 | 3000 | 560 | 560 | 4 |
JXW11HCNC-50X2500 | 50 | 40 | 2500 | 580 | 580 | 4 |
JXW11HCNC-50X3000 | 50 | 40 | 3000 |
|
|
|
JXW11HCNC-60X2500 | 60 | 50 | 2500 |
|
|
|
JXW11HCNC-60X3000 | 60 | 50 | 3000 |
|
|
|
JXW11HCNC-70X2500 | 70 | 60 | 2500 |
|
|
|
JXW11HCNC-70X3000 | 70 | 60 | 3000 |
|
|
|
JXW11HCNC-80X2500 | 80 | 70 | 2500 |
|
|
|
JXW11HCNC-80X3000 | 80 | 70 | 3000 |
|
|
|
JXW11HCNC-90X2500 | 90 | 80 | 2500 |
|
|
|
JXW11HCNC-90X3000 | 90 | 80 | 3000 |
|
|
|
JXW11HCNC-100X2500 | 100 | 90 | 2500 |
|
|
|
JXW11HCNC-100X3000 | 100 | 90 | 3000 |
|
|
|
JXW11HCNC-120X2500 | 120 | 100 | 2500 |
|
|
|
JXW11HCNC-120X3000 | 120 | 100 | 3000 |
|
|
|
JXW11HCNC-140X2500 | 140 | 120 | 2500 |
|
|
|
JXW11HCNC-140X3000 | 140 | 120 | 3000 |
|
|
|
JXW11HCNC-160X2500 | 160 | 140 | 2500 |
|
|
|
JXW11HCNC-160X3000 | 160 | 140 | 3000 |
|
|
|
Note: | Machine specification range: plate thickness from 2~200mm, plate width from 500~7000mm. It depends on the customer’s requirements, plate specification and material. | |||||
Rolling process:
Machine structure diagram:
Why choose YOU?
1. Over 13-year professional maufacturing experience;
2. High-technology processing equipment;
3. Competitive price, trustable maitenance and instant service.
4. Engineers available to service machine overseas. Free installation, trial start and adjustment, training. The buyer takes charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
5. Instant and satisfied atter-sales service.
6. One year warranty for the machine for free and life-time service for the machine.
So, do not hesitate to contact me as follows,
Ms. Anna
Mob: (86)15935542018
Tel: (86)355-3569502-8028
Fax: (86)355-3569562
How to VISIT your factory?
Fly to Beijing Capital International airport or Shanghai International Aiport from your country, then Fly from Beijing or Shanghai directly to Changzhi airport for about 1 or 2 hours. We will pick you up at Changzhi airport, which is very near to our factory.
Our address is Changzhi city, Shanxi province, China.
