Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > JXW11QNC-50X3500 Roll Bending Machine

JXW11QNC-50X3500 Roll Bending Machine

Name: JXW11QNC-50X3500 Roll Bending Machine
Brand: Bigstars
SKU: 129680179
Availability: InStock

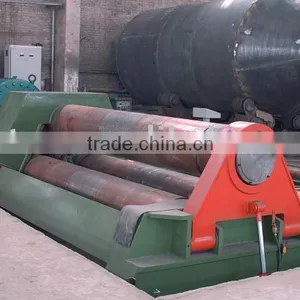

JXW11QNC-50X3500 Roll Bending Machine thumbnail-1

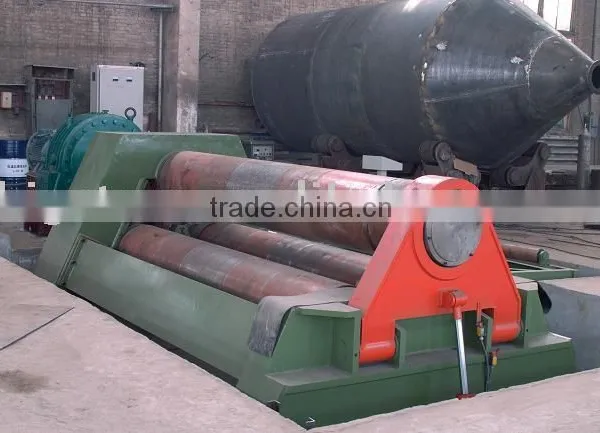

JXW11QNC-50X3500 Roll Bending Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanxi, China

Brand Name:

Bigstars

Contact Supplier Request Quote Chat Now

Changzhi Bigstars Metal-Forming Machine Manufacturer Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanxi, China

Brand Name Bigstars

Model Number JXW11QNC-50X3500

Machine Type Roller-Bending Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

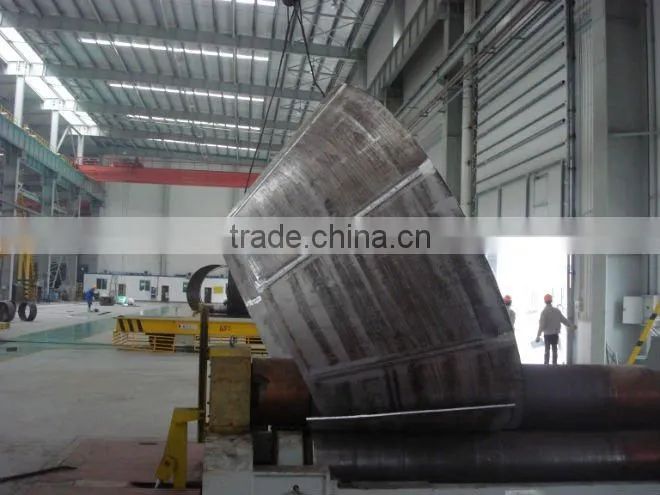

Conical rolling device:

Processing technique of key parts

The processing technique of working rollers is as follows,

Cast ingot →forging→ annealing→ first fault detection → rough machining → hardening and tempering→ second fault detection→ artificial aging treatment → finish machining

Components Brand:

a. hydraulic valve: Northman, Taiwan

b. Main heavy current element: Schneider Electric

c. PLC: OMRON, Japan

d. Linear displacement Sensor: NOVO, Germany

e. Joint & oil pipe: American Eton

Specifications of three roll machine:

Specification	Max plate thickness (mm)	Pre-bending thickness (mm)	Max plate width (mm)	Top roller diameter (mm)	Bottom roller diameter (mm)	Bending speed (m/min)
JXW11QCNC-12X2000	12	10	2000	220	220
JXW11QCNC-12X2500	12	10	2500	280	280
JXW11QCNC-16X2000	16	12	2000	260	260	5
JXW11QCNC-16X2500	16	12	2500	300	280
JXW11QCNC-16X3000	16	12	3000	330	300
JXW11QCNC-20X2500	20	12	2500	330	330
JXW11QCNC-20X3000	20	16	3000	400	380	5
JXW11QCNC-30X2500	30	25	2500	460	430	4
JXW11QCNC-30X3000	30	26	3000	500	460	4
JXW11QCNC-35X2500	35	28	2500	500	460
JXW11QCNC-35X3000	35	30	3000	520	480
JXW11QCNC-40X2500	40	35	2500	520	500	4
JXW11QCNC-40X3000	40	32	3000	560	540	3.5
JXW11QCNC-50X2500	50	42	2500	560	520	4
JXW11QCNC-50X3000	50	40	3000	560	520
JXW11QCNC-60X2500	60	50	2500	580	560	4
JXW11QCNC-60X3000	60	50	3000	600	580
JXW11QCNC-70X2500	70	60	2500	620	600	3.5
JXW11QCNC-70X3000	70	60	3000	660	620	3.5
JXW11QCNC-80X2500	80	70	2500	680	640	3.5
JXW11QCNC-80X3000	80	70	3000	700	680	3.5
JXW11QCNC-90X2500	90	80	2500	740	710	3.5
JXW11QCNC-90X3000	90	80	3000	780	720	3.5
JXW11QCNC-100X2500	100	90	2500	800	760	3.5
JXW11QCNC-100X3000	100	90	3000	820	800	3.5
JXW11QCNC-120X2500	120	100	2500	840	820	3.5
JXW11QCNC-120X3000	120	100	3000	860	840	3.5
JXW11QCNC-140X2500	140	120	2500
JXW11QCNC-140X3000	140	120	3000
JXW11QCNC-160X2500	160	140	2500
JXW11QCNC-160X3000	160	140	3000
Note:	Machine specification range: plate thickness from 2~200mm, plate width from 500~7000mm. It depends on the customer’s requirements, plate specification and material.
