Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > JXW11QNC-120X3000 Rolling Machine

JXW11QNC-120X3000 Rolling Machine

Name: JXW11QNC-120X3000 Rolling Machine
Brand: Bigstars
SKU: 129680147
Availability: InStock

JXW11QNC-120X3000 Rolling Machine thumbnail-1

JXW11QNC-120X3000 Rolling Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanxi, China

Brand Name:

Bigstars

Contact Supplier Request Quote Chat Now

Changzhi Bigstars Metal-Forming Machine Manufacturer Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanxi, China

Brand Name Bigstars

Model Number JXW11QNC-120X3000

Machine Type Roller-Bending Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

Specifications of three roll machine:

Specification	Max plate thickness (mm)	Pre-bending thickness (mm)	Max plate width (mm)	Top roller diameter (mm)	Bottom roller diameter (mm)	Bending speed (m/min)
JXW11QCNC-12X2000	12	10	2000	220	220
JXW11QCNC-12X2500	12	10	2500	280	280
JXW11QCNC-16X2000	16	12	2000	260	260	5
JXW11QCNC-16X2500	16	12	2500	300	280
JXW11QCNC-16X3000	16	12	3000	330	300
JXW11QCNC-20X2500	20	12	2500	330	330
JXW11QCNC-20X3000	20	16	3000	400	380	5
JXW11QCNC-30X2500	30	25	2500	460	430	4
JXW11QCNC-30X3000	30	26	3000	500	460	4
JXW11QCNC-35X2500	35	28	2500	500	460
JXW11QCNC-35X3000	35	30	3000	520	480
JXW11QCNC-40X2500	40	35	2500	520	500	4
JXW11QCNC-40X3000	40	32	3000	560	540	3.5
JXW11QCNC-50X2500	50	42	2500	560	520	4
JXW11QCNC-50X3000	50	40	3000	560	520
JXW11QCNC-60X2500	60	50	2500	580	560	4
JXW11QCNC-60X3000	60	50	3000	600	580
JXW11QCNC-70X2500	70	60	2500	620	600	3.5
JXW11QCNC-70X3000	70	60	3000	660	620	3.5
JXW11QCNC-80X2500	80	70	2500	680	640	3.5
JXW11QCNC-80X3000	80	70	3000	700	680	3.5
JXW11QCNC-90X2500	90	80	2500	740	710	3.5
JXW11QCNC-90X3000	90	80	3000	780	720	3.5
JXW11QCNC-100X2500	100	90	2500	800	760	3.5
JXW11QCNC-100X3000	100	90	3000	820	800	3.5
JXW11QCNC-120X2500	120	100	2500	840	820	3.5
JXW11QCNC-120X3000	120	100	3000	860	840	3.5
JXW11QCNC-140X2500	140	120	2500
JXW11QCNC-140X3000	140	120	3000
JXW11QCNC-160X2500	160	140	2500
JXW11QCNC-160X3000	160	140	3000
Note:	Machine specification range: plate thickness from 2~200mm, plate width from 500~7000mm. It depends on the customer’s requirements, plate specification and material.

Rolling process:

Machine structure diagram:

This machine is underground

Similar to a 4 Roll Plate Bending Machine
(The latter has 1 more lower roll.)
Special functions of cylinder regulated

Hydraulic system:

Its hydraulic system is auxiliary driving system to drive bottom roller lifting and tilting part laying down or returning. The main valves of the hydraulic system are the products of the Taiwan Northman Co., Ltd. All the hydraulic sealing parts are up to the state standard and have excellent quality to avoid leakage.

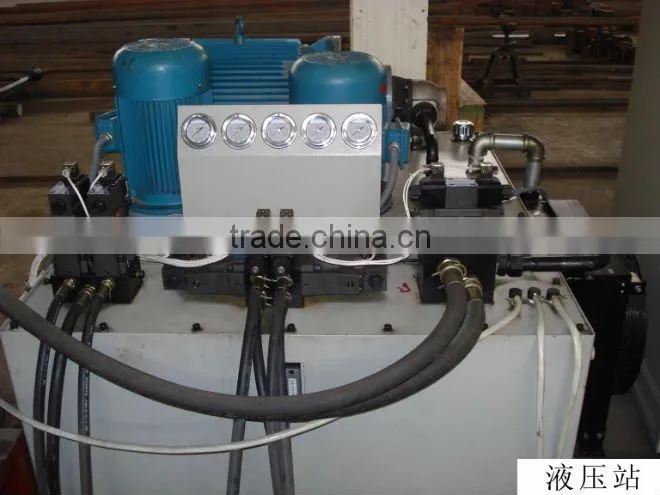

Hydraulic station:

Bearings:

All bearings of rollers are center adjusting rolling bearings which have heavy duty and low loss.

Safety guard system:

when emergency happens, operator can easily stop the equipment and shutdown the system as to ensure the security of equipment and working staff.

Components Brand:

a. hydraulic valve: Northman, Taiwan

b. Main heavy current element: Schneider Electric

c. PLC: OMRON, Japan

d. Linear displacement Sensor: NOVO, Germany

e. Joint & oil pipe: American Eton

The processing technique of working rollers is as follows,

Cast ingot →forging→ annealing→ first fault detection → rough machining → hardening and tempering→ second fault detection→ artificial aging treatment → finish machining

Performance:

1. Digital displays are provided for locating setting of roll positions.

2. Hydraulic drop end for ease of finished cylinder removal.

3. Conical bending device can be added.

Warranty: one year
