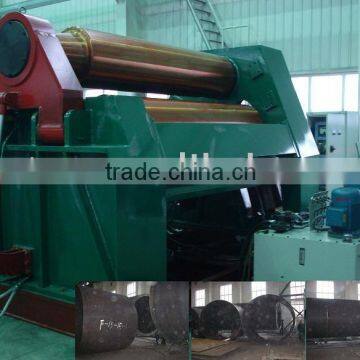

3-roll plate bending machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanxi, China
Brand Name	Bigstars	Model Number	JXW-
Machine Type	Roller-Bending Machine	Raw Material	Other
Material / Metal Processed	Stainless Steel	Power	Hydraulic
Automation	Automatic	Extra Services	Other
Certification	ISO 9001:2000	After-sales Service Provided	Engineers available to service machinery overseas

1. Description:

Prebending can be finished once feeding without making a U-turn.Plates can be bent into cylinder, arc and

cone-shape work pieces.

The top roller is fixed.

Two bottom rolls move up and down with arc-line by revolving around a fixed gyration centre.

The work piece can be taken out under any condition when working rolls unloose the plate.

Work pieces are always clamped during bending so that they won't slide.

2. Specifications of three roll machine:

Specification	Max plate thickness (mm)	Pre-bending thickness (mm)	Max plate width (mm)	Top roller diameter (mm)	Bottom roller diameter (mm)	Bending speed (m/min)
JXW11HCNC-12X2000	12	10	2000	220	220	5
JXW11HCNC-12X2500	12	10	2500	280	280	4.5
JXW11HCNC-16X2000	16	12	2000	280	280	4.5
JXW11HCNC-16X2500	16	12	2500	300	300	4
JXW11HCNC-16X3000	16	12	3000	330	330	4
JXW11HCNC-20X2500	20	16	2500	330	330	4
JXW11HCNC-20X3000	20	16	3000	400	400	4
JXW11HCNC-30X2500	30	25	2500	450	450	4
JXW11HCNC-30X3000	30	25	3000	500	500	4
JXW11HCNC-35X2500	35	25	2500	500	500	4
JXW11HCNC-35X3000	35	25	3000	520	520	4
JXW11HCNC-40X2500	40	32	2500	520	500	4
JXW11HCNC-40X3000	40	32	3000	560	560	4
JXW11HCNC-50X2500	50	40	2500	580	580	4
JXW11HCNC-50X3000	50	40	3000
JXW11HCNC-60X2500	60	50	2500
JXW11HCNC-60X3000	60	50	3000
JXW11HCNC-70X2500	70	60	2500
JXW11HCNC-70X3000	70	60	3000
JXW11HCNC-80X2500	80	70	2500
JXW11HCNC-80X3000	80	70	3000
JXW11HCNC-90X2500	90	80	2500
JXW11HCNC-90X3000	90	80	3000
JXW11HCNC-100X2500	100	90	2500
JXW11HCNC-100X3000	100	90	3000
JXW11HCNC-120X2500	120	100	2500
JXW11HCNC-120X3000	120	100	3000
JXW11HCNC-140X2500	140	120	2500
JXW11HCNC-140X3000	140	120	3000
JXW11HCNC-160X2500	160	140	2500
JXW11HCNC-160X3000	160	140	3000
Note:	Machine specification range: plate thickness from 2~200mm, plate width from 500~7000mm. It depends on the customer’s requirements, plate specification and material.

3. Rolling process:

4. Machine structure diagram:
