Specifications
brass compression cable gland1.Brass/Stainless steel
2.PG;M;NPT;MG;G
3.CE;RoHS;SGS;IP68
4.Factory/OEM

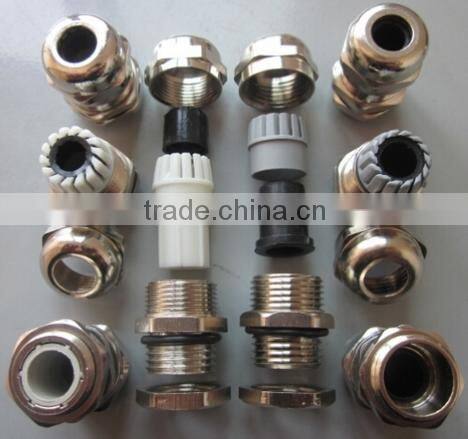

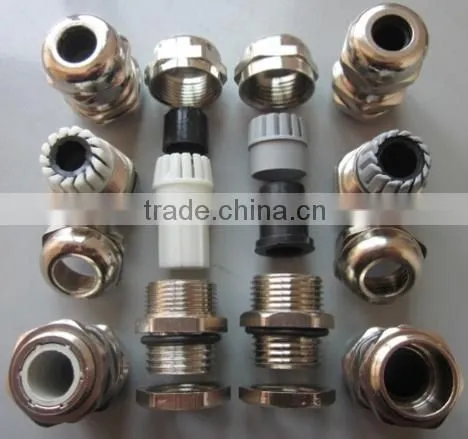

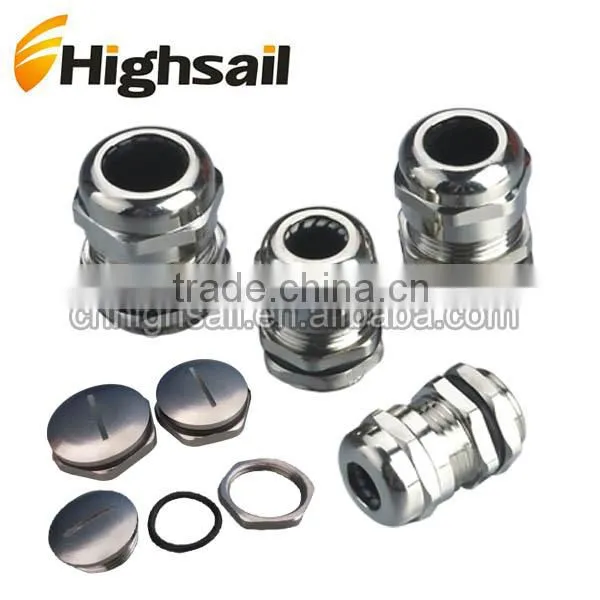

brass compression cable gland
we can produce various cable glands and all materials are available,
such as stainless steel 304/316/316L,nickel plated brass etc;
Explosion-proof / Marine / BW / EMC / Multiple Holes Cable Gland.
| 1.Material |
Lock Nut,Main Body and Sealing Nut are made of Nickel Plated Brass;Washer and Seal are made of Nitrile butadiene rubber(NBR);Clamping is made of Nylon PA.
|
| 2.Thread Type | PG;M;NPT;MG;G. |
| 3.Size Range | PG7-PG63;M12-M100;NPT3/8''-NPT''11/2'';MG12A-MG63A;G1/4-G3. |
| 4.Thread Length | Long thread / Short thread. |
| 5.Color | Silvery. |
| 6.Authentication: | CE;RoHS;SGS;IP68. |
| 7.Waterproof Degree | IP68(Thread position with washer). |
| 8.Connection Thread Norms | EN60423 / DIN40430. |
| 9.Mould Feature |
Prevent slide design provides superior antivibration protection, ensures a firm grip on the cable. |
| 10.Samples | Available;Free sample for your testing. |
| 11.Quality Control | All goods will be 100% inspected before dispatching. |
| 12.R&D Ability | OEM available,open new molds according to your samples or drawings. |
1.PG Series Cable Gland Technical Parameters.
RE:M / NPT / MG / G Series technical parameters,please feel free to consulting me.
| Item | Cable Range | Main Body | Thread O.D | Thread Length | Pack | Highsail NO. |
| (mm) | H (mm) | AG(mm) | GL (mm) | PCS/Bag | ||
| PG7 | 3-6.5 | 19 | 12.5 | 7 | 100 | B0707 |
| PG9 | 4-8 | 20 | 15.2 | 8 | 100 | B0908 |
| PG11 | 5-10 | 21 | 18.6 | 8 | 100 | B1110 |
| PG13.5 | 6-12 | 22 | 20.4 | 8 | 100 | B1312 |
| PG16 | 10-14 | 23 | 22.5 | 10 | 50 | B1614 |
| PG19 | 10-14 | 25 | 25 | 10 | 50 | B1914 |
| PG21 | 13-18 | 27 | 28.3 | 10 | 50 | B2118 |
| PG25 | 15-22 | 29 | 30 | 12 | 25 | B2522 |
| PG29 | 18-25 | 31 | 37 | 12 | 20 | B2925 |
| PG36 | 24-33 | 37 | 47 | 12 | 12 | B3633 |
| PG42 | 32-38 | 38 | 54 | 16 | 9 | B4238 |
| PG48 | 37-44 | 38 | 59.3 | 16 | 1 | B4844 |
| PG63 | 42-52 | 42 | 72 | 23 | 1 | B6352 |
| 1.Packaging |
(1)Interior Packaging:10/20/50/100pcs per polybag with neutral label or customized (2)External Carton:44*43*36cm;52*33*48cm;42*36*25cm;37*26.5*18.5cm or customized |
| 2.Transportation |
(1)By sea,by air,or by express(TNT,Fedex,UPS,DHL,Aramex,EMS etc); (2)We will do best to get good freight cost for you. |
| 3.Payment Terms | T/T, Paypal,Western Union,L/C,Escow |
| 4.Delivery Time | 10 days within 100000pcs.According to your order quantity. |
| 5.Company Type | Factory and trade integration,years of export experience; |
