Brass Chromiun Planted JIS Marine Cable Gland
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Highsail or OEM
Model Number:
JIS TJ TH TG type
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Class A Nylon RoHS Cable GlandUS$ 0.046 - 1.35MOQ: 100 Pieces -
IP54 Soldiered TH Marine Cable GlandNegotiableMOQ: 50 Pieces
-
Nylon IP68 MG Cable GlandUS$ 0.068 - 0.12MOQ: 100 Pieces
-
VDE Confirmed Pg16 Length Brass Cable GlandUS$ 0.3 - 45MOQ: 100 Pieces
-
Nylon PA6 Strain Relief Cable GlandUS$ 0.029 - 0.9MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
Highsail or OEM
Model Number
JIS TJ TH TG type
Protection Level
Other, IP54
Size
JIS10-JIS75
Material
Other, Brass or Stainless Steel
Specifications
Marine Cable Gland1.Brass or Stainless Steel
2.Entry Thread:PF
3.JIS TJ TH TG type
4.Factory/OEM
Brass Chromiun Planted JIS Marine Cable Gland
Product Description

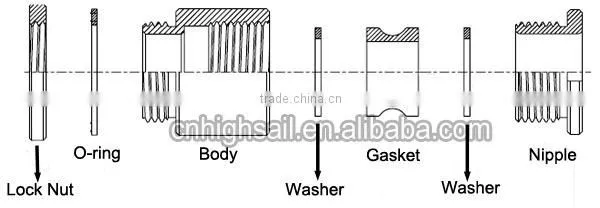

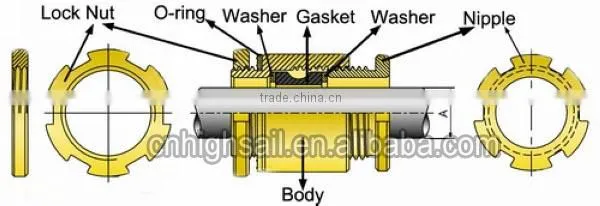

| 1.Material | You can select the material,Lock Nut,Body,Washer,Nipple are made of stainless steel or nickel plated brass or chromium planted brass;O-ring and Gasket are made of EPDM or NBR. |
| 2.Thread Type | JIS / TJ / TH / TG available |
| 3.Size Range | JIS10-JIS75 / TJ8-TJ58 / TH8-TH58 / TG8-TG58 available |
| 4.Entry Thread | PF |
| 5.Application | For use all types of unarmoured cables |
| 6.Waterproof Degree | IP54(Thread position with O-ring) |
| 7.Thread Length | Long thread / Short thread |
| 8.Samples | Available |
| 9.Quality Control | All goods will be 100% inspected before dispatching |
| 10.R&D Ability | OEM available,open new molds according to your samples or drawings. |
Technical Parameters
JIS Series Marine Cable Gland Technical Parameters.
RE:TJ/TH/TG Series technical parameters,please feel free to consulting me.
Three kinds of gasket are available such as A/B/C type depending on cable O/D.
| Size | Thread PF | Gasket Type | Cable Range | Thread length | Entry hole size |
| mm | mm | mm | |||
| JIS-10 | 3/8" | A | 6-7 | 11 | 18 |
| B | 7-8 | ||||
| JIS-15 | 1/2" | A | 8-9 | 11 | 22 |
| B | 9-10 | ||||
| C | 9-11 | ||||
| JIS-20 | 3/4" | A | 11-12 | 11 | 27 |
| B | 12-13 | ||||
| C | 12-15 | ||||
| JIS-25 | 1" | A | 15-16 | 11 | 34 |
| B | 16-18 | ||||
| C | 16-20 | ||||
| JIS-30 | 1-1/4" | A | 20-22 | 12 | 43 |
| B | 22-24 | ||||
| C | 22-26 | ||||
| JIS-35 | 1-1/2" | A | 26-28 | 12 | 49 |
| B | 28-30 | ||||
| C | 26-30 | ||||
| JIS40 | 1-1/2" | A | 30-32 | ||
| B | 32-34 | ||||
| C | 30-34 | ||||
| JIS-45 | 2" | A | 34-36 | 12 | 61 |
| B | 36-38 | ||||
| C | 36-40 | ||||
| JIS-50 | 2" | A | 40-42 | ||
| B | 42-44 | ||||
| C | 40-44 | ||||
| JIS-55 | 2-1/2" | A | 44-46 | 12 | 76 |
| B | 46-48 | ||||
| C | 46-50 | ||||
| JIS-60 | 2-1/2" | A | 50-52 | ||
| B | 52-54 | ||||
| C | 52-56 | ||||
| JIS-65 | 3" | A | 56-58 | 14 | 89 |
| B | 58-60 | ||||
| JIS-70 | 3" | A | 60-62 | ||
| B | 62-64 | ||||
| JIS-75 | 3" | A | 64-66 | ||
| B | 66-70 |
Production Equipment
| 1.Packaging | (1)Interior Packaging:1/5/10/20/50/100pcs per polybag with neutral label or custom design.(2)External Carton:37*27*18cm or custom design. |
| 2.Transportation | (1)By sea,by air,or by express(TNT,Fedex,UPS,DHL,Aramex,EMS etc);(2)We will do best to get good freight cost for you. |
| 3.Payment Terms | T/T, Paypal,Western Union,L/C,Escow |
| 4.Delivery Time | According to your order quantity,10 days within 20000pcs in general. |
| 5.Company Type | Factory and trade integration,years of export experience; |
