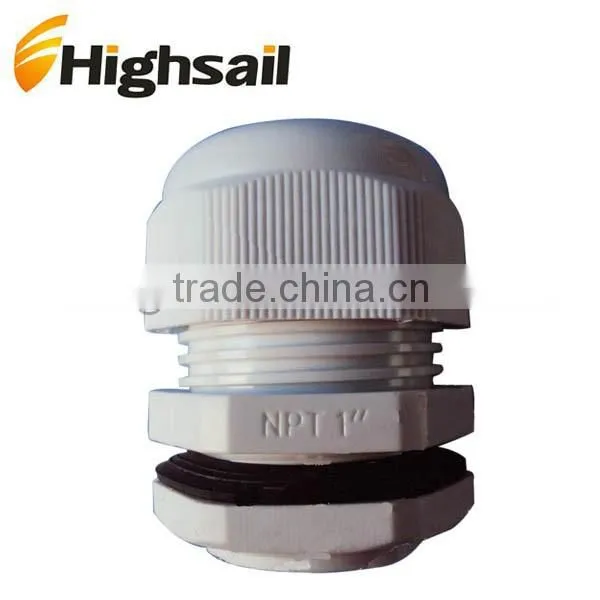

Nylon MG NPT Cable Gland

Name: Nylon MG NPT Cable Gland
Brand: Highsail or OEM or Neutral
SKU: 129677363
Availability: InStock

US$ 0.029 - 0.9 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Highsail or OEM or Neutral

Model Number:

NPT / MG / PG / M / G

Yueqing Highsail Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Highsail or OEM or Neutral

Model Number NPT / MG / PG / M / G

Protection Level IP68

Size MG12A-MG63A / NPT3/8"-NPT1"

Material Nylon

Specifications

MG NPT Cable Gland
1.PG;M;NPT;MG;
2.CE;RoHS;SGS;IP68;UL94V-0;
3.Black,Light grey,and others;
4.Free Samples/OEM/Factory.

MG NPT Cable Gland

Product Description

1.Material	Lock Nut,Main Body and Sealing Nut are made from Nylon PA66; Washer and Seal are made from EPDM or Nitrile butadiene rubber(NBR).
2.Thread Type	PG;M;NPT;MG;G.
3.Size Range	PG7-PG63;M12-M63;NPT3/8''-NPT''11/2'';MG12A-MG63A;G1/4-G3.
4.Thread Length Selection	Long thread type / Short thread type.
5.Fire Rating	UL94V-2;UL94V-0(optional).
6.Authentication	CE;RoHS;SGS.
7.Waterproof Degree	IP68(Thread position with washer).
8.Operating Temperature	Static state from -40°C (-40°F) to 100°C(212 °F), Short-term to 120°C (248 °F).
9.Color	Black and Light Grey(RAL7035) in normal,other colors can be customized.
10.Connection Thread Norms	EN60423 / DIN40430 Nylon Cable Gland.
11.Mould Feature	Prevent slide design provides superior antivibration protection,ensures a firm grip on the cable.
12.Sample	Free sample for your testing.
13.MOQ	Small order can be accepted.
14.Quality Control	All goods will be 100% inspected before dispatching.
15.Delivery Time	Enough stock and strong production capacity ensure timely delivery.
16.R&D Ability	OEM available,open new molds according to your samples or drawings.

Technical Parameters

1. MG NPT Cable Gland Technical Parameters.Nylon Cable Gland make from nylon pa66

RE:M Series;PG Series;G Series technical parameters,please feel free to consulting me.

Item	Cable Range	Main Body	Thread O.D	Thread Length	Highsail NO.
Item	(mm)	H (mm)	AG(mm)	GL (mm)	Black	Light Grey
NPT3/8"	4-8	26	17	15	N3808B	N3808L
NPT3/8"	2-6	26	17	15	N3806B	N3806L
NPT1/2"	6-12	30	21.2	13	N1212B	N1212L
NPT1/2"	5-9	30	21.2	13	N1209B	N1209L
NPT3/4"	13-18	37	26.2	15	N3418B	N3418L
NPT3/4"	9-16	37	26.2	15	N3416B	N3416L
NPT1"	18-25	40	33.3	16	N0125B	N0125L
NPT1"	13-20	40	33.3	16	N0120B	N0120L

Packaging & Shipping

1.Packaging	(1)Interior Packaging:10/20/50/100pcs per polybag with neutral label or customized (2)External Carton:444336cm;523348cm;423625cm;3726.518.5cm or customized
2.Transportation	(1)By sea,by air,or by express(TNT,Fedex,UPS,DHL,Aramex,EMS etc); (2)We will do best to get good freight cost for you.
3.Payment Terms	T/T, Paypal,Western Union,L/C,Escow
4.Delivery Time	10 days within 100000pcs.According to your order quantity.
5.Company Type	Factory and trade integration,years of export experience;
