Usage:The mass process heat-treatment of machine parts,heating,normalizing,annealing and quenching,carburizing and nitriding in protect atmosphere.

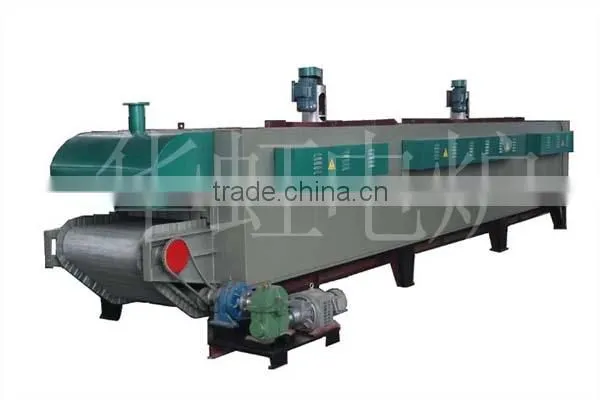

Structure Instruction:The line type mesh furnace formed by mesh belt,furnace sheel,lining,washing tank,strong fan,automatic control system,etc.
Features:
1.The line type mesh furnace main used for mass process of small machine parts,such as:standard parts,bearings, chains, screws, needles,etc.
2.The furnace could achieve the whole heat treatment in one production,such as:heating,normalizing,annealing and quenching,carburizing and nitriding in protect atmosphere.
3.The lining use the full-fiber refractory .This kind of refractory material is lighter and more effective.
4.The strong fan could make strong wind to make the temperature uniformity in the lining.
5.The automatic control system make the producion easier and more economical.
| Furnace Model | RCW-25 | RCW-35 | RCW-45 | RCW-60 | RCW-90 |
| Temperature(°c) | 600 | 600 | 600 | 600 | 600 |
| Dimension(mm) | 3000X400X120 | 4000X400X120 | 3900X600X120 | 5000X600X120 | 4700X800X120 |
| Power(Kw) | 25 | 35 | 45 | 60 | 90 |
| Production(Kg/h) | 45 | 60 | 150 | 200 | 300 |
