RG59/RG6/CAT5E with power cable Siamese cable for CCTV camera
Detailed Features:
1) Coaxial Cable with Other Cable

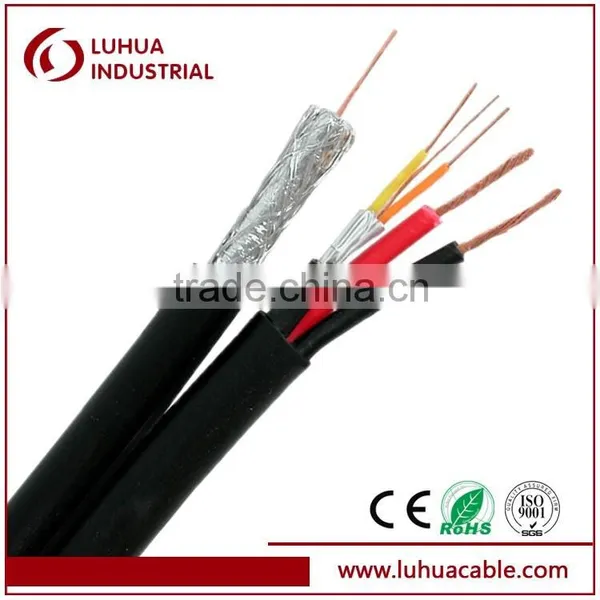

Coaxial Cable (RG 6, RG 59) +Combined With 2 core,4 core Power Cable
Coaxial Cable (RG 6, RG 59) +Combined with 2 core,4 core Power cable
2) Lan Cable with Other Cable

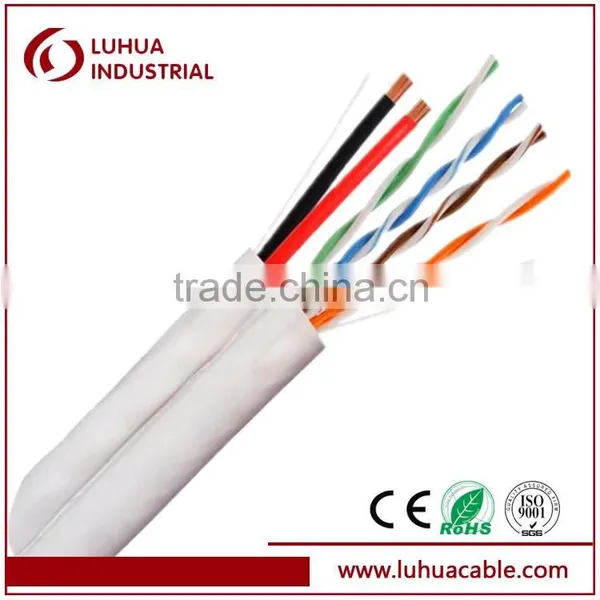

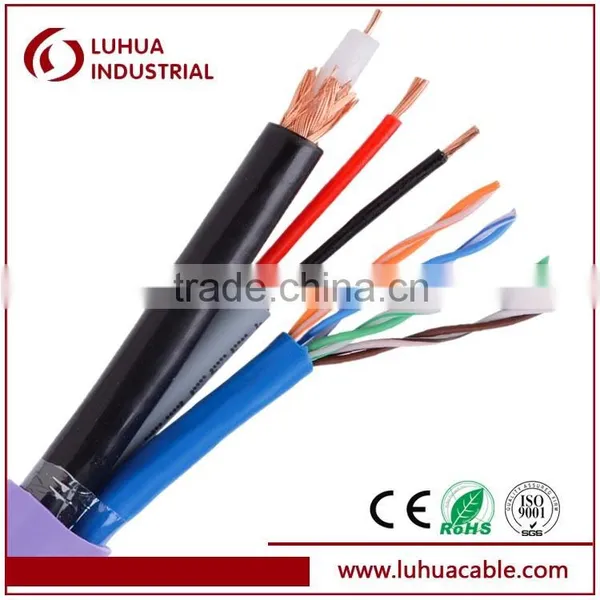

CAT 5e Combined With Coaxial Cable (cat5e+RG6, cat5e+RG59)
CAT 5e Combined With Power Cable (cat5e+2x0.5 or cat5e+2x0.75mm sq.) ]
Customers' specifications are wellcomed
Structure:
1. Coaxial: Solid or stranded Pure Copper100%, CCA or CCS, 75 ohm
2. Shield: Aluminum Foil 100%+braiding 128/0.12mm 95% cverage
3. Insulation: PE or Foam PE insulation
4. Jacket: PVC
5. Color: Black, white or any color

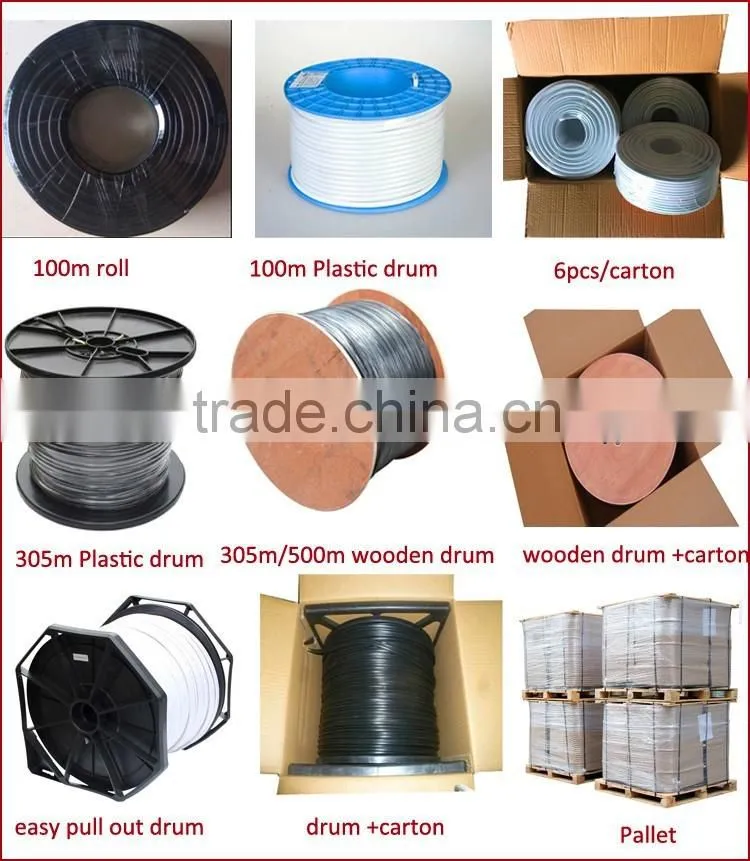

6. Length: 100M,200m,300M,500M wooden reel.
7.Power wire: 2C/18AWG : 2C*0.5mm sq. or 2C*0.75mm2 Red and Blak power cord
8.Color: Black,White or other color
Data sheet
1), Dielectric Strength: Conductor to Shield: 2000VDC
2), Impedance: 75+2 Ohm
3), Capacitance: 16.0pF. /Ft. Nom.
4), Velocity of Propagation: 84%
5), DCR: Conductor: 10.5 Ohms/1000Ft. (Nom. ) Coax
6), Return Loss: 20dB min (5-860MHz)
7), 15dB min(860-2500MHz)
8), SRL: 20dB (10-350MHz) 100% Swept Tested
1. Your inquiry will be replied in 24hours.
2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.
3. OEM&ODM, any your customized cables we can help you to design and put into product .
4. Sample you need so that to test our company 's ability, we are so glad to free offer it.
5. Protection of your sales area, ideas of design and all your private information is our dutY.
Hangzhou LinAn Luhua Industrial Co.,LTD, was established in 1993, situated in Linglong Industrial Zone,LinAn , Zhejiang province , China. We had 10 people and devoted to coaxial cable.
Since we enter the communication cable industry,we are always promoting the development of the
enterprise from technical , service and the honeys operation, and always keep developing the new cable products to make sure that we can meet the customer's requirements, and till now, we have three workshops for the COAXIAL CABLE, LAN CABLE, and FIBER CABLE, and we can make:
- Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
- Coaxial cable (RG series,JIS series,D-FB series RF Cables)
- Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
Why should I choose Luhua Industrial ?
- We Make it Personal – No automated phone systems, an individual sales representative assigned to you and a 'customize this' mentality means you receive the attention and service you deserve.
- ISO 9001 Certified – You can rest easy about the quality of our products. We are ISO 9001 Certified, and will provide any certifications you need about the quality of our products. In addition to ISO quality, many of our products are RoHS and REACH compliant.
- Custom cable design & manudacturing sevices--Receive the products you need exactly how you need them, pleasured to provide all kind of solution to meet your exact demand of the commnunication system.
- Product and technical—Meeting the latest technological advancement.
