Specifications
digital multmedia cable RG6 coaxial cable +CAT5e hybird cable1.CE ISO RoHS ETL SGS
2.Quick Delivery
3.Stable High Qualit
Products Description

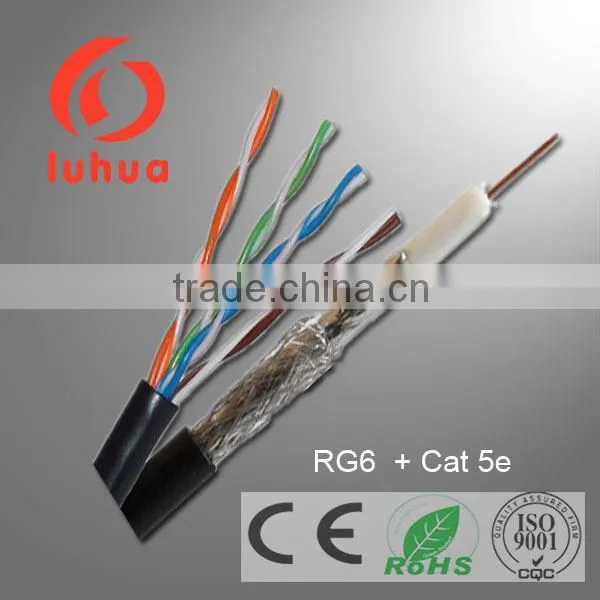

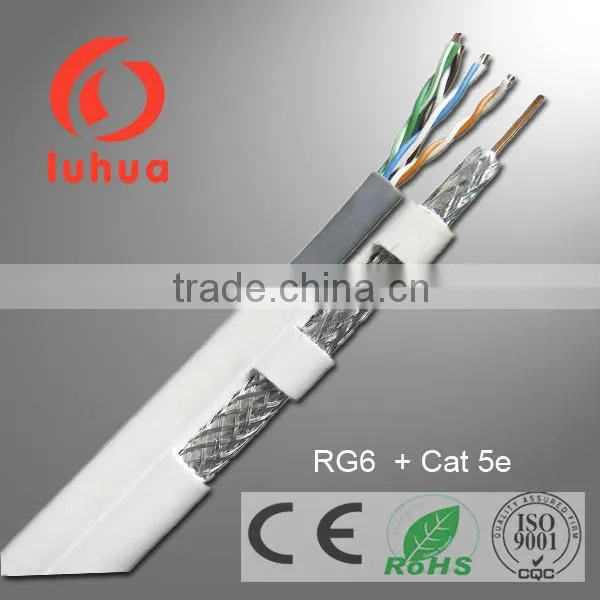

RG6 + CAT 5e
Cable construction (mm) | |||
Cable construction |
Nominal Cable OD |
Nominal CAT 5e OD |
Nominal RG6 OD |
RG6 + CAT 5e |
12.6 |
5.1 |
6.9 |
QS RG6 + CAT 5e |
13.0 |
5.1 |
7.3 |
2 * RG6 + CAT 5e |
20.1 |
5.1 |
6.9 |
2 * QS RG6 + CAT 5e |
20.9 |
5.1 |
7.3 |

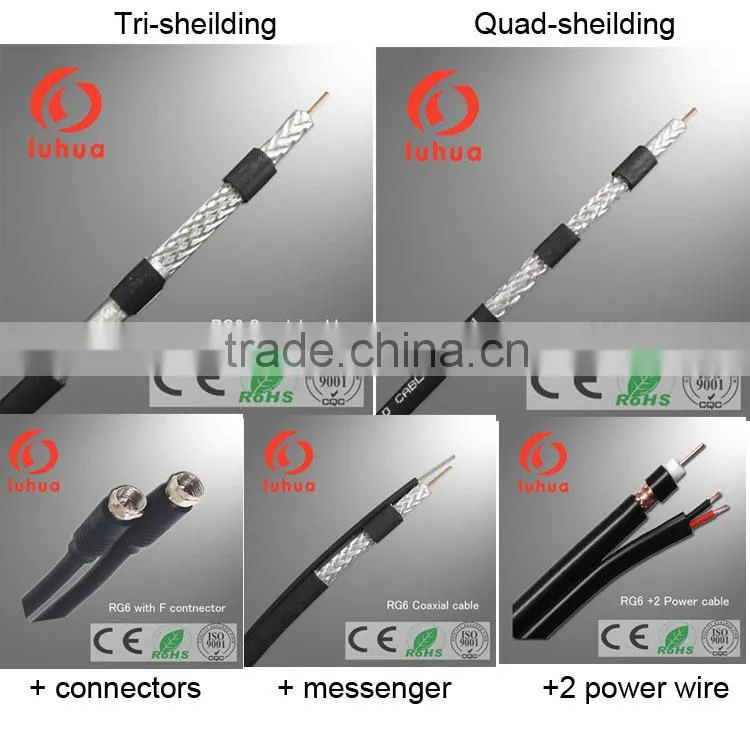

RG6 Series Drop Coaxial cable specifications
Physical Specifications
Nominal Dimensions |
Standard
|
Tri-shielding
|
Quad-shielding
|
Conductor |
1.02mm( 0.0403 in) |
1.02mm( 0.0403 in) |
1.02mm( 0.0403 in) |
Dielectric |
4.57mm(0.180 in) |
4.57mm(0.180 in) |
4.57mm(0.180 in) |
Shielding 1 |
TC /Pet foil |
Bonded TC/Pet foil |
Bonded TC/Pet foil |
Shielding 2 |
0.12mm*64 (40% coverage) |
0.12mm*80 (60% coverage) |
0.12mm*144 (90% coverage) |
Shielding 3 |
- |
TC/Pet foil |
TC /Pet/Al foil |
Shielding 4 |
- |
|
0.12mm*64 ( 40% coverage) |
Jacket |
6.91mm( 0.272 in) |
7.06mm( 0.278 in) |
7.62mm( 0.300 in) |
Messenger |
1.3mm (0.051 in) Zinc plated steel |
||
Mechanical Characteristics
Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N
Electrical Characteristics
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Attenuation [@68F.(20 Degree centigrade)]
Frequency Mhz |
dB/100 ft |
dB/100 M |
5 |
0.58 |
1.90 |
55 |
1.60 |
5.25 |
211 |
3.05 |
10.00 |
300 |
3.55 |
11.64 |
400 |
4.15 |
13.61 |
450 |
4.40 |
14.43 |
550 |
4.90 |
16.08 |
750 |
5.65 |
18.54 |
865 |
6.10 |
20.01 |
1000 |
6.55 |
21.49 |
DETIALED SPECIFICATION ABOUT CAT5
specifaications :
1) 4P*0.50mm BC Conductor+0.91mm PE Insulation+5.1mm PVC Jacket
2) Customers' specifications are welcomed.
details:
Conductor:
Material:Bare copper Number of pairs:4pair AWG:24awg Conductor diameter:0.515±0.003mm
Insulation:
Material:HDPE and FRPE Diameter:1.02±0.005mm
Average thickness:0.212mm Minimum point thikness:0.2095mm
First screen:aluminum mylar shield(superposition rate:25%)
Overall screen:80/0.1mm TC braid shied(coverage:60%)
Braiding shield(48/64/96/112x0.12mm or 0.15mm or 0.16mm,braid material,AL-MG,CCA,CCS,copper or tinned copper for braid),FR/PVC or LSOH jacket
Jacket rip cord:optional
Sheath:
Material:PVC or LSOH Nominal diameter:6.0±0.2mm Average thickness:0.50mm
Operating temperature:-20 to 75°C Minimum bend radius (install):(8*OD)
Flame test:CMX,CM,and IEC60332-1 Reference standard:TIA/EIA568B and IEC/ISO11801
Application: 10 Base-T /100 Base-TX
100VG-AnyLan /1000 Base-T(Gigabit Ethernet)
155 Mbps ATM /622 Mbps ATM
RG6
CAT 5e
Production Progress
Paking & Shipping
1.305m/wooden reel/carton box
2.500/wooden reel/carton box
or according to the customer request
Our Service
Sample for free
1. Your inquiry will be replied in 24hours.
2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.
3. OEM&ODM, any your customized cables we can help you to design and put into product .
4. Sample you need so that to test our company 's ability, we are so glad to free offer it.
5. Protection of your sales area, ideas of design and all your private information is our duty
