GYTY fiber optical cable for outdoor
- 6000 Kilometer / Kilometers per Month
- SHANGHAI or NINGBO
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | LUHUA or OEM | Model Number: | GYTY Fiber Optic Cable |
| Type: | Cat 1 |
Product Description

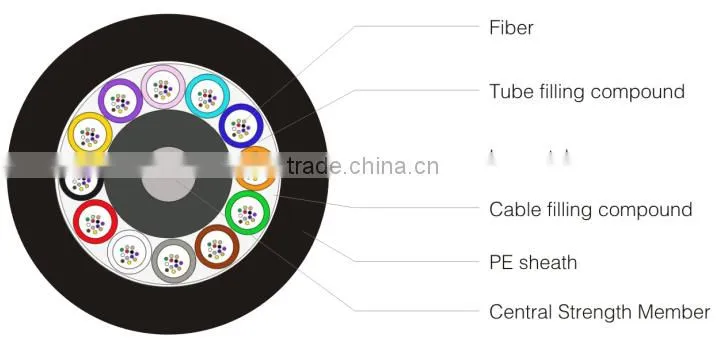

GYTY CABLE
Technical characteristics
Very strict material and manufacturing control guarantee the cable can work stably for more than 30 years.
Total cross-section water-resistant structure make cable have an excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
The centeral member adopted corrosion resistant, high young’s modulus phosphatic steel wire.
Type | Loose Tube No. | Fillers NO. | Sheath thickness (mm) | Sheath thickness (mm) | Optical cable | Max tensile load (N) | |
Outer Dia (mm) | Weight (kg/km) PE/LSZH | ||||||
GXTY-4xxx | 4 | 1 | 5 | 1.8 | 9.7 | -- | 2000 |
GXTY-8xxx | 8 | 2 | 4 | 1.8 | 9.7 | -- | 2000 |
GXTY-12xxx | 12 | 2 | 4 | 1.8 | 9.7 | -- | 2000 |
GXTY-16xxx | 16 | 3 | 3 | 1.8 | 9.7 | -- | 2000 |
GXTY-24xxx | 24 | 4 | 2 | 1.8 | 9.7 | -- | 2000 |
GXTY-36xxx | 36 | 6 | / | 1.8 | 9.7 | -- | 2000 |
GXTY-48xxx | 48 | 6 | / | 1.8 | 10.1 | -- | 2000 |
GXTY-56xxx | 56 | 6 | / | 1.8 | 10.5 | -- | 2000 |
GXTY-72xxx | 72 | 6 | / | 1.8 | 10.5 | -- | 2000 |
Cable performance | |
Crush resistance | 2000N/100mm |
Bending radius | Short time 20D |
Long time 10D | |
Temperature range | |
Transport/storage | -40~+60 ℃ |
Installation | -40~+60 ℃ |
Operation | -40~+60 ℃ |
Ref. Standard: IEC 60794-3-10/ IEC 60304
Location
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang
province , China.
Strength
Our company is a capable enterprise with more than15 years experiences both in the production
and the management system, We have the most advanced testing equipment, and got some
authority certificate of this field,such as the ISO-9001, CE, ROSHS, all of these contribute
to insure that we can provide the products with high quality.
Major Product
Our cable products including:
Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
Coaxial cable (RG series,JIS series,D-FB series RF Cables)
Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
Contact Us
- Zhejiang Luhua Industrial Co., Ltd.
- Contact nameEric King
- Phone86-571-63819766
- AddressNo. 598, Linglong Industrial Zone, Lin'an
