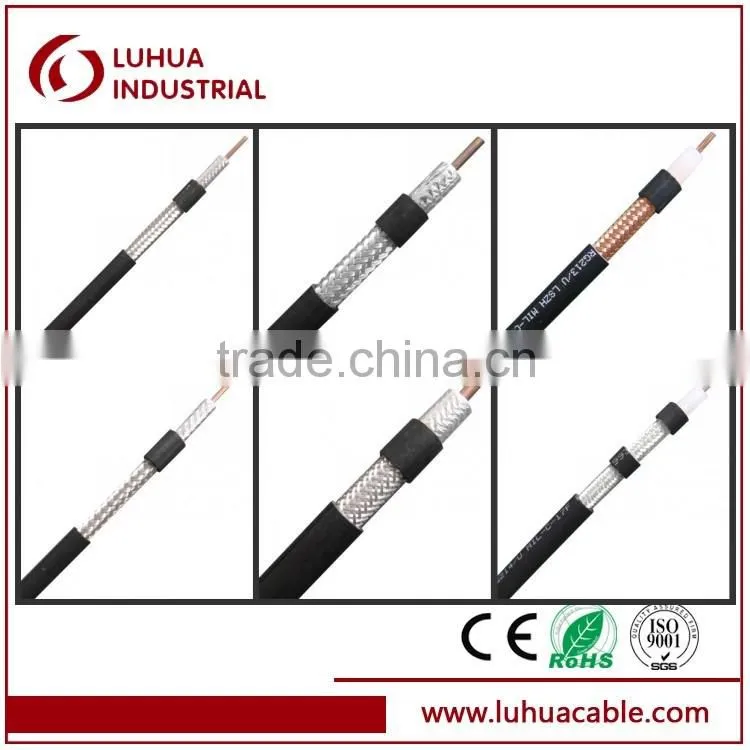

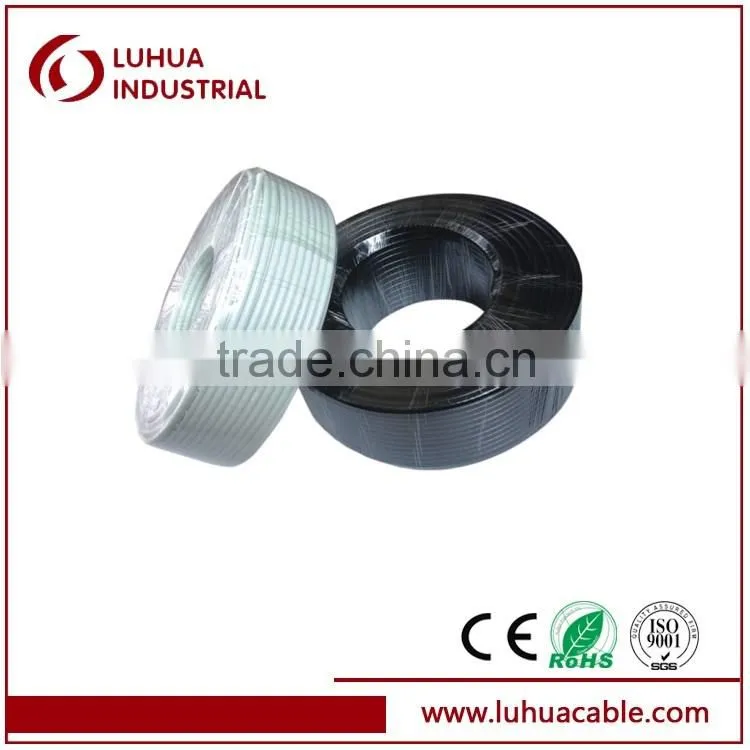

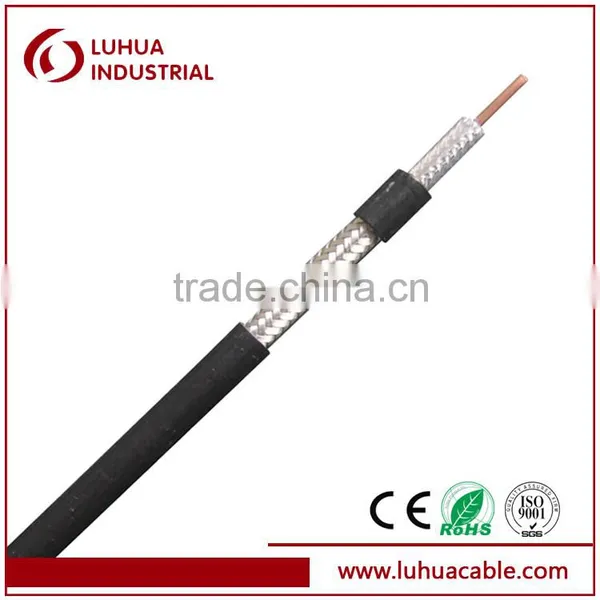

50 OHM Standard LMR200 Coaxial cable
- 6000 Kilometer / Kilometers per Month
- Ningbo or Shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | OEM | Model Number: | LMR 200 cable |
Type: | Coaxial | Number of Conductors: | 1 |
Product Description
LMR200 Series Coaxial cable specifications
Physical Specifications
Nominal Dimensions | LMR 200 mm |
Conductor | 1.12 |
Dielectric | 2.95 |
Shielding | 95% braiding coverage |
Jacket | 4.95 |
Electrical Characteristics
Impedance ( Ohms) 50±3
Nominal Capacitance (pF/m) 67
Velocity of Propagation 66%
Structural return loss (Db)≥ VHF 23
UHF 20
Attenuation [@68F.(20Degree centigrade)]
Frequency Mhz | dB/100M |
30 | 5.8 |
50 | 7.5 |
150 | 13.1 |
220 | 15.9 |
450 | 22.8 |
900 | 32.6 |
1500 | 42.40 |
2000 | 49.30 |
Contact Us
- Zhejiang Luhua Industrial Co., Ltd.
- Contact nameEric King
- Phone86-571-63819766
- AddressNo. 598, Linglong Industrial Zone, Lin'an
