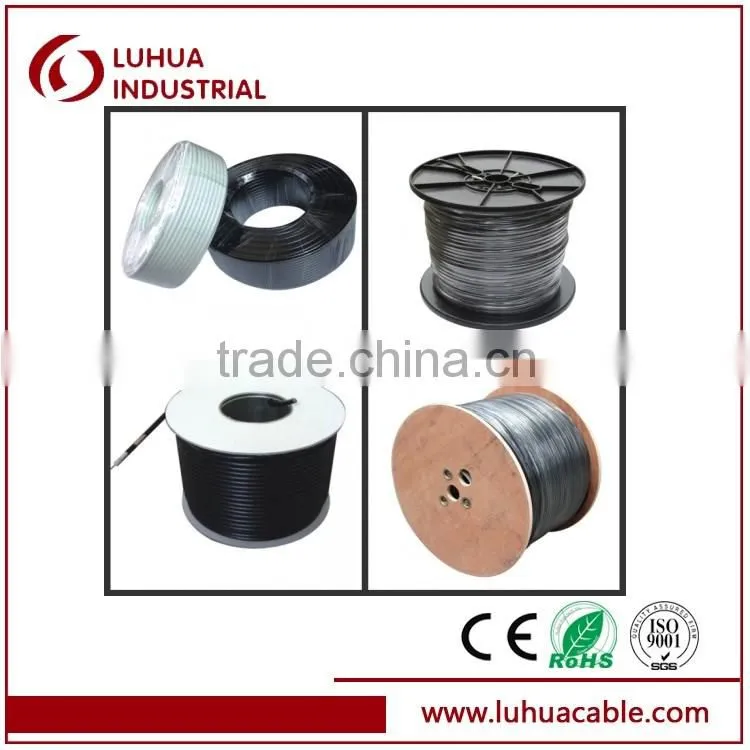

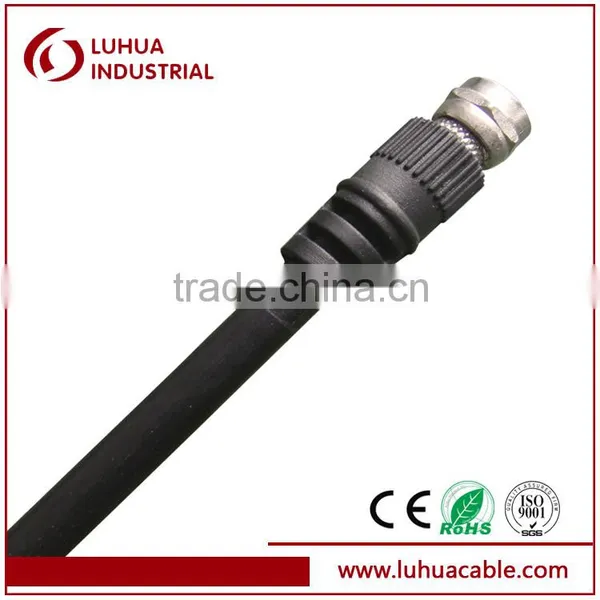

Help CenterRG6 With Connector for Satallite Dish
Related Products
-
RF Coaxial Cable LMR400 Coaxial CableUS$ 300 - 450MOQ: 30 Pieces -
MATV RG11 Drop Coaxial CableUS$ 45 - 65MOQ: 100 Pieces
-
CCTV System RG6 Tri-shielding Coaxial CableUS$ 6 - 8MOQ: 100 Pieces
-
RG59 Jelly Filled Cable for Underground,buried CableUS$ 0.08 - 0.28MOQ: 50000 Meters
-
High Quality and Low Loss Coaxial Cable RG58 SpecificationsUS$ 0.08 - 0.38MOQ: 50000 Kilometers
RG6 Series Drop Coaxial cable specifications
Physical Specifications
Nominal Dimensions | Standard
| Tri-shielding
| Quad-shielding
|
Conductor | 1.02mm( 0.0403 in) | 1.02mm( 0.0403 in) | 1.02mm( 0.0403 in) |
Dielectric | 4.57mm(0.180 in) | 4.57mm(0.180 in) | 4.57mm(0.180 in) |
Shielding 1 | Al /Pet foil | Bonded Al /Pet foil | Bonded Al /Pet foil |
Shielding 2 | 0.12mm*64 (40% coverage) | 0.12mm*80 (60% coverage) | 0.12mm*144 (90% coverage) |
Shielding 3 | - | Al /Pet foil | Al /Pet/Al foil |
Shielding 4 | - |
| 0.12mm*64 ( 40% coverage) |
Jacket | 6.91mm( 0.272 in) | 7.06mm( 0.278 in) | 7.62mm( 0.300 in) |
Messenger | 1.3mm (0.051 in) Zinc plated steel | ||
Mechanical Characteristics
Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N
Electrical Characteristics
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Attenuation [@68F.(20 Degree centigrade)]
Frequency Mhz | dB/100 ft | dB/100 M |
5 | 0.58 | 1.90 |
55 | 1.60 | 5.25 |
211 | 3.05 | 10.00 |
300 | 3.55 | 11.64 |
400 | 4.15 | 13.61 |
450 | 4.40 | 14.43 |
550 | 4.90 | 16.08 |
750 | 5.65 | 18.54 |
865 | 6.10 | 20.01 |
1000 | 6.55 | 21.49 |
