MAX1980E MAX1980 Quick-PWM Slave Controller With Driver Disable for Multiphase, DC-DC Converter

Name: MAX1980E MAX1980 Quick-PWM Slave Controller With Driver Disable for Multiphase, DC-DC Converter
Brand: MAXIM
SKU: 129627761

MAX1980E MAX1980 Quick-PWM Slave Controller With Driver Disable for Multiphase, DC-DC Converter thumbnail-1

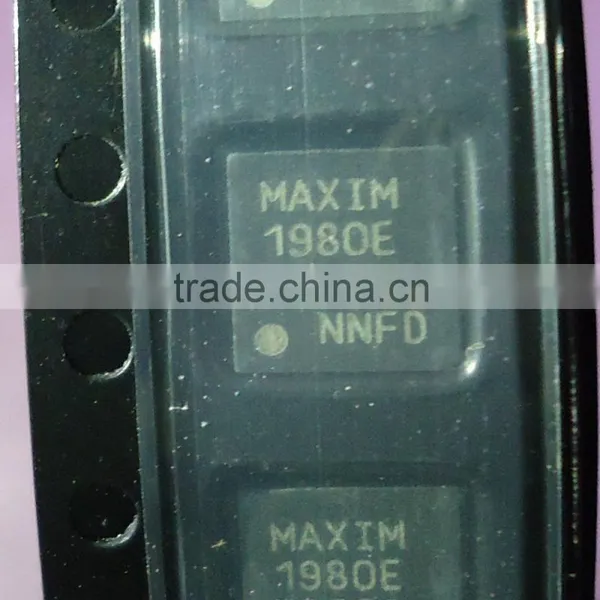

MAX1980E MAX1980 Quick-PWM Slave Controller With Driver Disable for Multiphase, DC-DC Converter photo-1

US$ 0.5 - 2 MOQ: 1 Piece

Key Specifications

Get Latest Price

D/C:

10+

Package:

QFN

Model Number:

MAX1980E

Contact Supplier Request Quote Chat Now

Shenzhen Visen Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SZ/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

D/C 10+

Package QFN

Model Number MAX1980E

Type Drive IC

Brand Name MAXIM

Place of Origin Taiwan, China

Product Description

The MAX1980 step-down slave controller is intended for low-voltage, high-current, multiphase DC-DC applications. The MAX1980 slave controller can be combined with any of Maxim's Quick-PWM™ step-down controllers to form a multiphase DC-DC converter. Existing Quick-PWM controllers, such as the MAX1718, function as the master controller, providing accurate output-voltage regulation, fast transient response, and fault protection features. Synchronized to the master's low-side gate driver, the MAX1980 includes the Quick-PWM constant on-time controller, gate drivers for a synchronous rectifier, active current balancing, and precision current-limit circuitry.

The MAX1980 provides the same high-efficiency, ultra-low duty factor capability, and excellent transient response as other Quick-PWM controllers. The MAX1980 differentially senses the inductor currents of both the master and the slave across current-sense resistors. These differential inputs and the adjustable current-limit threshold derived from an external reference allow the slave controller to accurately balance the inductor currents and provide precise current-limit protection. The MAX1980's dual-purpose current-limit input also allows the slave controller to automatically enter a low-power standby mode when the master controller shuts down.

The MAX1980 features a driver-disable mode that forces both gate drivers (DL and DH) low. While the MAX1980's drivers are disabled, the master controller can operate in low-power skip mode, improving light-load efficiency. Additionally, the MAX1980 includes selectable trigger polarity, allowing the slave controller to trigger on the rising (out-of-phase) or falling (in-phase) edge of the master's low-side gate driver. Out-of-phase operation staggers the master and slave's on-times, reducing the input ripple current and consequently the number of input capacitors. The MAX1980 also features a selectable 200kHz/300kHz/550kHz switching frequency. The MAX1980 is available in compact 20-pin 5mm x 5mm QFN and thin QFN packages

Terms

Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.

Packing & Delivery

Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.

Our Services

Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
