Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > MAX1992E MAX1992 Quick-PWM Step-Down Controllers With Inductor Saturation Protect and Dynamic Output Voltages

MAX1992E MAX1992 Quick-PWM Step-Down Controllers With Inductor Saturation Protect and Dynamic Output Voltages

Name: MAX1992E MAX1992 Quick-PWM Step-Down Controllers With Inductor Saturation Protect and Dynamic Output Voltages
Brand: MAXIM
SKU: 129627787

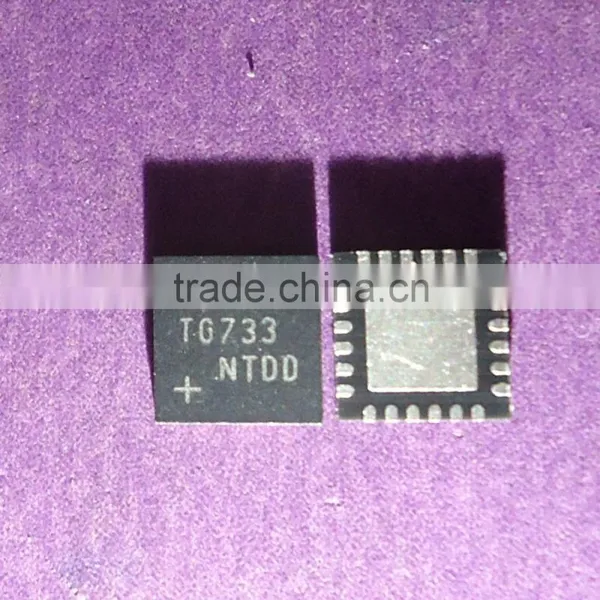

MAX1992E MAX1992 Quick-PWM Step-Down Controllers With Inductor Saturation Protect and Dynamic Output Voltages thumbnail-1

MAX1992E MAX1992 Quick-PWM Step-Down Controllers With Inductor Saturation Protect and Dynamic Output Voltages photo-1

US$ 0.5 - 2 MOQ: 1 Piece

Key Specifications

Get Latest Price

D/C:

10+

Package:

QFN

Model Number:

MAX1992E

Contact Supplier Request Quote Chat Now

Shenzhen Visen Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SZ/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

D/C 10+

Package QFN

Model Number MAX1992E

Type Drive IC

Brand Name MAXIM

Place of Origin Taiwan, China

Product Description

The MAX1992/MAX1993 pulse-width modulation (PWM) controllers provide high-efficiency, excellent transient response, and high DC output accuracy. The devices step down high-voltage batteries to generate low-voltage CPU core or chipset/RAM supplies in notebook computers.

Maxim's proprietary Quick-PWM™ quick-response, constant on-time PWM control scheme handles wide input/output voltage ratios with ease and provides 100ns "instant-on" response to load transients, while maintaining a relatively constant switching frequency. Efficiency is enhanced by the ability to drive very large synchronous-rectifier MOSFETs. Current sensing to ensure reliable overload and inductor saturation protection is available using an external current-sense resistor in series with the output. Alternatively, the controller can sense the current across the synchronous rectifier alone or use lossless inductor sensing for lowest power dissipation.

Single-stage buck conversion allows the MAX1992/MAX1993 to directly step down high-voltage batteries for the highest possible efficiency. Alternatively, two-stage conversion (stepping down from another system supply rail instead of the battery) at the maximum switching frequency allows the minimum possible physical size.

The MAX1992 powers the CPU core, chipset, DRAM, or other supply rails as low as 0.7V. The MAX1993 powers chipsets and graphics processor cores, which require dynamically adjustable output voltages. The MAX1993 provides a tracking input that can be used for active termination buses. The MAX1992/MAX1993 are available in a 24-pin thin QFN package with optional overvoltage and undervoltage protection.

For dual step-down PWM controllers with inductor saturation protection, external reference input voltage, and dynamically selectable output voltages, refer to the MAX1540/MAX1541 data sheet

Terms

Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.

Packing & Delivery

Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.

Our Services

Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
