Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > MAX1999EEI MAX1999 High-Efficiency, Quad Output, Main Power-Supply Controllers for Notebook Computers

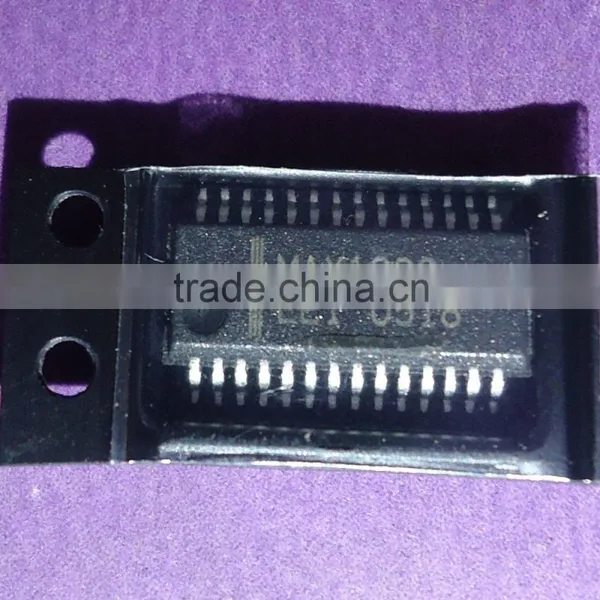

MAX1999EEI MAX1999 High-Efficiency, Quad Output, Main Power-Supply Controllers for Notebook Computers
US$ 0.5 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
D/C:
10+
Package:
SSOP
Model Number:
MAX1999
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MAX8550ETI MAX8550E MAX8550 8550E , Ntegrated DDR Power-S Upply S Olutions for Desktops, Notebooks, and Graphic CardsUS$ 0.5 - 2MOQ: 1 Piece -
MAX8556ETE MAX8556E MAX8556 8556E , 3-Line To 8-Line Decoders/Demultiplexers 20-LCCC -55 to 125US$ 0.5 - 2MOQ: 1 Piece
-
MAX8632E MAX8632 Integrated DDR Power-Supply Solution for Desktops, Notebooks, and Graphic CardsUS$ 0.5 - 2MOQ: 1 Piece
-
MAX8719ETA MAX8719E MAX8719 8719E ALF,High-Voltage, Low-Power Linear Regulators for Notebook ComputersUS$ 0.5 - 3MOQ: 1 Piece
-
MAX8724E MAX8724 Low-Cost Multichemistry Battery ChargersUS$ 0.5 - 2MOQ: 1 Piece
D/C
10+
Package
SSOP
Model Number
MAX1999
Type
Drive IC
Brand Name
MAXIM
Place of Origin
Taiwan, China
Product Description
Product Description
The MAX1777/MAX1977/MAX1999 dual step-down, switch-mode power-supply (SMPS) controllers generate logic-supply voltages in battery-powered systems. The MAX1777/MAX1977/MAX1999 include two pulse-width modulation (PWM) controllers, adjustable from 2V to 5.5V or fixed at 5V and 3.3V. These devices feature two linear regulators providing 5V and 3.3V always-on outputs. Each linear regulator provides up to 100mA output current with automatic linear regulator bootstrapping to the main SMPS outputs. The MAX1777/MAX1977/MAX1999 include on-board power-up sequencing, a power-good (PGOOD) output, digital soft-start, and internal soft-stop output discharge that prevents negative voltages on shutdown.
Maxim's proprietary Quick-PWM™ quick-response, constant on-time PWM control scheme operates without sense resistors and provides 100ns response to load transients while maintaining a relatively constant switching frequency. The unique ultrasonic pulse-skipping mode maintains the switching frequency above 25kHz, which eliminates noise in audio applications. Other features include pulse skipping, which maximizes efficiency in light-load applications, and fixed-frequency PWM mode, which reduces RF interference in sensitive applications.
The MAX1777 features a 200kHz/5V and 300kHz/3.3V SMPS for highest efficiency, while the MAX1977 features a 400kHz/5V and 500kHz/3.3V SMPS for “thin and light” applications. The MAX1999 provides a pin-selectable switching frequency, allowing either 200kHz/300kHz or 400kHz/500kHz operation of the 5V/3.3V SMPSs, respectively. The MAX1777/MAX1977/MAX1999 are available in 28-pin QSOP packages and operate over the extended temperature range (-40°C to +85°C). The MAX1777/ MAX1977/MAX1999 are available in lead-free packages.
Maxim's proprietary Quick-PWM™ quick-response, constant on-time PWM control scheme operates without sense resistors and provides 100ns response to load transients while maintaining a relatively constant switching frequency. The unique ultrasonic pulse-skipping mode maintains the switching frequency above 25kHz, which eliminates noise in audio applications. Other features include pulse skipping, which maximizes efficiency in light-load applications, and fixed-frequency PWM mode, which reduces RF interference in sensitive applications.
The MAX1777 features a 200kHz/5V and 300kHz/3.3V SMPS for highest efficiency, while the MAX1977 features a 400kHz/5V and 500kHz/3.3V SMPS for “thin and light” applications. The MAX1999 provides a pin-selectable switching frequency, allowing either 200kHz/300kHz or 400kHz/500kHz operation of the 5V/3.3V SMPSs, respectively. The MAX1777/MAX1977/MAX1999 are available in 28-pin QSOP packages and operate over the extended temperature range (-40°C to +85°C). The MAX1777/ MAX1977/MAX1999 are available in lead-free packages.
Terms
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packing & Delivery
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Our Services
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
