Phenolic Foam Sandwich Panel Machine with CE

Specifications

phenolic foam sandwich panel machine
1. thickness of pf core sheet: 50,60,80,100,120mm
2. width of sandwich panel:1000mm

Phenolic foam(PF) sandwich panel making machine with color steel facing





Xuelong phenolic foam sandwich panel making machine line is newly research and developed sandwich machine.

Rigid polyfoam sandwich panel with color-steel facing  continuous machine line is used for producing both the  upper and lower layer are  color coated panels with core sheet of anti-combusition polyurethane, polyisocyanurate and phenolic foam.

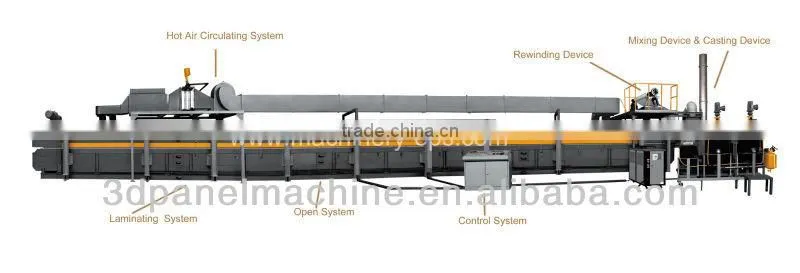

Its operation principle is as follows: Rigid polyfoam raw materials, according to a certain blending ratio, are delivered into mixing head to agitate through metering pump unit on the injection machine and then uniformly injected onto the bottom facing sheet of sandwich panel. After the injection, the bottom facing sheet shall move toward the double-belt conveyors together with panel’s top facing sheet. Between the two conveyors, injected raw material is foamed and hardened into shape. At the end of the line, the formed sandwich panel is cut into preset length by an automatic tracking cutter.

Xuelong phenolic foam sandwich panel making machine/production line can produce the phenolic foam as core sheet and upper and lower layer are color-steel. The main technical parameters as follows,



Phenolic foam sheet  core thickness :50mm,60mm,80mm,100mm,120mm;

Al-Mg-Mn alloys sheet: thickness: 0.3-1.0mm width:1000,1200mm;

Color coated steel sheet:  thickness:0.5-1.0mm width: 1000,1200mm;



Effective width for the phenolic foam sandwich panel: 1000mm;

Length can be any size according to customers' requirements;

Phenolic foam density is 50-65kg/cbm.



The whole phenolic foam sandwich panel making machine/production line production speed: 1-4m/min;

Laminating conveyor length:24m;

Pouring head stirring speed :< 4500r/min;

Pouring head reciprocating speed: <1200mm/s;

Hot air circulating temperature: 60-70°C ;

Max opening height of phenolic foam sandwich panel laminating main machine: 300mm;

Installation power :147kw;

Phenolic resin reactor power: 26kw;

Electric heating system power: 54kw.
