Specifications
-ISO9001:2008;CE-advanced technology from Eur.
-high efficiency,low consumption
-more than 20 years experiences
Phenolic foam sheet making machine/ production line

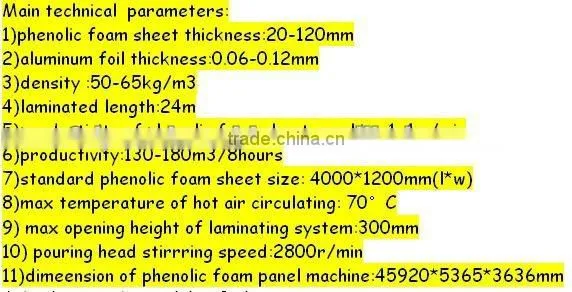

Xuelong phonelic foam sheet making machine/production line can produce the phonelic foam sheet as the middle core and upper and lower side are aluminum foil, nonwovens, paper and so on. The phenolic foam sheet core thickness is:20-120mm, width: 1200mm, length can be any size according to customers' requirements.
A (curing agent)pre-mixing device
B(phenolic resin) pre-mixing device
Low pressure pre-expander (Phenolic resin mixture storage tank and curing agent storage tank)
Phenolic foam sheet making machine/production line-----Laminating coneyor main machine
Locking mechanism on the phenolic foam lamiating coveyor main machine
Reducer on the laminating coneyor main machine to control the opening height of between the upper and lower chain plate
Stroke sensor switch --to control the distance between the upper and lower chain plate
Temperature sensor on the phenolic foam laminating convyor main machine to control the hot air temperature to produce excellent phenolic foam sheet.
Uncoiler------ loading the non-woven fabric for the phenolic foam sheet production
Trimmer : the finished phenolic foam sheet width is 1220mm, after trimming the width will be 1200mm
Auto-tracking cutting machine
Phenolic foam sheet making machine/production line equipment layout
Production workshop
