Phenolic Foam board machine Line ISO9001:2008

Specifications

Phenolic foam production line  / phenolic foam board making machine

Xuelong phonelic foam board making machine/production line can produce the phonelic foam board as the middle core and upper and lower side are aluminum foil, nonwovens, paper and so on. The phenolic foam board  core thickness is:20-120mm, width: 1200mm, length can be any size according to customers' requirements.

Main technical  parameters:

1)phenolic foam board thickness:20-120mm

2)aluminum foil thickness:0.06-0.12mm

3)density :50-65kg/m3

4)laminated length:24m

5)productivity of phenolic foam board  machine:1-4m/min

6)productivity:130-180m3/8hours

7)standard phenolic foam board size: 4000*1200mm(l*w)

8)dimeension of phenolic foam panel machine:45920*5365*3636mm

A (curing agent)pre-mixing device

B(phenolic resin) pre-mixing device

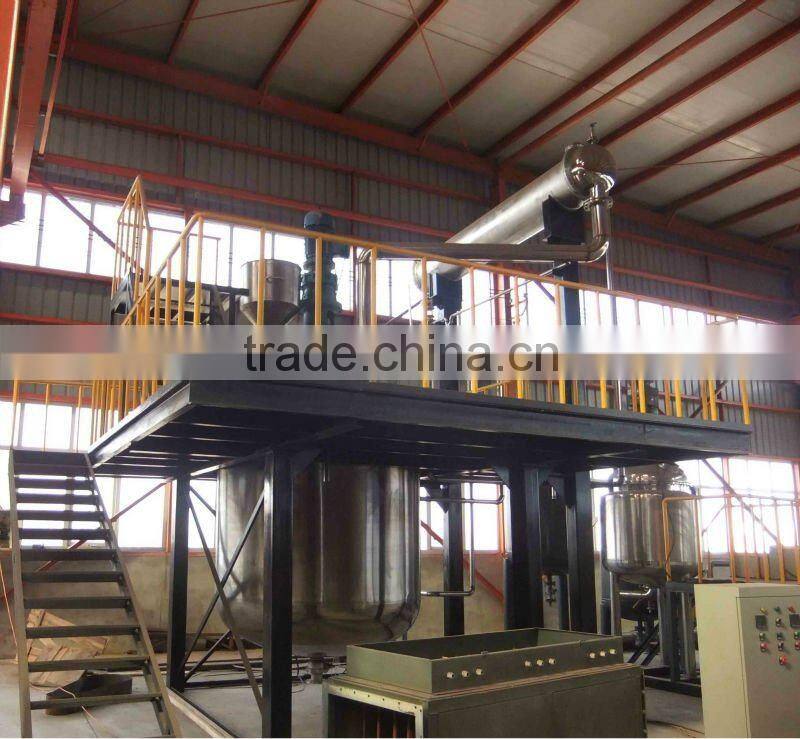

Low pressure pre-expander (Phenolic  resin mixture storage tank and curing agent storage tank)

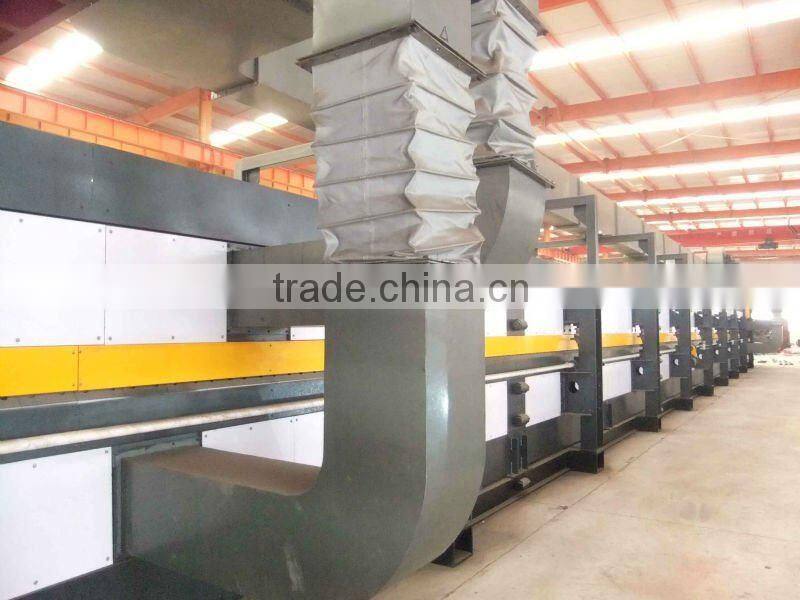

Phenolic foam board making machine/production line-----Laminating coneyor main machine

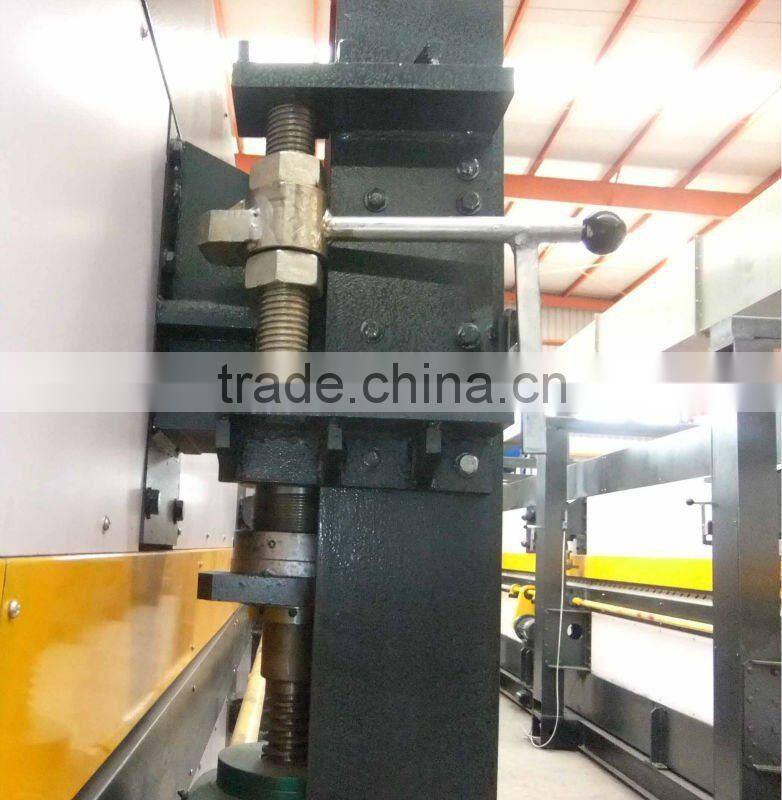

Locking mechanism on the phenolic foam lamiating coveyor main machine

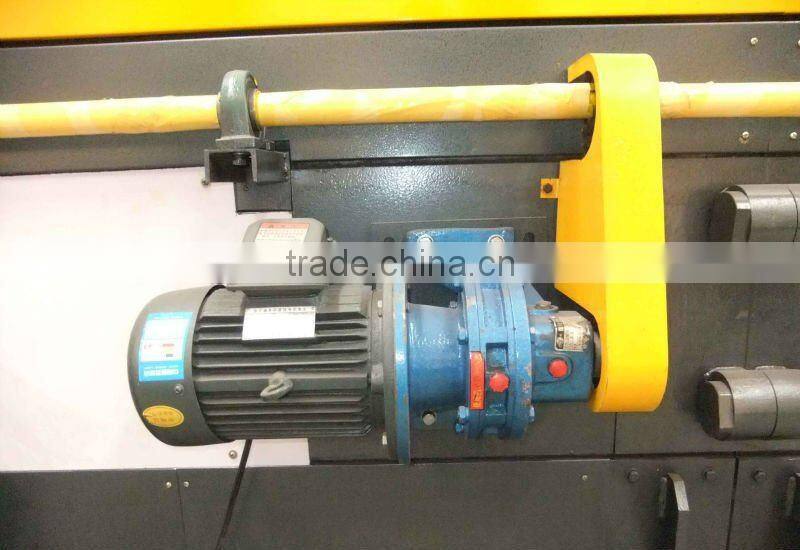

 Reducer on the laminating coneyor main machine to control the opening height of between the upper and lower chain plate

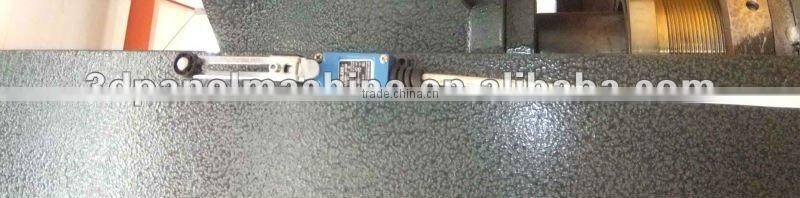

Stroke sensor switch --to control the distance between the upper and lower chain plate

 Temperature sensor on the phenolic foam laminating convyor main machine to control the hot air temperature to produce excellent phenolic foam board.

Uncoiler------ loading the non-woven fabric for the phenolic foam board production

 Trimmer : the finished phenolic foam board width is 1220mm, after trimming the width will be 1200mm

Auto-tracking cutting machine

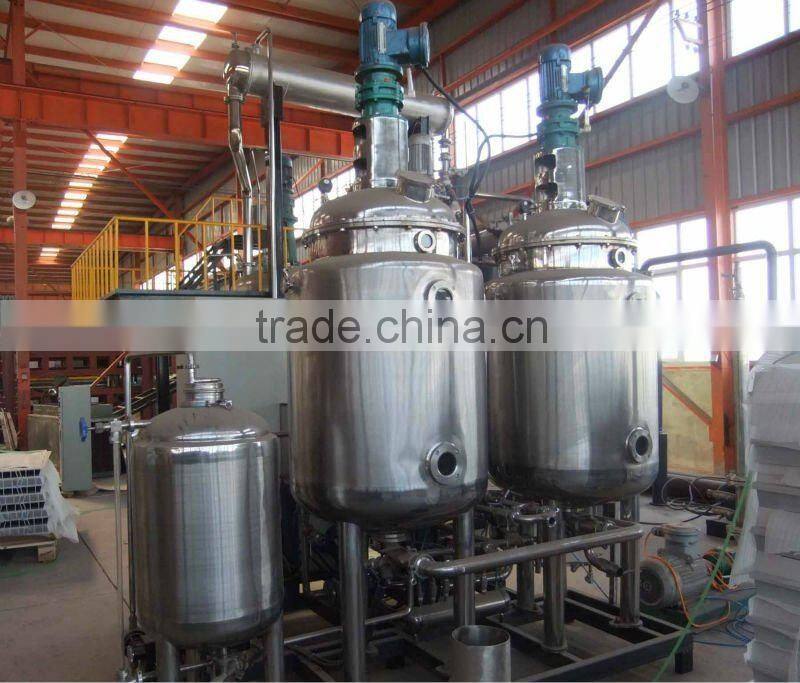

phenolic resin reactor:

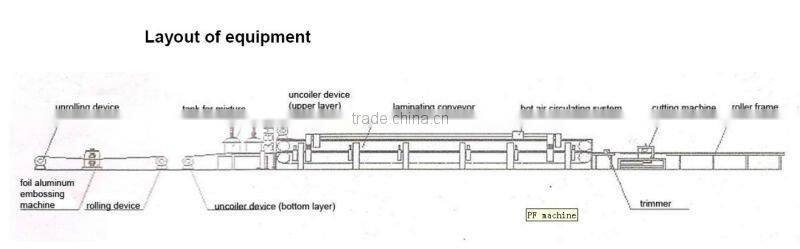

Phenolic foam board making machine/production line equipment layout

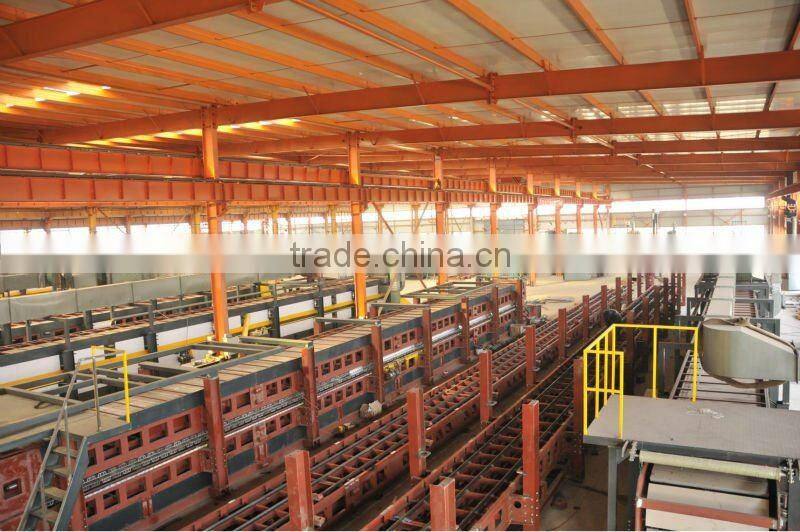

Production workshop
