insulated concrete foam block machine

ICF block machine for construction:

♦ Introduction of ICF panel construction :

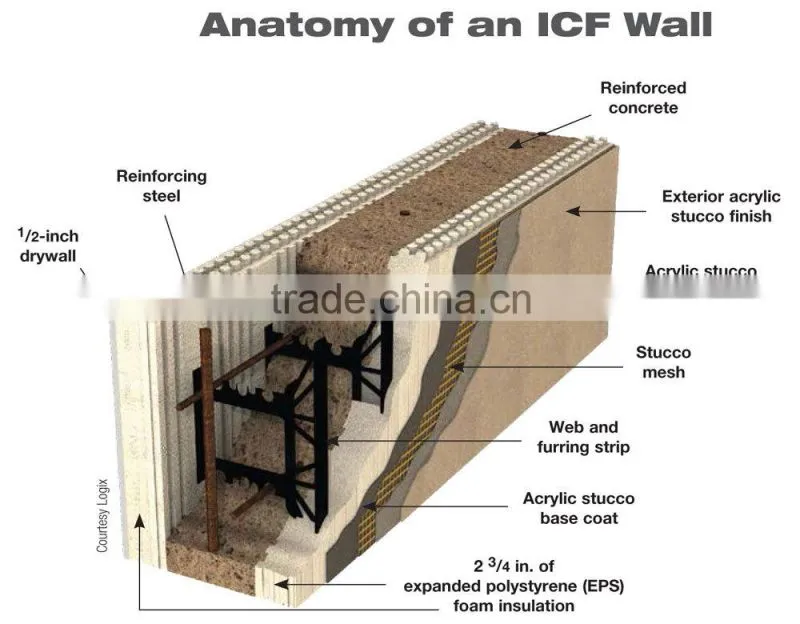

Insulating concrete form or insulated concrete form (ICF) is a system of formwork for reinforced concrete usually made with a rigid thermal insulation that stays in place as a permanent interior and exterior substrate for walls, floors, and roofs. The forms are interlocking modular units that are dry-stacked (without mortar) and filled with concrete. The units lock together somewhat like Legobricks and create a form for the structural walls or floors of a building. ICF construction has become commonplace for both low rise commercial and high performance residential construction as more stringent energy efficiency and natural disaster resistant building codes are adopted.

♦ Introduction for XL-ICF1400 serious ICF panel machine :

XL-ICF 1400 serious ICF wall machine is reseach and designed by the best construction machanical engineers design team based advacned international ICF panel construction technology , and lead the trend of  housing industrialization  in China . Cooperate withTsinghua university and China Mining University  and other scientific research institution .

The complete ICF panel wall machine / production line includes that :

(1). EPS pre-expander machine

(2). EPS beads aging silo and steam tubes .

(3). ICF panel molding machine

(4) ICF panel molds

(5).  steam boiler and stam tank

(6). air compressor and air tank

♦ Main points For ICF panel production factory setting :

(1) workshop area need :  1500 - 2000 square meters .

(2) workers need for each production shift : 12 workers totally

(3)  Each square meter of ICF panel production cost is 9 USD  .

(4) EPS density scope :  15 - 35 kg/m3

♦ ICF panel machine / production line patent technologies certificates

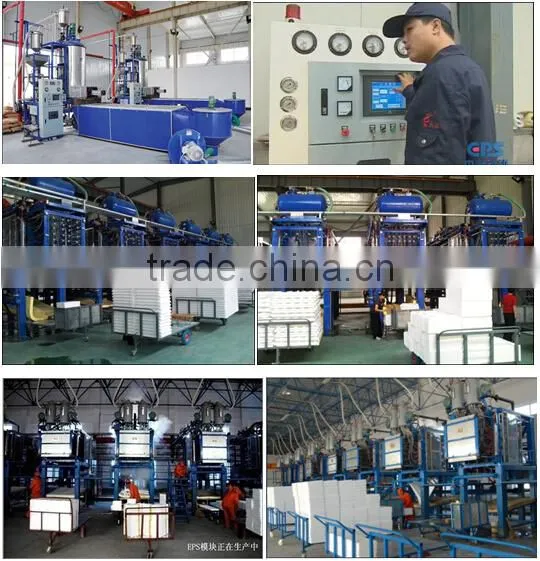

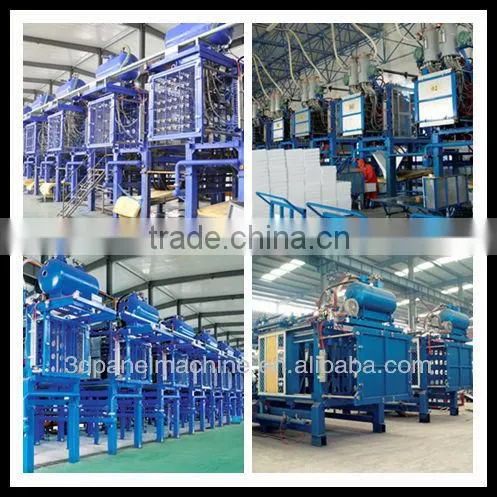

♦ XL-ICF1400 serious ICF machine working condition :

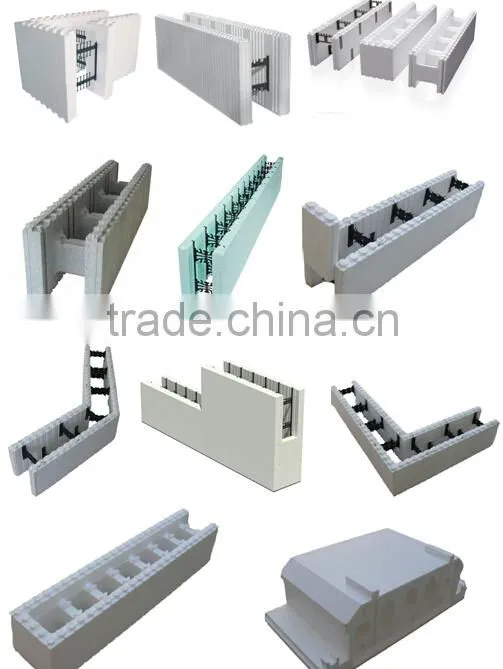

♦ ICF  panel ready products of XL-ICF 1400  panel machine :

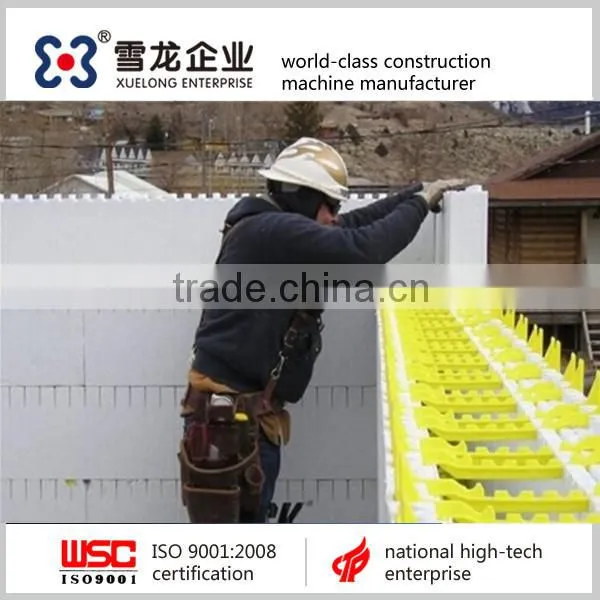

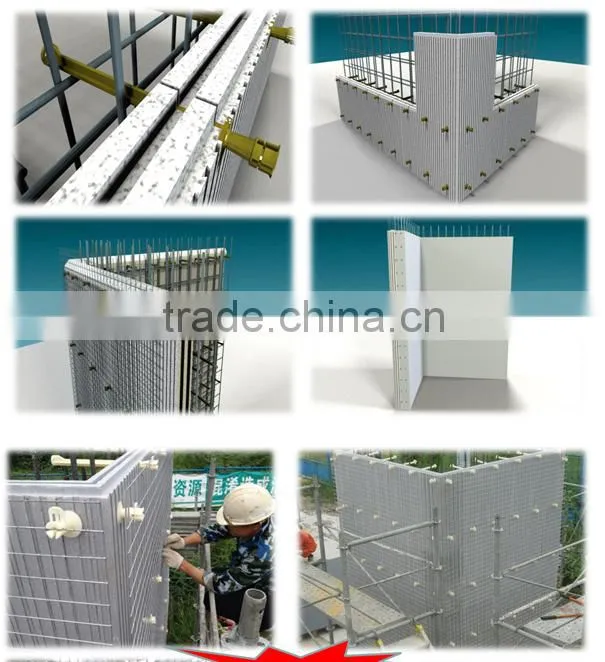

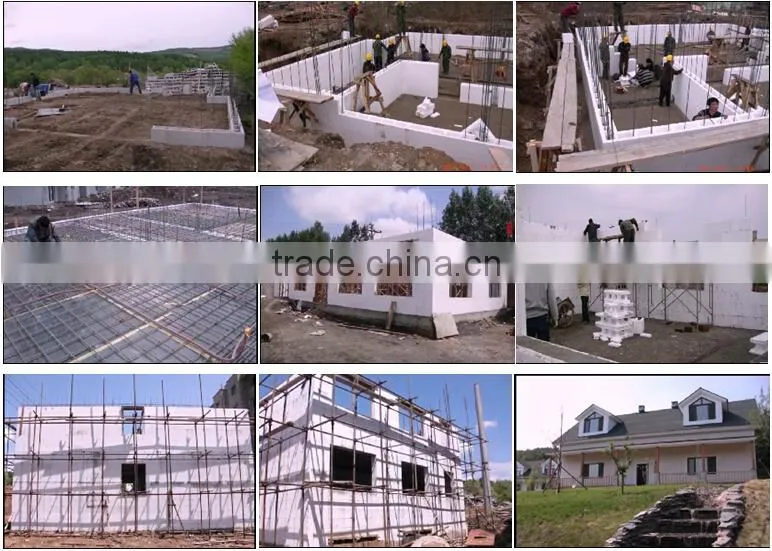

♦ ICF panel construction site photos:

        It accept stretch film packing for machine bodyand wooden packing for the ICF panel production line parts

2.How to get to our factory:

* You can directly fly to Shijiazhuang city, and we will pick up you from the air port.

* You can go to Beijing first, and then by fast train from Beijing to Shijiazhuang city, we will pick up you on the train station.

3: Why choose us?

Accomplishment

Xuelong company with cooperated with the first-class of famous University of Tsinghua. We have the strong technician team to serve our customer. We have successfully serve many domestic customers in the past.

 High quality

The machine line main parts are imported from famous factory in the world. Such as Siemens ; Delixi ; OMRON and etc.

Competitive price

Our machine with competitive price because of local production cost. So we are the best partner for you to choose !

Innovation

Our team developed the new solutions for different customers of different requirements.
