Insulated Concrete Forms Machine

Insulated Concrete Forms Machine

Specifications

-Vacuum and Automatic
-Short cycle time, Effective energy saving
-Evenly density distribution

Insulated Concrete Forms Machine

ICF  are hollow blocks, panels made of rigid foam that are erected and filled with concrete to form the structure and insulation of exterior walls. ICF  are growing rapidly in popularity because they are cost-competitive with frame construction, easy to use, and environmentally friendly, yet they deliver a higher-quality product: more efficient, comfortable, durable, stronger, quieter and more resistant to natural elements and disasters.

Insulated concrete forms (ICF's) are an insulating forming system made of expanded polystyrene (EPS) for poured-in-place concrete walls and foundations. It is a kind of green construction worldly .

A. Feature of the ICF Machine

1) Uses PLC programmable controller and touch screen to finish the auto-cycle process of opening-closing mold, feeding, heating, heat preservation, cooling, demolding and releasing

2) According to different products wanted, choose different feeding methods suchas common, pressure and vacuum to ensure feeding speed and uniformity

3) Hydraulic system used in the machine can save 30% energy. Its operation and locking molds are used by the main and auxiliary cylinder respectively

4) Uses digital encoder to control the travel distance of operation and locking molds,ensuring the uniformity of each feeding

5) Balance valve of the machine, used in heating, ensures the same steam pressureand temperature during each mold

6) Vacuum system, mainly including vacuum storage tank, vacuum cooling tank, andhigh water-cycle vacuum pump, ensures fast molding, uniform cementing and low moisture content

7) For production technical memory and quantity statistic, operator can find and set the different foam parameter by themselves

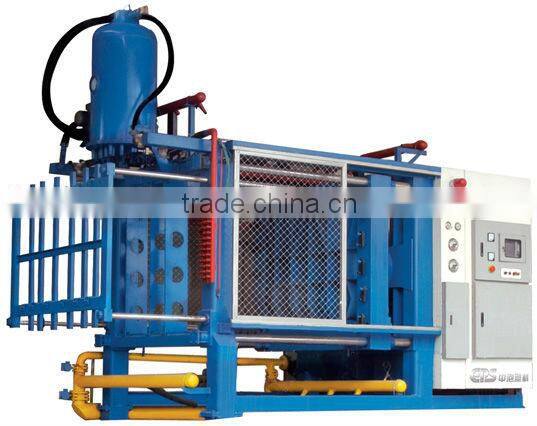

ICF block molding machine/shape molding machine/eps machine

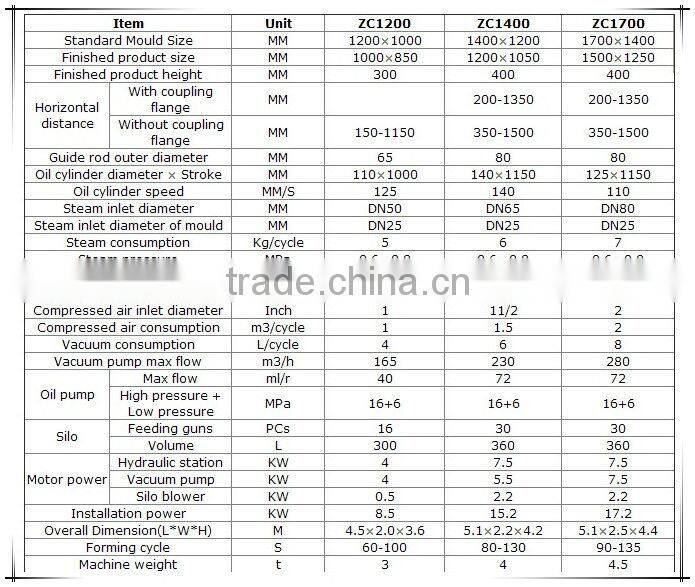

B.  The Technical Data of ICF machine

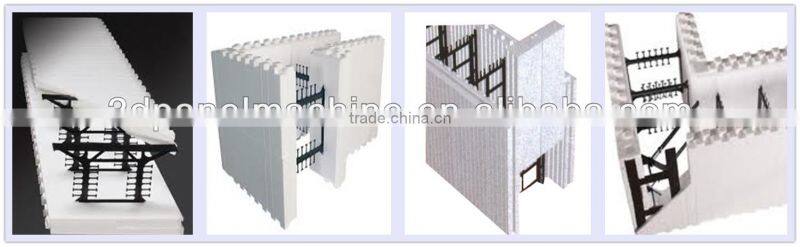

C.  Finished Products Show

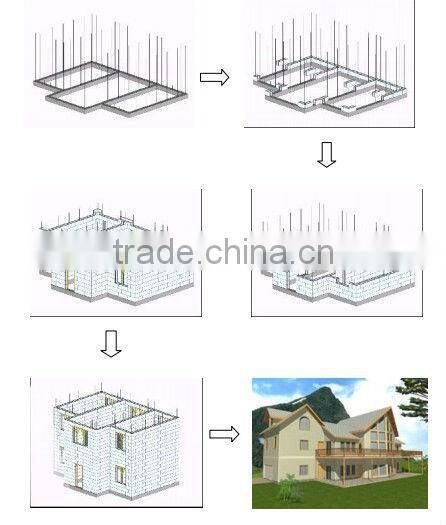

D.Engineering presentation

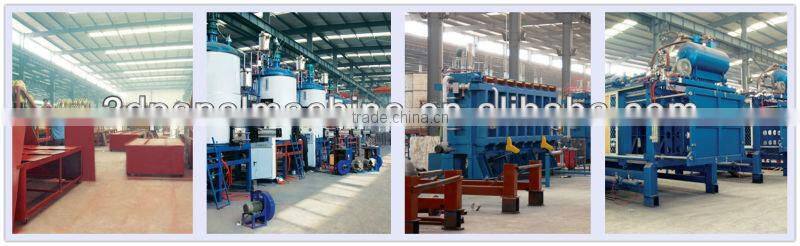

E.  Customer Workshop Show

F.  Our Factory Show

Sincerely hope to cooperate with you,and welcome to visit our factory.
