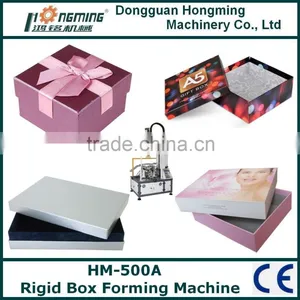

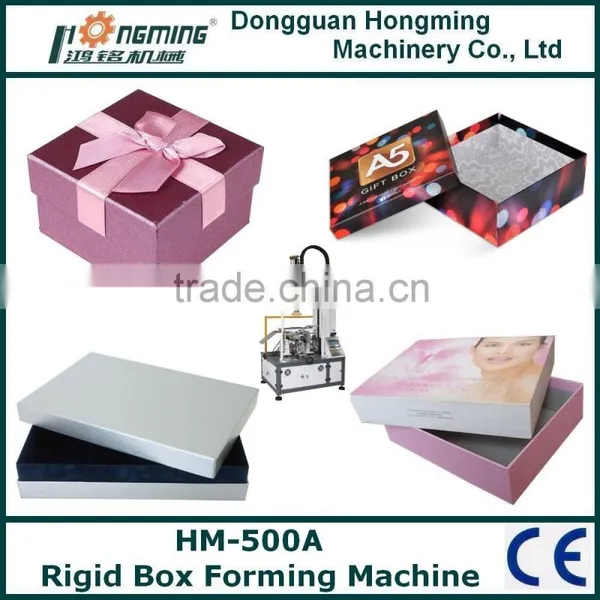

HM-500A Automatic Paper Rigid Box Forming Machine
US$ 1 - 16,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, box making machine
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HM-TDG500 Semi-automatic Rigid Box MakerNegotiableMOQ: 1 Set -
HM-500 Box Wrapping Machine( Package Machine)US$ 1 - 7,000MOQ: 1 Set
-
HM-40 Corner Sealing MachineUS$ 1 - 1,650MOQ: 1 Set
-
HM-40 Box Corner Pasting MachineUS$ 10 - 1,650MOQ: 1 Set
-
Hm-500 Carton Box Coating MachineUS$ 1 - 7,000MOQ: 1 Set
Condition
New
Product Type
Other, box making machine
Processing Type
Paper Folding Machine
Place of Origin
Guangdong, China
Brand Name
hongming
Model Number
HM-500A
Voltage
AC220V
Power(W)
2.2kw
Dimension(L*W*H)
1180x920x2000mm
Weight
960kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

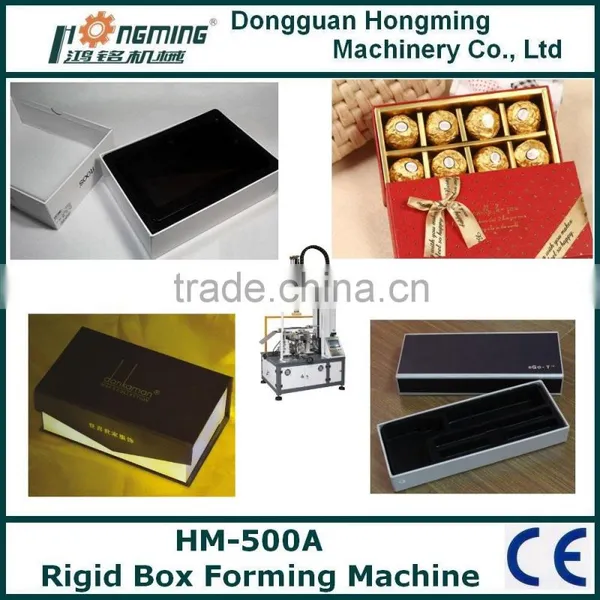

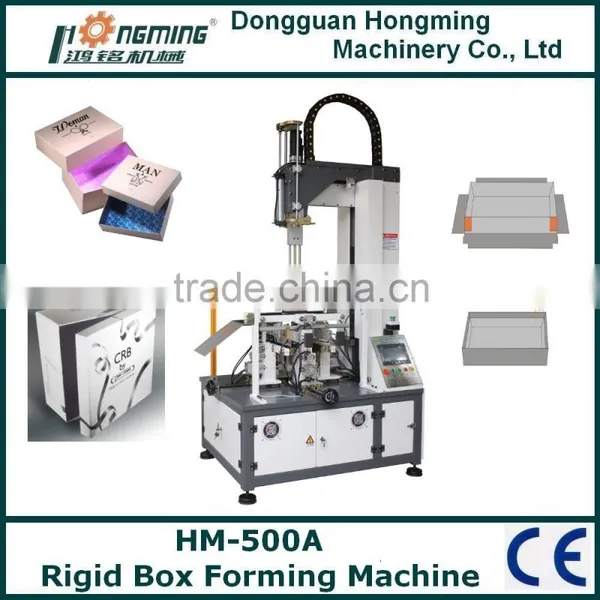

HM-500A Automatic Paper Rigid Box Forming Machine
HM-500A Automatic Paper Rigid Box Forming Machine's introduction:
This machine is available in wrapping and folding the paper edge for rigid box, fancy box, and cardboard box, etc.
- It applies servo motor and PLC control.
- The adjusting of the 4 sides is controlled by screw, thus more precise and easier.
- The electric parts apply international brand. Low malfunction and high accuracy.
- With alarm functions display on screen.
- With emergency stop switch.
- When the machine is working, the maximum height could be 2200mm.
HM-500A Automatic Paper Rigid Box Forming Machine's parameters:
Model |
HM-500A |
HM-320 |
Box Size Max. |
500x400x120mm |
300x200x120mm |
Box Size Min. |
80x60x10mm |
45x45x10mm |
Folding-in Depth (R) |
10-60mm |
10-60mm |
Power |
2.2kW |
2.2kW |
Speed |
10-25pcs/min |
10-27pcs/min |
Voltage |
AC220V |
AC220V |
Air pressure |
0.6MPa |
0.6MPa |
Net Weight |
960kg |
860kg |
Machine Dimension |
1180x920x2000mm |
980x720x2000mm |
HM-500A Automatic Paper Rigid Box Forming Machine's processses:

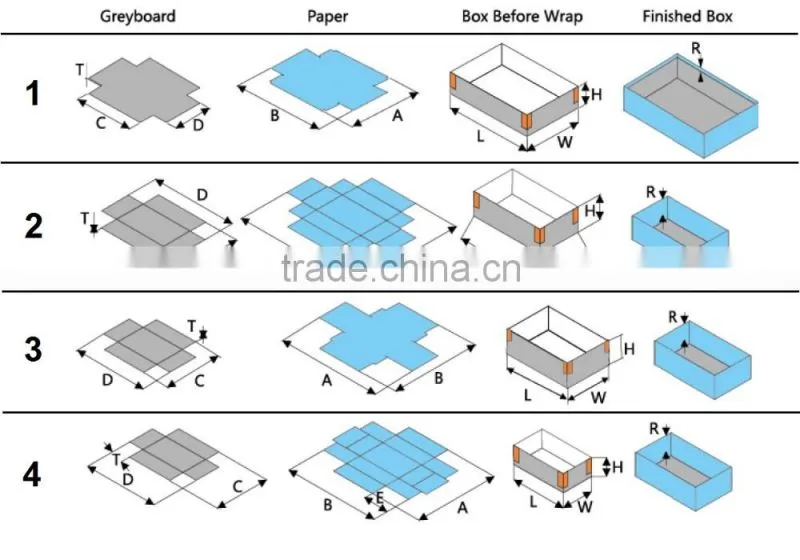

HM-500A Automatic Paper Rigid Box Forming Machine's box types:

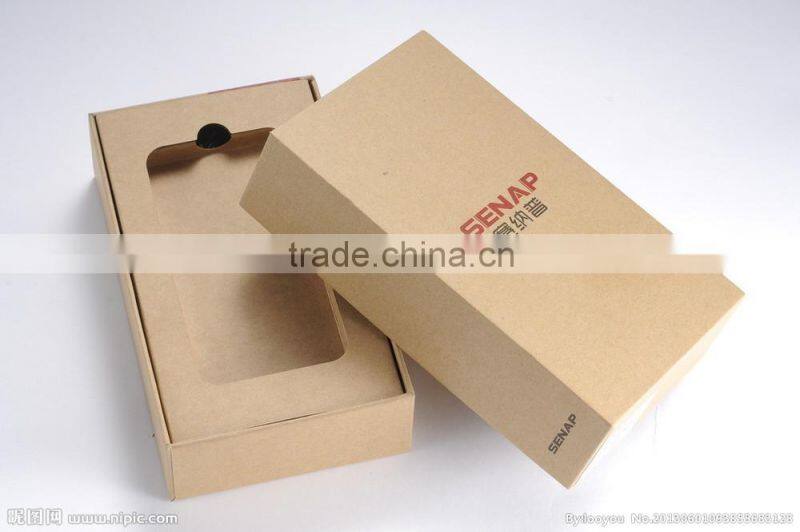

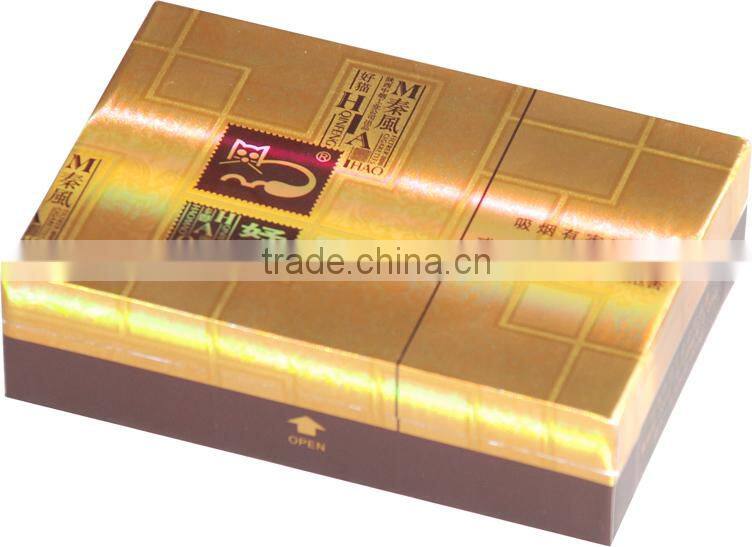

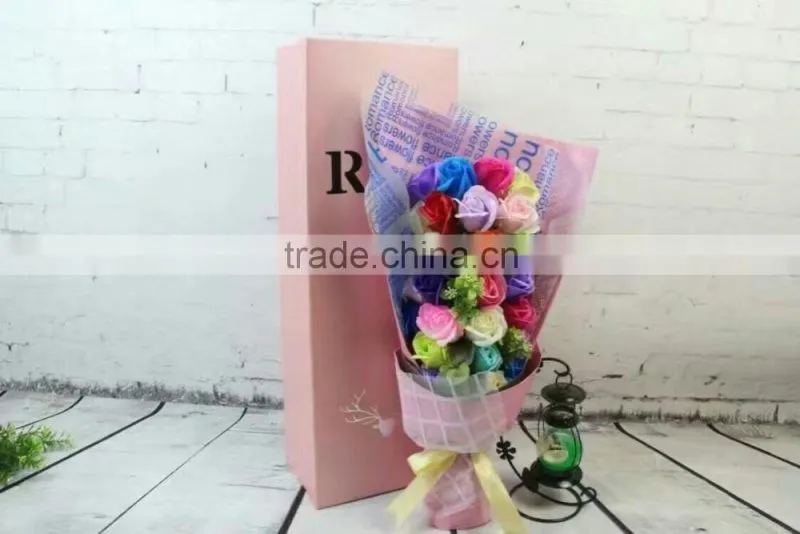

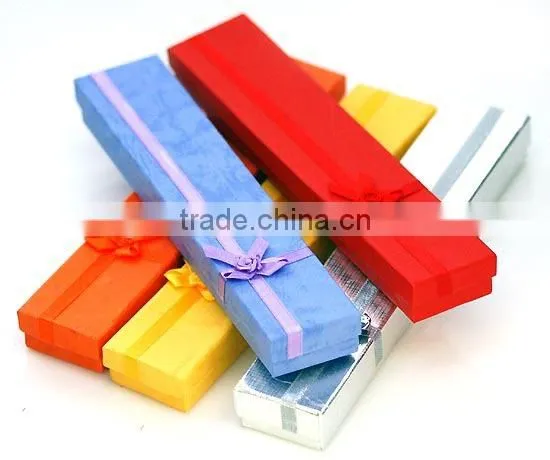

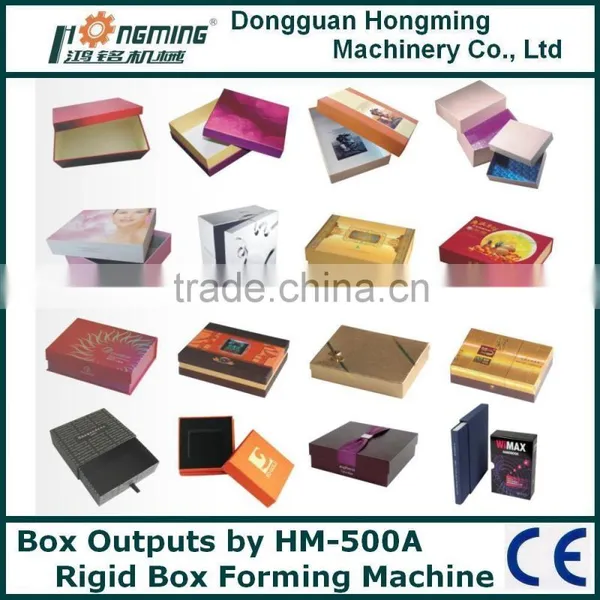

HM-500A Automatic Paper Rigid Box Forming Machine's finaly outputs:
HM-500A Automatic Paper Rigid Box Forming Machine's family: HM-TDG500
rigid box making machine, gift box maker, phone box making line, big box line, jewelry boxes, pull up box producing machine, chocolate box production machine, shoe box producing line, big box production line, set-up box making machine, set-up box maker, set-up box production line, watch box producing machine, draw box making machine
