HM-TDG500 Semi-automatic Rigid Box Making Machine

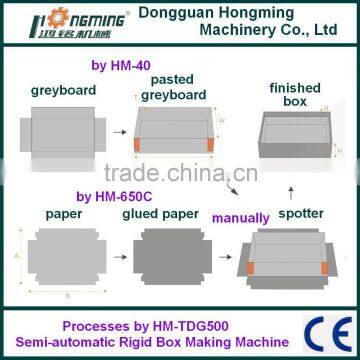

Semi-automatic rigid box making machine is a complete set of deluxe coverpaper and greyboard box assembly line, which is composed of 4 sets of small machines. They are all of quick speed, high product quality, and simple operation.

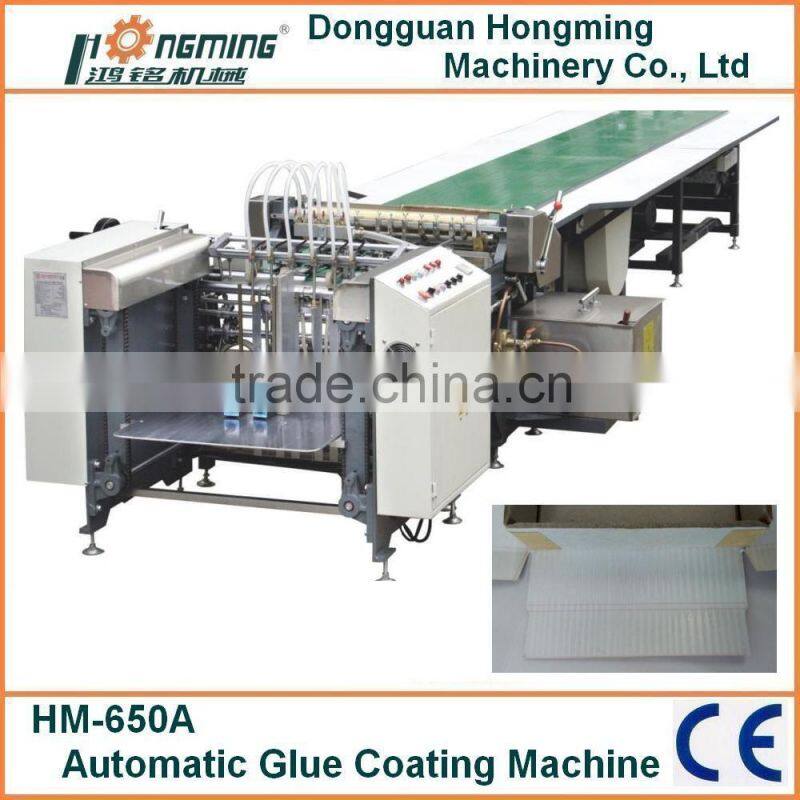

HM-650A Automatic Glue Coating Machine:
The main engines are equipped with suction devices under the conveyor belt to effctively avoiding glued paper’s bending and curling thus avoid bubbling inside the finished box.
There are more types of gluing machine of semi-auto and automatic with multiple sizes, please refer to our gluing machine for details.
Model |
HM-650A |
HM-850A |
Working Width |
80-600mm |
80-800mm |
Sheet Thickness |
80-200gsm |
80-200gsm |
Production Speed |
7-40pcs/min |
7-40pcs/min |
Voltage |
AC380V |
AC380V |
Power |
7.45kw |
7.45kw |
Dimension |
6350x1650x1100mm |
6350x1650x1300mm |
Net Weight |
1100kg |
1275kg |

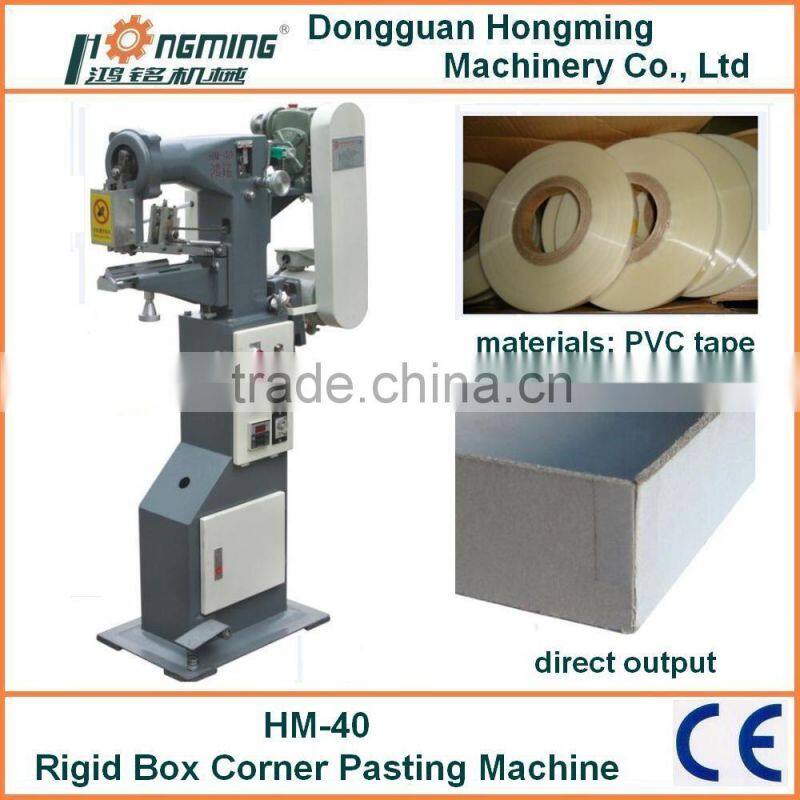

HM-40 Corner Pasting Machine is mainly used for forming and corner pasting for gray boards to be applicable in coordination.
This machine can make approximately 1000-1300 box covers every hour.
By the way, manual positioning the pasted greyboard box onto the glued coverpaper. This positioning can also achieve 1000-1300 such boxes every hour.
Model |
HM-40 |
Min Box Size |
40×40×10mm |
Production Speed |
20-40pcs/min |
Voltage |
AC220v |
Power |
0.4kw |
Net Weight |
170kg |
Machine Overall Dimension |
800×500×1400mm |
Pasted length |
10-30mm |

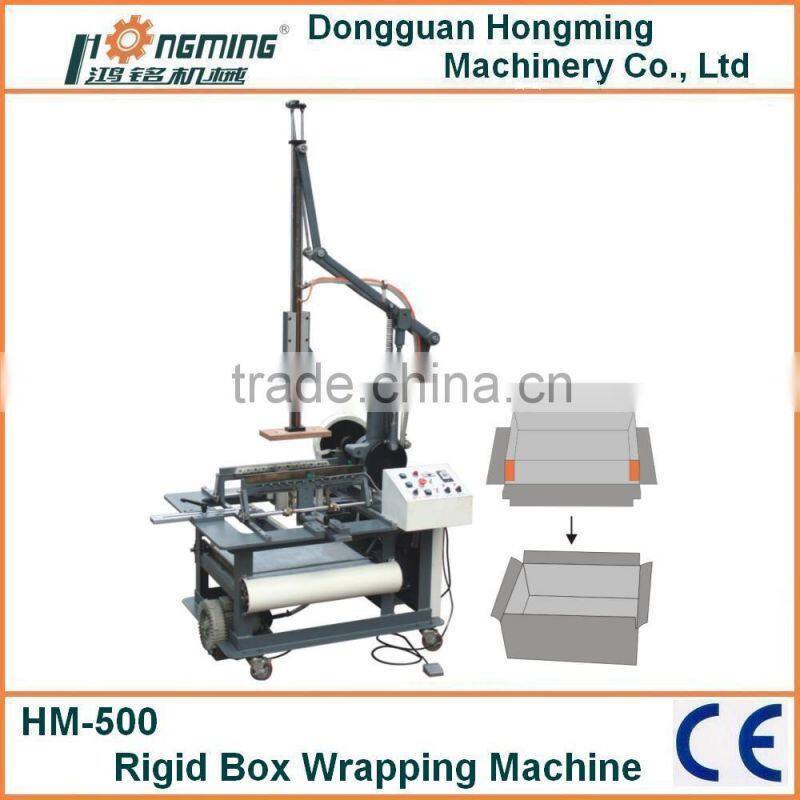

HM-500 Box Wrapping Machine can wrap the four flaps of the coverpaper onto the greyboard box after manually positioning the greyboard box.
Model |
HM-500 |
Case min. Size |
100X80X15mm |
Case max. Size |
360X500X80mm |
Production Speed |
20-40pcs/min |
Voltage |
AC220V |
Power |
1.9kw |
Net Weight |
520kg |
Machine Overall Dimension |
1450X1100X3650mm |

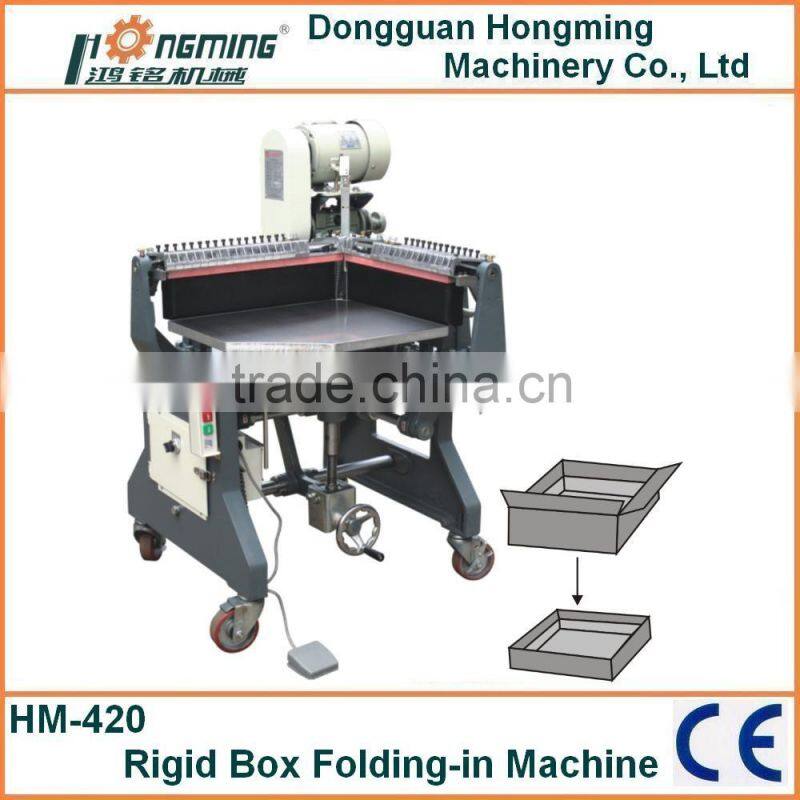

HM-420 Box Flap Folding-in Machine could automatic fold two adjacent flaps in one time with adjustable pressure nozzles.
There are two sizes of this machine.
Model |
HM-420 |
HM-520 |
Case Size |
420×360×130mm |
520×420×150mm |
Production Speed |
20-30pcs/min |
20-30pcs/min |
Power Requirement |
AC220v |
AC220v |
Power |
0.4kw |
0.4kw |
Net Weight |
202kg |
240kg |
Machine Overall Dimension |
800 ×700 ×800mm |
1000 ×700 ×1000mm |

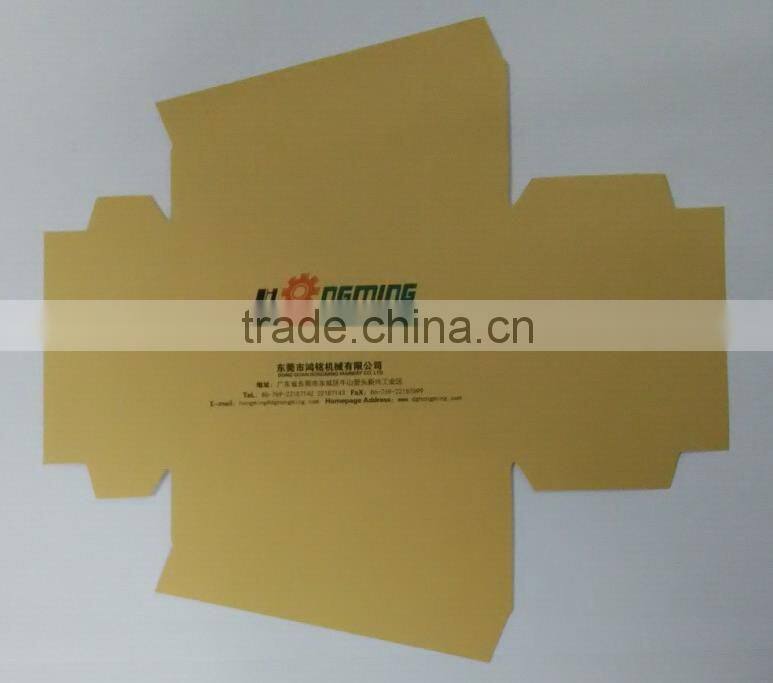

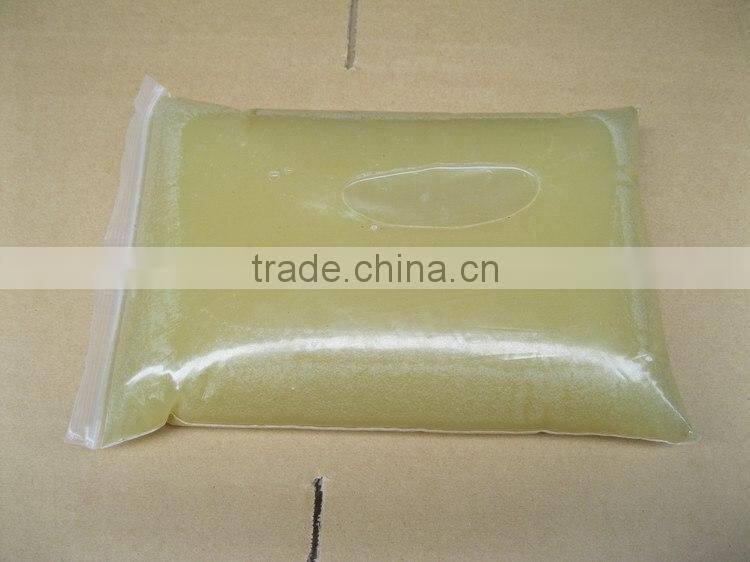

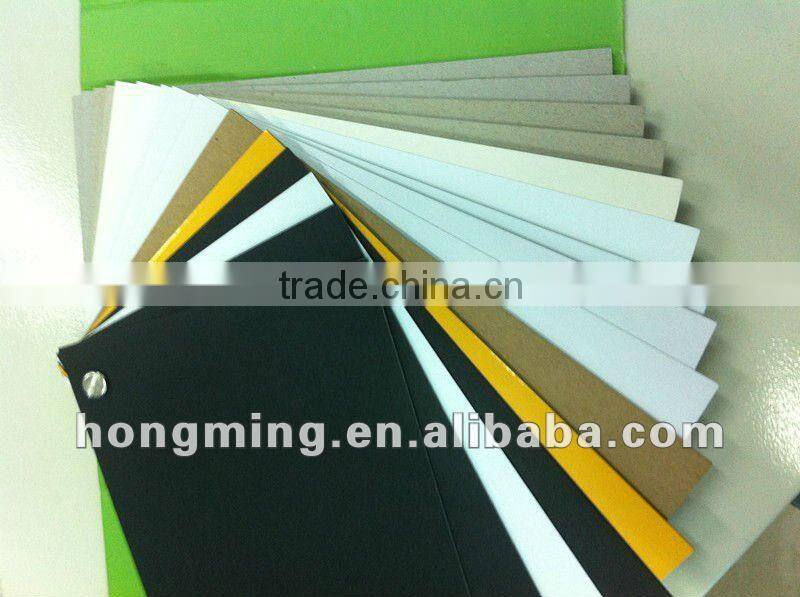

HM-TDG500 Semi-automatic Rigid Box Maker materials:
HM-TDG500 Semi-automatic Rigid Box Maker details:

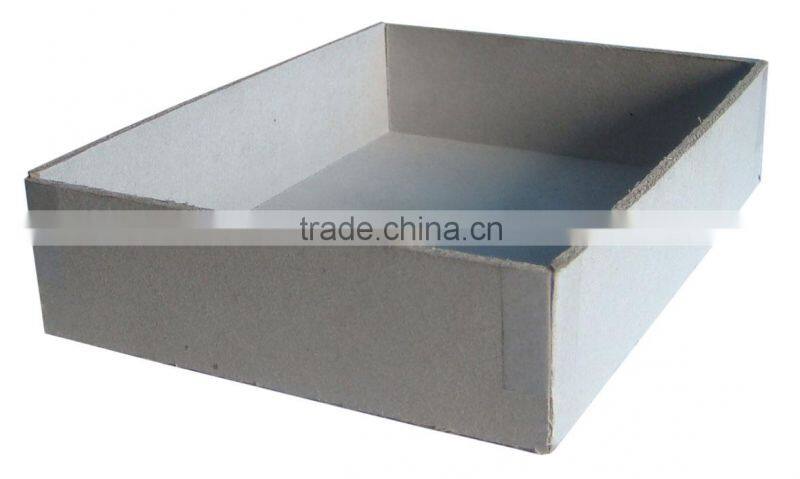

HM-TDG500 Semi-automatic Rigid Box Maker direct outputs:

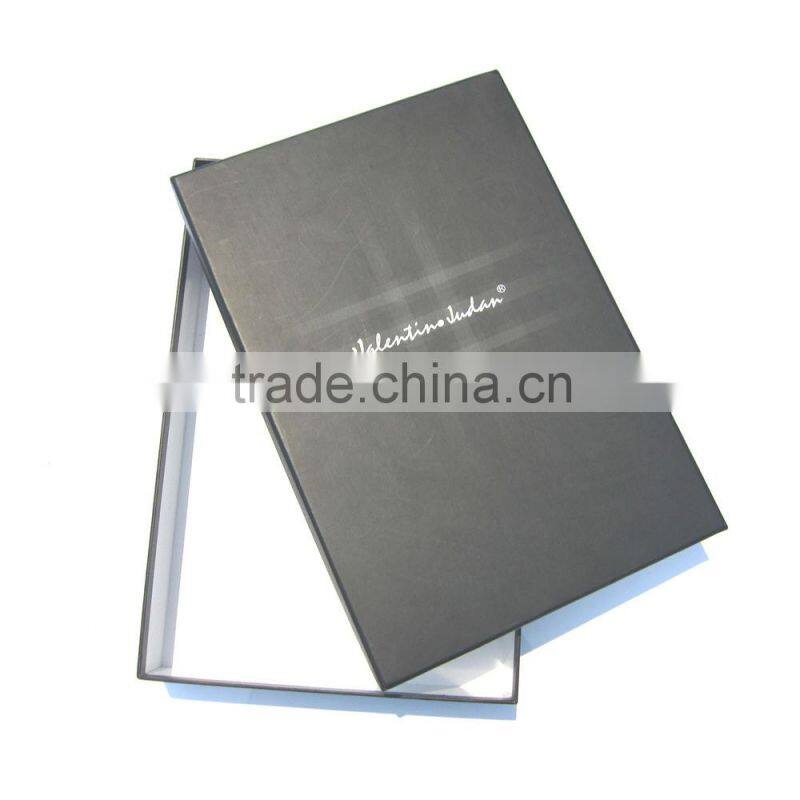

HM-TDG500 Semi-automatic Rigid Box Maker final outputs:
To conclude, the output will be 800-1200 boxes in 1hour with 10 or 11workers: 1 worker is for coverpaper feeding, 2 workers for corner pasting, 2 workers for positioning, 2 workers for wrapping, 2 workers for folding, and 1 or 2 workers for QC.
