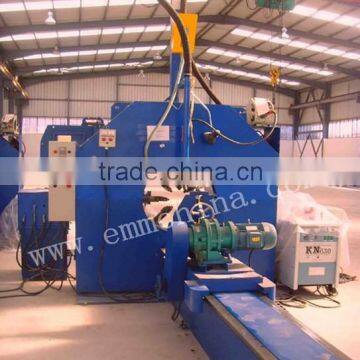

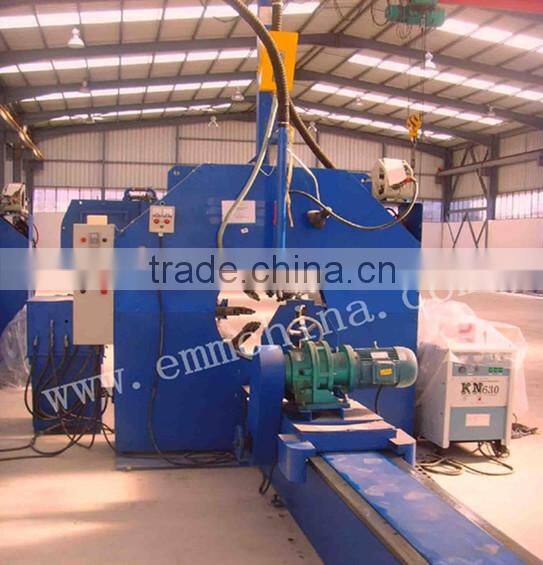

EMM street light pole machine

Specifications

1. street light pole machine
2. cut to length
3. double linkage press brake

street light pole machine



(Submerged Arc Welding and Gas-shielded welding(CO₂) Welding both function)
APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 12000MM

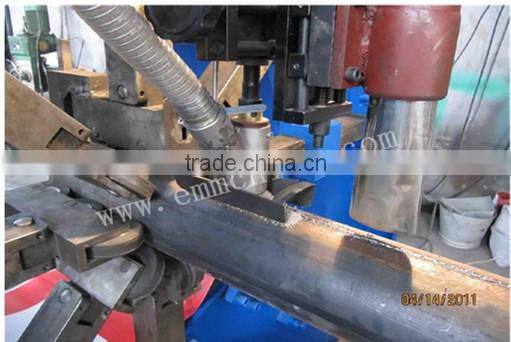

LIGHT POLE SHUT-WELDING MACHINE MODEL : 450/12000, it is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.







The machine includes the following items:



1.   Long working table with rack for pull dolly.



2.   Dolly for pulling pole.



3.   Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal and circle pole).



4.   Submerged Arc Welding and Gas-shielded welding(CO2) Welding system, including welding wire feeding
      system.



5.   The flux recovering system.



6.   back support unit.



7.   hydraulic system.
