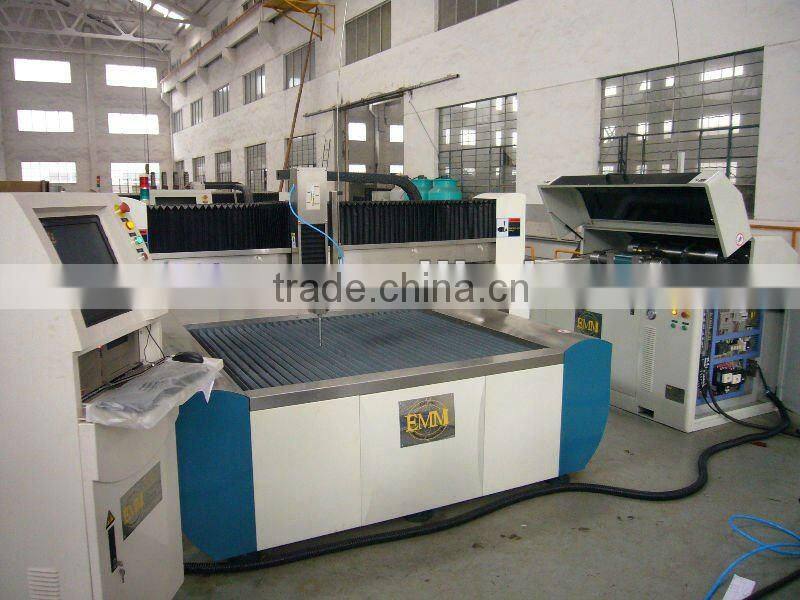

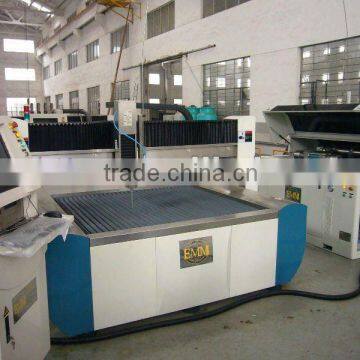

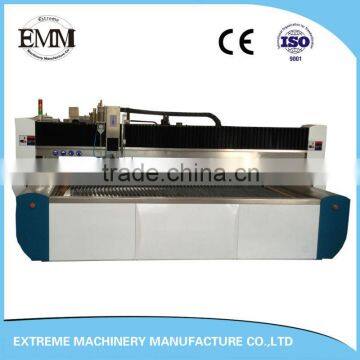

EMB2525 waterjet cutting

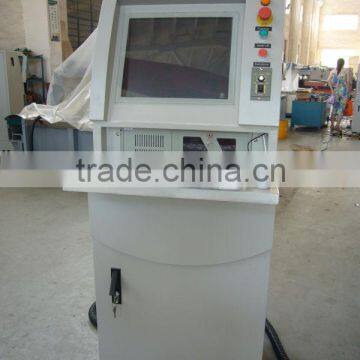

Controlling system
We adopt the famous NAIKY controlling system and MITSUBISHI AC servo digit driving system and AC servo motor.
- 17”LCD liquid crystal display
- DNC on-line working function
- Functions of returning arbitrary point, bending, and circular arc working auto deceleration.
- Function of cutting figure imitation display.
- 160GB memory hard disk
- MITSUBISHI AC servo driver and motor.
-2GB memory card
- Multilingual function(Chinese English ,etc.,)
- Drive-by-wire and hand-hold controller, (optional parts, according to requests)
Chief technical parameter
- structure:Bridge
- cutting area
- X-axis:2500mm
- Y-axis:2500mm
- Z-axis:150mm
- repeatability:0.003mm
- X,Y speed:0-15m/min
- cutting accuracy:±0.1mm
power:220VAC, 60Hz, 3 phase 4 wire system (can be customized)
Technical data
No. | Name | Model | Specification | Remark |
1 |
EMB2525 CNC water jet (Bridge) | EMB2525(H2O) | Max. pressure: 420MPA | Standard |
EMB2525cutting table | Cutting size: 2.5m*2.5m | Standard | ||
EMM CNC control system | Based on Windows with NC studio | Standard | ||
2 | Auto abrasive feeding system | 100L | N/A | optional |
3 | Auto abrasive feeding system | 170L | N/A | optional |

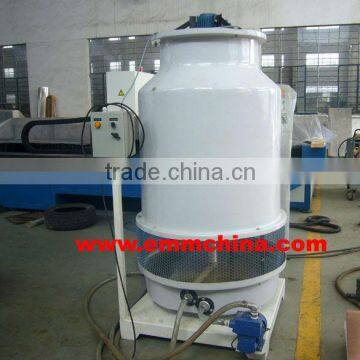

4 | Cooling system A |
| N/A | optional |
5. | Cooling system B | TCO-10A/1D | N/A | optional |
6. | water soften system | EMM-2000 | 2T/h | optional |
7 | Hand-hold controller | N/A | NAIKY | optional |
8 | Tools &Spare parts | List 1&List 2 | Free with the machine | free |
9 | Optional parts | List 3 | N/A | optional |
EMB2525 waterjet cutting
