10A250V Manual Reset Bimetal Thermostat
US$ 0.25 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW, LC
Model Number:
3M-RF2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
250V 16A Home Appliance Bimetallic Thermostat With Brass HeadUS$ 0.4 - 0.7MOQ: 1000 Pieces -
KSD Snap Action 10A Overheating ThermostatUS$ 0.25 - 1MOQ: 1000 Pieces
-
250V Bimetallic Thermostat for Home ApplianceUS$ 0.2 - 0.5MOQ: 1000 Pieces
-
10A250V Manual Reset ThermostatUS$ 0.45 - 0.8MOQ: 1000 Pieces
-
Home Appliance Nomarlly Opened Phenolic Bimetal ThermostatUS$ 0.2 - 0.5MOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW, LC
Model Number
3M-RF2

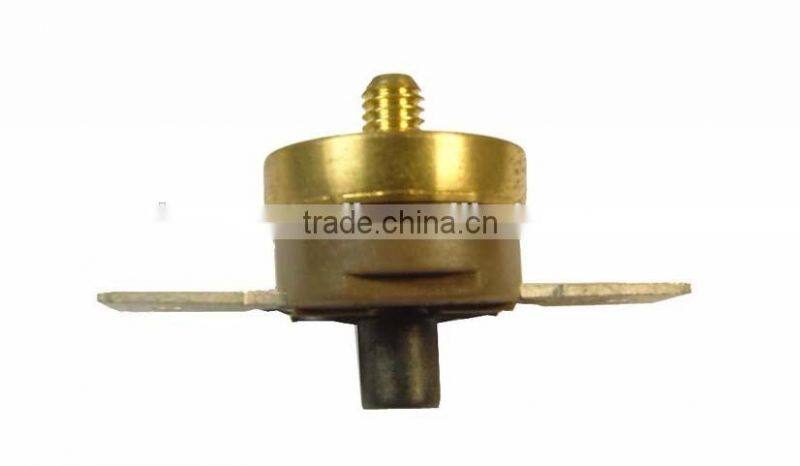

10A250V Manual Reset Bimetal Thermostat
Overview:
(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)
(2) BRACKET TYPE : Brass round stud mounting
(3) TERMINAL ORIENTATION : Horizontal
(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )
(5) Manual Reset
Specification:
| Electrical Rating | 16A/250V AC 15A/125V AC 10A/250V AC |
| Operation Temp |
0°C~180(VDE) 50°C~205°C(UL/CUL) |
| Differential | 10K~30K |
| Calibration Method | 1°C/min. Air circulation furnace |
| Temp. Tolerance | ±3K / ±5K |
| Heat Durability | 180°C*2Hr MAX. |
| Circuit Resistance | 50 mΩ MAX. |
| Insulation Resistance | 100MΩ min. at DC 500V |
| Dielectric Strength |
AC1000V for One Minute or AC 1800V for One Second (Leak current:0.5mA) |
| Operation life |
100,000 Cycles(15A 125V AC / 10A 250V AC) 10,000 Cycles(16A 250V AC) |
