10A250V Manual Reset Thermostat
US$ 0.45 - 0.8
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
HW, LC
Model Number:
4M-RF2
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Home Appliance Nomarlly Opened Phenolic Bimetal ThermostatUS$ 0.2 - 0.5MOQ: 1000 Pieces -
1/2 Disc Type Temperature Controller ThermostatUS$ 0.2 - 0.8MOQ: 1000 Pieces
-
16A 250V Home Appliance Bimetallic ThermostatUS$ 0.25 - 0.8MOQ: 1000 Pieces
-
Snap Action 16A Bimetal Type ThermostatUS$ 0.3 - 1MOQ: 1000 Pieces
-
T24-4A-BF2 Bimetallic Snap Action ThermostatUS$ 0.2 - 0.8MOQ: 1000 Units
Brand Name
HW, LC
Model Number
4M-RF2

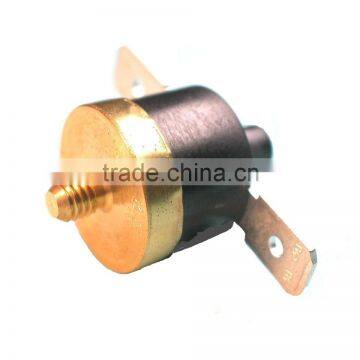

T24M-RF2 10A250V Manual Reset Thermostat
Overview:

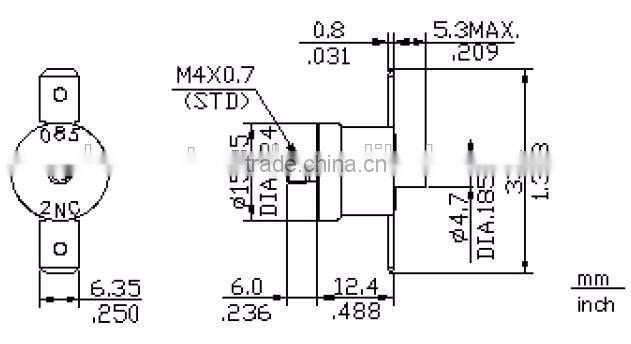

| CONTACT TYPE | Contact Opens When Temperature Rises To Set Point (Normally Closed) |
| RACKET TYPE | Brass round stud mounting, avilable for 4.8Ø*5.4mm and 6.0Ø*7.8mm) |
| TERMINAL ORIENTATION | Horizontal |
| TERMINAL SIZE | Amp#250 TAB ( 6.35mm x 0.8t mm ) |
| Reset Type | Manual Reset |
| Housing Height | 12.4mm |
Specification:
| Electrical Rating | 15A/125V AC |
| Operation Temp. | 40℃~205℃(UL/CUL) |
| Differential | 10K~65K |
| Calibration Method | 1℃/min. Air circulation furnace |
| Temp. Tolerance | ±3K / ±5K |
| Heat Durability | 180℃*2Hr MAX. |
| Circuit Resistance | 50 mΩ MAX. |
| Insulation Resistance | 100MΩ min. at DC 500V |
| Dielectric Strength |
AC1000V for One Minute or AC 1800V for One Second(Leak current:0.5mA) |
| Operation life | 6,000 cycles |
