250V 16A Home Appliance Bimetallic Thermostat With Brass Head
US$ 0.4 - 0.7
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW, HW
Model Number:
3A-HF1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai & Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KSD Snap Action 10A Overheating ThermostatUS$ 0.25 - 1MOQ: 1000 Pieces -
250V Bimetallic Thermostat for Home ApplianceUS$ 0.2 - 0.5MOQ: 1000 Pieces
-
10A250V Manual Reset ThermostatUS$ 0.45 - 0.8MOQ: 1000 Pieces
-
Home Appliance Nomarlly Opened Phenolic Bimetal ThermostatUS$ 0.2 - 0.5MOQ: 1000 Pieces
-
1/2 Disc Type Temperature Controller ThermostatUS$ 0.2 - 0.8MOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW, HW
Model Number
3A-HF1
Detailed
Reset Type |
Automatic or Manual |
Contact Type on Rise |
NC |
Electrical Rating |
16A/250VAC
15A/125VAC
10A/250VAC
|
Calibration Method |
1°C/min, Air circulation furnace |
|
Operating Temp. *
|
40°C~ 200°C (ENEC)
40°C~ 205°C (UL/CUL)
|
Differential |
10K ~ 65K |
Temp. Tolerance |
±3K/ ±5K |
Heat Durability |
180°C * 2Hr Max. |
Circuit Resistance |
50 MΩ Max. |
Insulation Resistance |
100MΩ at DC 500V |
Dielectric Strength |
AC 1000V/min or AC 1800/sec (Leak Current 0.5mA) |
Operating Life |
100,000 Cycles (15A/125VAC, 10A/ 250VAC)
10,000 Cycles (16A/250VAC)
|

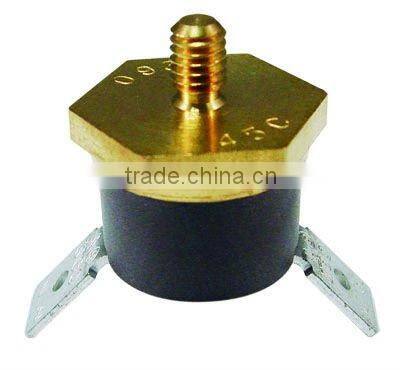

250V 16A Home Appliance Bimetallic Thermostat
(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)

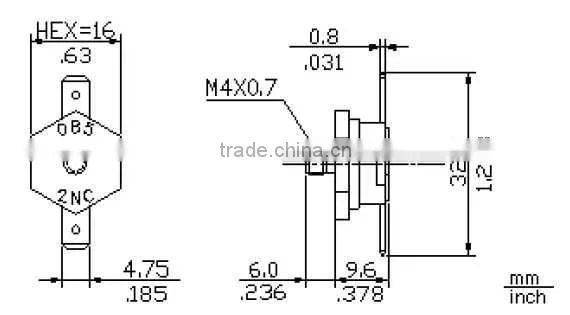

(2) BRACKET TYPE: Brass hex stud mounting
(3) TERMINAL ORIENTATION : Horizontal
(4) TERMINAL SIZE: Amp#187 TAB ( 4.75mm x 0.8t mm )
Popular to use in electric heater, coffee maker, water dispenser, oven, microwave open, water boiler, heater, A/C, or any home applicances require overheating protection or activating heating fan.
Our products can be used in DC or AC ratings.
The product is highly customizable in terms of bracket chocies, terminals, and housings. Please feel free to contact us for a complete product offer.
