Help CenterR4 Series Rocker Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
R4
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
R519 High Rating Rocker SwitchNegotiableMOQ: 1000 Pieces -
YSS-16 Slide SwitchNegotiableMOQ: 1000 Pieces
-
SS143D04 1P3T Vertical Type Slide SwitchUS$ 0.1 - 0.2MOQ: 1000 Pieces
-
SK32/SK33 3P2T Horizontal Type Slide SwitchNegotiableMOQ: 1000 Pieces
-
T105 DP4T Slide SwitchNegotiableMOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
R4
Max. Current
16A
Max. Voltage
250V
Mechanical Life
30,000

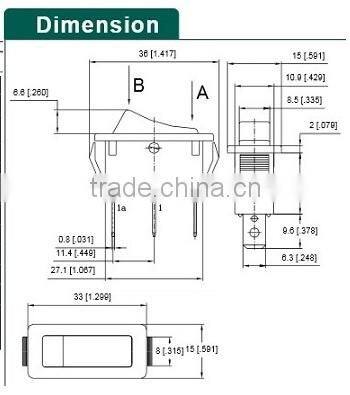

R4 Series Rocker Switch
Spec:
| Electrical Rating |
20A 125VAC/16A 250VAC(UL) 10A/15A/16A 250VAC(VDE) |
| Mechanical life | Over 30000 cycles |
| Electrical life | Over 10000 cycles |
| Contact resistance | <20mΩ |
| Insulation resistance | >1000MΩ |
| High voltage resistance | >1500V 1 min. |
| Ambient temperature | Terminal side -20 to +85°C |
| Actuating side | -20 to +55°C |
| Storage temperature | -30 to +80°C Max |
| Atmospheric humidity | Max.85% |
| Actuating force | 4~8N (depends on different switch function) |
| Flammability | UL94 V-2 |
| Temperature rise at the terminal | Max 30°C (UL1054) |
| Solder ability of terminal | Max 350°C,3s |
Material:
| Housing | Nylon 66 |
| Rocker | PC & PA66 |
| Contact | Silver Alloy |
| Terminal | Brass Silver Plated |
| Lamp | Neon Lamp, Tungsten Lamp |
| Spring | SWP, SUS |
| Movable Arm | Brass Silver Plated |
