Help CenterSS143D04 1P3T Vertical Type Slide Switch
US$ 0.1 - 0.2
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
SS143D04
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SK32/SK33 3P2T Horizontal Type Slide SwitchNegotiableMOQ: 1000 Pieces -
T105 DP4T Slide SwitchNegotiableMOQ: 1000 Pieces
-
BT Series Tilt Vibration SwitchUS$ 0.3 - 0.4MOQ: 1000 Pieces
-
12VDC Small Mercury SwitchNegotiableMOQ: 1000 Pieces
-
50mA 24VDC Gold Case Tilt SwitchNegotiableMOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
SS143D04

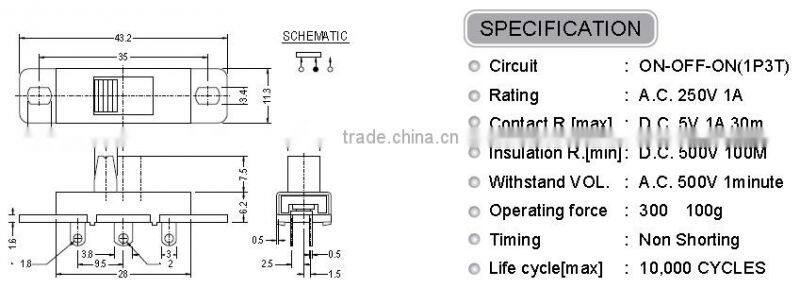

SS143D04 Vertical Type Slide Switch
Overview:
(1) Vertical type slide
(2) Available in various circuit such as 1P3T
Specification:
| Circuit | ON-OFF-ON (1P3T) |
| Rating | 250VAC 1A |
| Contact Resistance (max) | 5VDC 1A 30mΩ |
| Insulation Resistance (min) | 500VDC 100MΩ |
| Withstand Voltage | 500VAC 1min |
| Operating Force | 300 ± 100g |
| Timing | None Shorting |
| Life Cycle (max) | 10,000 cycles |
