Help CenterT105 DP4T Slide Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
SA325KKEW0C
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
SA325KKEW0C
Max. Current
10A/16A
Max. Voltage
250V/125V
Mechanical Life
30000

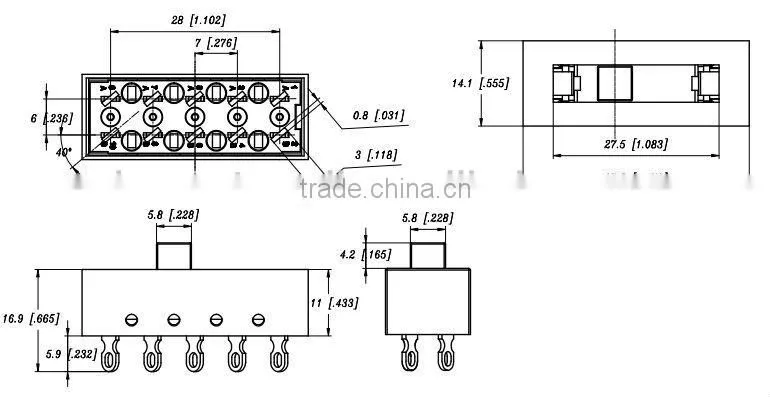

T105 DP4T Slide Switches
Specification:
| Electrical Rating | 10A 250VAC/16A 125VAC |
| Contact Resistance | <20mΩ(initial) |
| Insulation Resistance | >1000MΩ(500VDC between open contacts) |
| Dielectric Strength | >1500V 1 min |
| Mechanical Life | >30000 cycles |
| Electrical Life | >10000 cycles |
| Temperature Rise At Terminal | Max 30°C |
| Solder Ability of Terminal | Max 350°C, 3s (no pressure may be placed in the terminal when soldering by hand) |
| Any Cd, Pb, and Hg, etc and their compounds do not include in this product | |
| Ambient Temperature | T105 |
| Ambient Humidity | Max 85% |
