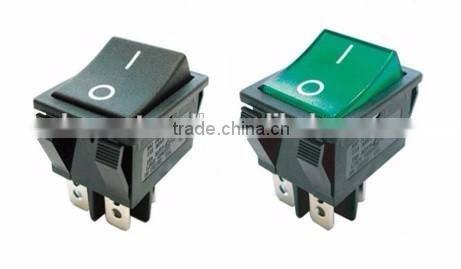

R519 High Rating Rocker Switch
Negotiable
/ Piece
1000 Pieces(Min.Order)
- Taiwan
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | HW | |
| Model Number | R519/R599 | Max. Current | 25A | |
| Max. Voltage | 250VAC | Mechanical Life | 30,000 cycles |
Product Description
R519 High Rating Rocker Switch
Specification
| Electrical Rating | 25A 250VAC/125VAC (UL/cUL) 25A 250VAC (TUV) 25A 250VAC (CQC) |
| Mechanical Life | Over 30,000 cycles |
| Electrical Life | Over 10,000 cycles |
| Contact Resistance | < 20mΩ |
| Insulation Resistance | > 1,000MΩ |
| High Voltage Resistance | >1,500V 1 min |
| Ambient Temperature | Terminal side -20 to +105°C |
| Actuating side | -20 to +55°C |
| Storage Temperature | -30 to +80°C Max |
| Atmospheric Humidity | Max. 85% |
| Actuating Force | 4-8N (depends on different switch function) |
| Flammability | UL94 V-2 |
| Temperature Rise at the terminal | Max 30°C (UL1054) |
| Solder Ability of terminal | Max 350°C, 3s |
Materials:
- Housing: Nylon 66
- Rocker: PC & PA66
- Contacts: Silver Alloy
- Terminal: Brass Silver Plated
- Lamp: Neon Lamp, Tungsten Lamp
- Spring: SWP, SUS
- Movable Arm: Brass Silver Plated
