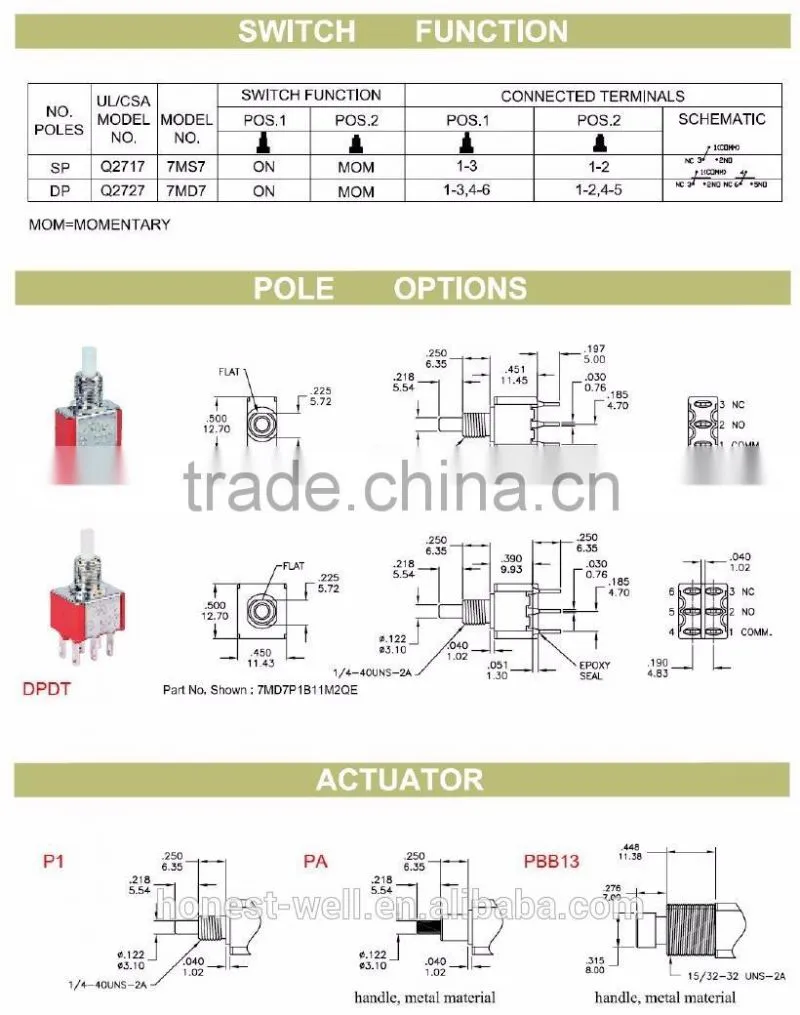

7M Series Pushbutton Switch
Specification:
| Contact Rating | Dependent upon contact material |
| Mechanical Life | 50,000 make-and-break cycle at full load |
| Contact Resistance | 200mΩ max. initial @ 2-4 VDC 100mA for both silver and gold plated contacts |
| Insulation Resistance | 1,000mΩ min. |
| Dielectric Strength | 1,000 V RMS @ seal level |
| Operating Temperature | -30°C ~ 85°C |
Materials:
| Case | Diallyl Phthalate (DAP/UL 94V-0) |
| Plunger | Glass Filled Nylon or Glass Filled Polyester |
| Bushing | Brass Nickel plated |
| Housing | Stainless Steel |
| Contact | Silver or Gold contacts |
