Help CenterSS12F16 1P2T Vertical Type Slide Switch
US$ 0.1 - 0.3
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
SS12F16
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SS12I01 1P2T Vertical Type Slide SwitchNegotiableMOQ: 1000 Pieces -
1P3T Horizontal Type Slide SwitchNegotiableMOQ: 1000 Pieces
-
Electrical Horizontal Type Slide SwitchUS$ 0.1 - 0.5MOQ: 1000 Pieces
-
TTM Series Micro SwitchNegotiableMOQ: 1000 Pieces
-
TTS Series Micro SwitchNegotiableMOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
SS12F16
Max. Current
0.5A
Max. Voltage
50VDC
Overview:
(1) Vertical type slide
(2) Available in various circuit such as 1P2T

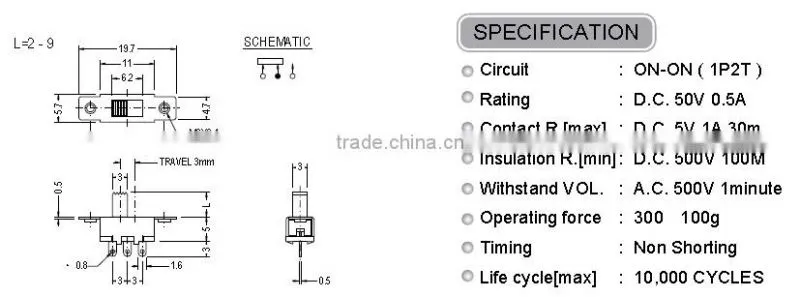

Specification:
| Circuit | ON-ON (1P2T) |
| Rating | D.C. 50V 0.5A |
| Contact R. [max] | D.C. 5V 1A 30mΩ |
| Insulation R. [min] | D.C. 500V 100MΩ |
| Withstand VOL. | A.C. 500V 1 minute |
| Operating force | 300±100g |
| Timing | Non Shorting |
| Life cycle [max] | 10,000 cycles |
