Help CenterSS12I01 1P2T Vertical Type Slide Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
SS12I01
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
SS12I01
Max. Current
1.5A
Max. Voltage
250VAC
Mechanical Life
10,000 cycles

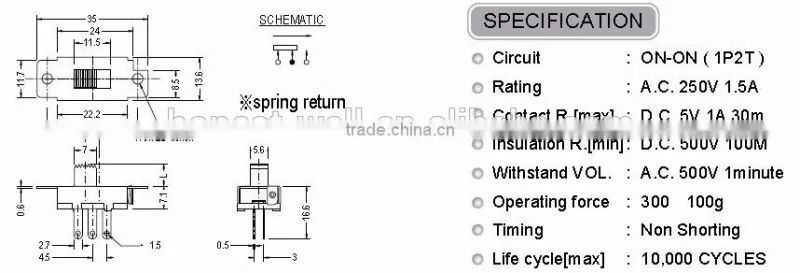

SS12I01 1P2T Slide Switch
(1) Vertical type slide
(2) Available in various circuit such as 1P2T
|
| Circuit | ON-ON (1P2T) |
| Rating | A.C. 250V 1.5A |
| Contact R. [max] | D.C. 5V 1A 30mΩ |
| Insulation R. [min] | D.C. 500V 100MΩ |
| Withstand VOL. | A.C. 500V 1 minute |
| Operating force | 300±100g |
| Timing | Non Shorting |
| Life Cycle [max] | 10,000 Cycles |
