Help CenterPS001 Series Pushbutton Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
PS001
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SS22F39 2P2T Vertical Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces -
LS Series Pushbutton SwitchNegotiableMOQ: 1000 Pieces
-
SS22F15 2P2T Vertical Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
-
SS22F06 2P2T Vertical Type Slide SwitchNegotiableMOQ: 2000 Pieces
-
1P2T Horizontal Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
PS001

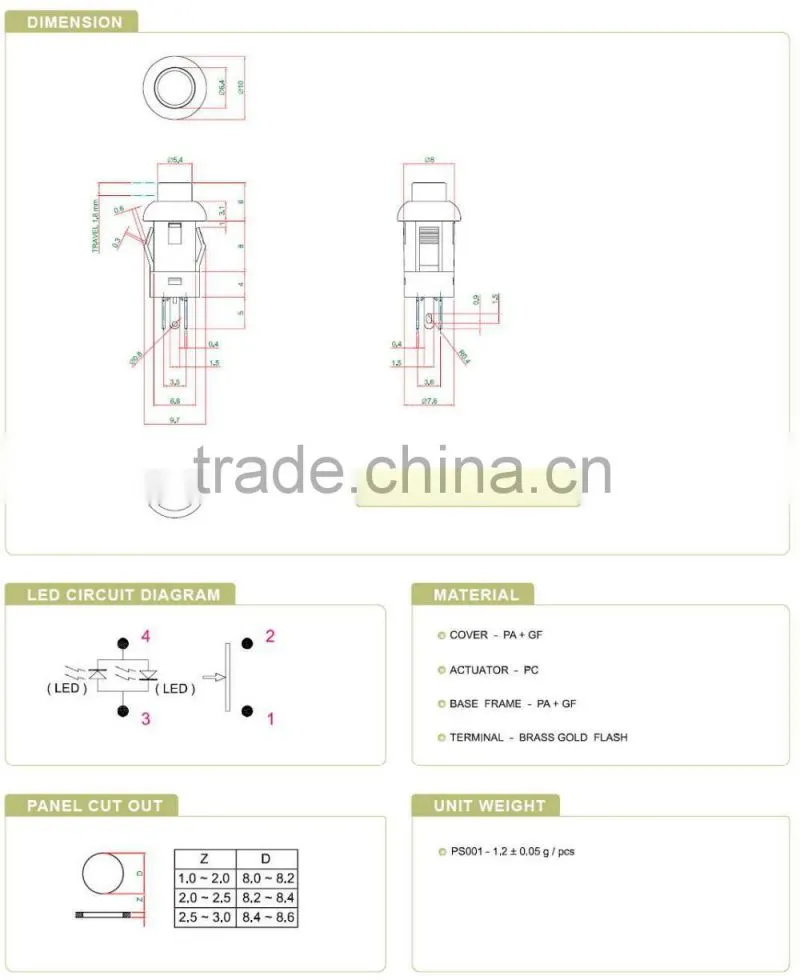

PS001 Series Pushbutton Switch
Feature:
LED illumination, Two Color Available, Snap in Panel Mount Installation, SPST, Momentary
Application;
Automotive Industry, Office Appliances, Computer Products, Communication Equipments
LED Color:
Blue, Green, Red, White, Yellow
Switch Specification:
| Pole-position | Momentary Type, SPST with LED |
| Contact Rating | 30V DC, 0.1A |
| Contact Resistance | 50mΩ max, 1.5V DC; 100mA, by Method of Voltage DROP |
| Insulation Resistance | 100MΩ min, 500V DC |
| Dielectric Strength | Breakdown is not Allowable; 500V AC for 1 minute |
| Operating Force | 250±100gf |
| Operating Life | 10,000 cycles |
| Operating Temperature Range | -40°C~85°C |
| Total Travel | 1.8±0.3mm |
