Help CenterSS22F15 2P2T Vertical Type Slide Switch
US$ 0.05 - 0.1
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
SS22F15
Payment & Shipping
Payment Methods:
Port of Shipment:
Yaiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SS22F06 2P2T Vertical Type Slide SwitchNegotiableMOQ: 2000 Pieces -
1P2T Horizontal Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
-
SK13D10 1P3T Horizontal Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
-
SS22H06 2 Pole 2 Throw Vertical Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
-
SS22H05 2P2T Vertical Type Slide SwitchUS$ 0.1 - 0.2MOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
SS22F15
Max. Current
0.5A
Max. Voltage
DC 50V
Mechanical Life
10000

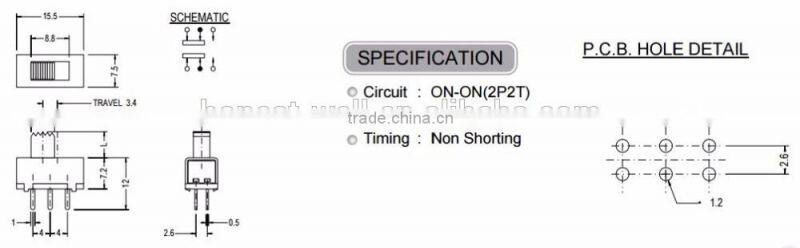

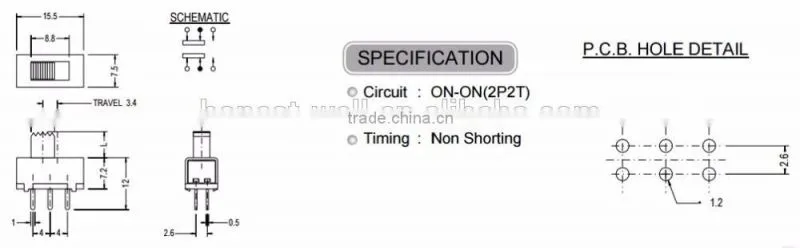

Overview:
(1) Vertical type slide
(2) Available in various circuit such as 2P2T
Specification:
| Circuit | ON-ON ( 2P2T ) |
| Rating | D.C. 50V 0.5A |
| Contact R.[max] | D.C. 5V 1A 30mΩ |
| Insulation R.[min] | D.C. 500V 100MΩ |
| Withstand VOL. | A.C. 500V 1minute |
| Operating force | 300±100g |
| Timing | Non Shorting |
| Life cycle[max] | 10,000 CYCLES |
