Help CenterSS24 Series Rocker Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
SS24
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MLS Series Pushbutton SwitchNegotiableMOQ: 1000 Pieces -
PS001 Series Pushbutton SwitchNegotiableMOQ: 1000 Pieces
-
SS22F39 2P2T Vertical Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
-
LS Series Pushbutton SwitchNegotiableMOQ: 1000 Pieces
-
SS22F15 2P2T Vertical Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
SS24
Size
22 x 18.5
Max. Current
16A
Max. Voltage
250V
Mechanical Life
30000

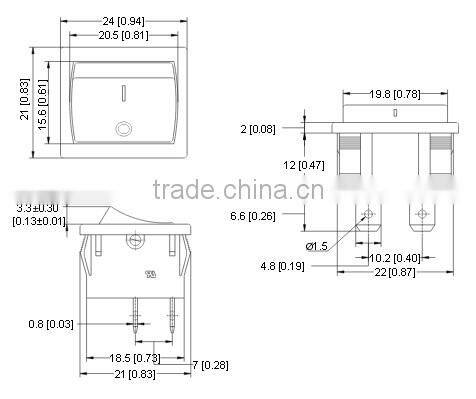

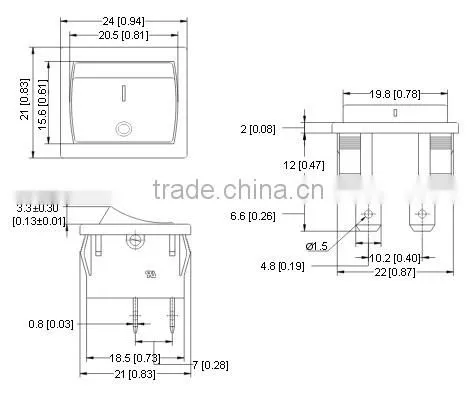

SS24 Series Rocker Switch
Specification:
| Rating |
12A 125V (UL) 16A 125V (UL) 16A 250V (VDE) |
| Mechanical Life | 30,000 cycles |
| Electrical Life | 10,000 cycles |
| Contact Resistance | <20m ohm |
| Insulation Resistance | >1000M ohm |
| High voltage Resistance | >1500V 1 min |
| Ambient Temp |
Terminal -20 ~ +85 Side: -20 ~ +55 |
| Storage Temp | -30 ~ +80 Max |
| Atmospheric Humidity | Max 85% |
| Actuating Force | 4 ~ 8N |
| Flammibility | 94V-0 |
| Temp Rise at Terminal | Max 30C (UL1054) |
| Solder Ability to terminal | Max 350C per 3s |
Material:
| Housing | Nylon 66 (UL94V-0) |
| Rocker | Nylon 66 (UL94V-0) |
| Contacts | Copper Alloy Silver Plated |
| Terminal | Copper Alloy Silver Plated |
| Spring | Piano Wire Nickel Plated |
| Movable Arm | Copper Alloy Silver Plated |
| Roller | Carbon Steel Nickel Plated |
