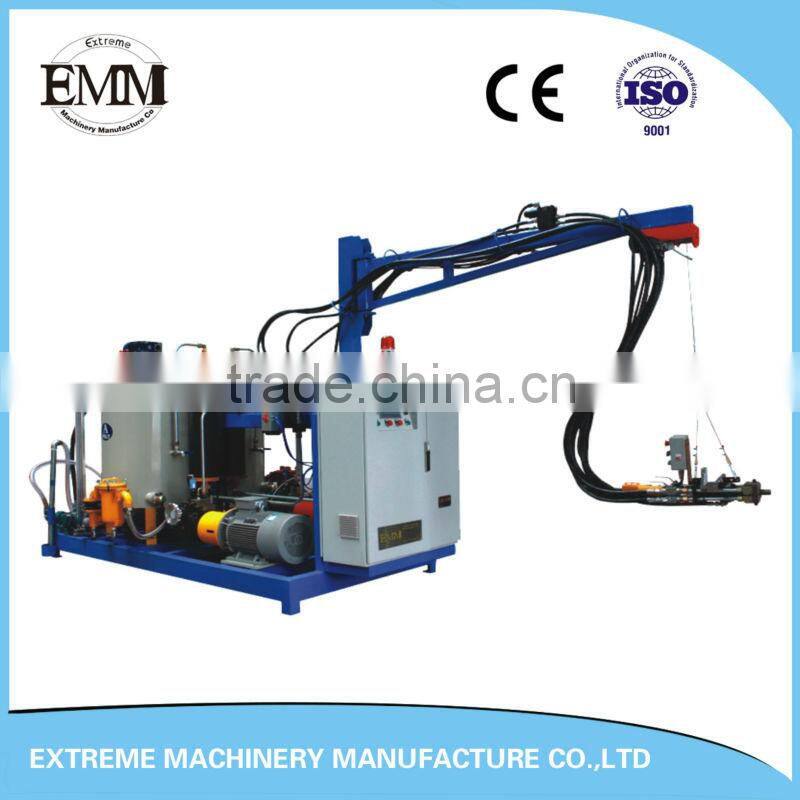

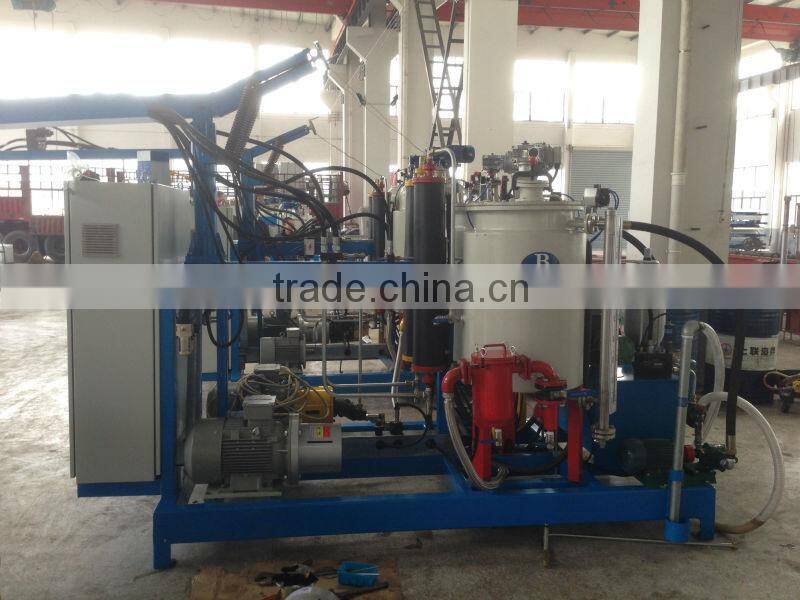

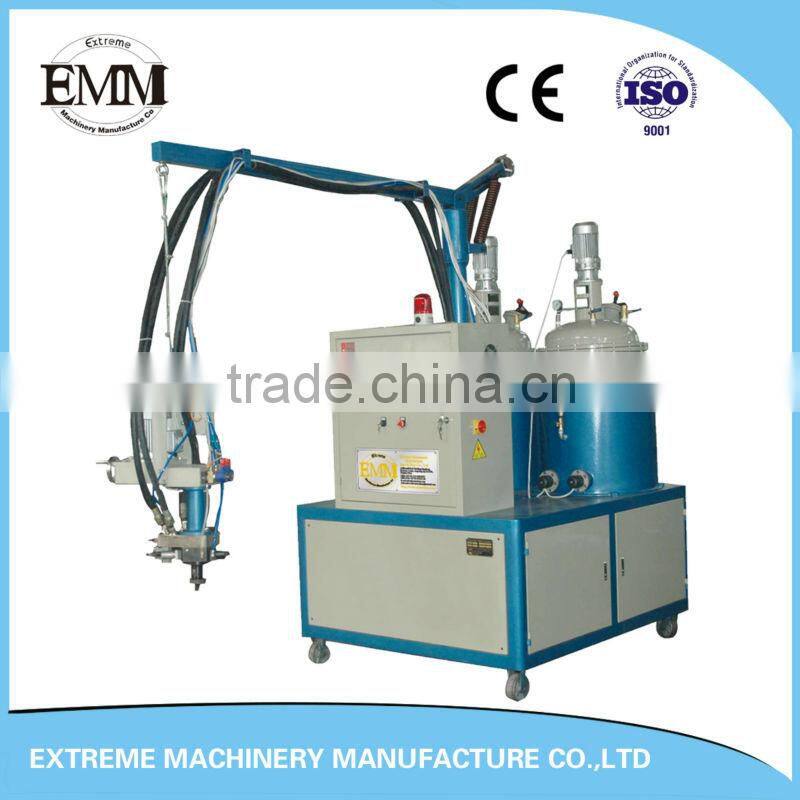

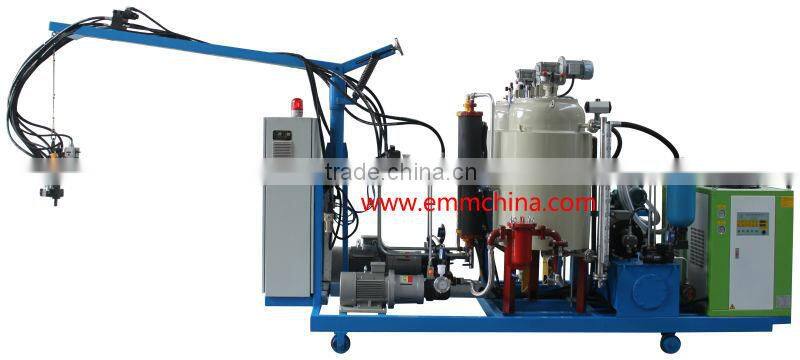

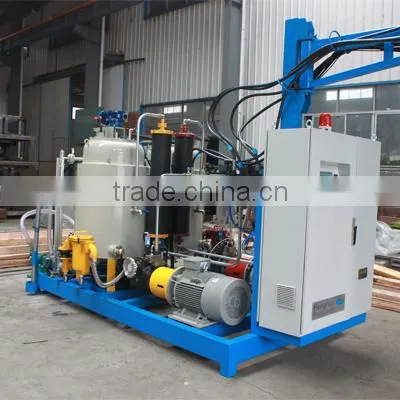

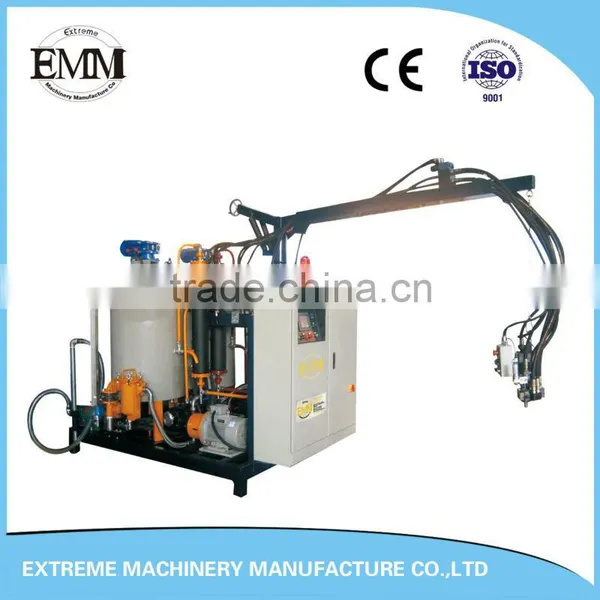

Polyurethane foam machine
The EMM078 series High Pressure machine is that our company follows the international’s advanced technological products, The Main parts are imported from foreign countries, technical and safety performance of the equipment has reached the advanced level of the same product of the same period abroad.
When developing the EMM series high pressure machine, Technology with the "best practices""plug and play", all of the machine’s parts and module are installed at one frame, component’s pipesshort, pressure small, precise at the temperature control, optimization of the control technology,improve the equipment’s reliability and the production’s quantity.
Main parameters and descriptions for the equipment
Suitable foaming system: soft foam, hard foam, simi-hard foam
Suitable material viscosity （22 ℃ ）:
POLY： ~2000mPa.s
ISO：~1000mPa.s
Pouring output: 150—1530g/s (1:1)
110—820g/s (2:1),
with ratio range adjustable 5:1~1:1
Pouring program time: 0.5~99.99sec and grams measuring (All products do not need to convert t
the input pouring time, only set weight of each product, and then using closed loop control to track
automatic , subsequent statistical product weight)
Inject the quantity of the procedure:
Manual inject: 9 station
Automatic inject: 99
1. What does the polyurethane spray foam machine for sale can produce ?
Re: Our machine can used for making insulating layer, making memory foam, toys, Imitation wood and some other foam products.
2. What is the payment terms?
Re:
1. 100% by T/T;
2. 30% deposit by T/T,the balance paid by T/T before commodity inspection and before shipment.
3. 30% deposit by T/T, the balance paid by L/C at sight;
4. 100% by L/C at sight;
3. How can I contact you?
Re: Please send email or add skype : emmchina006

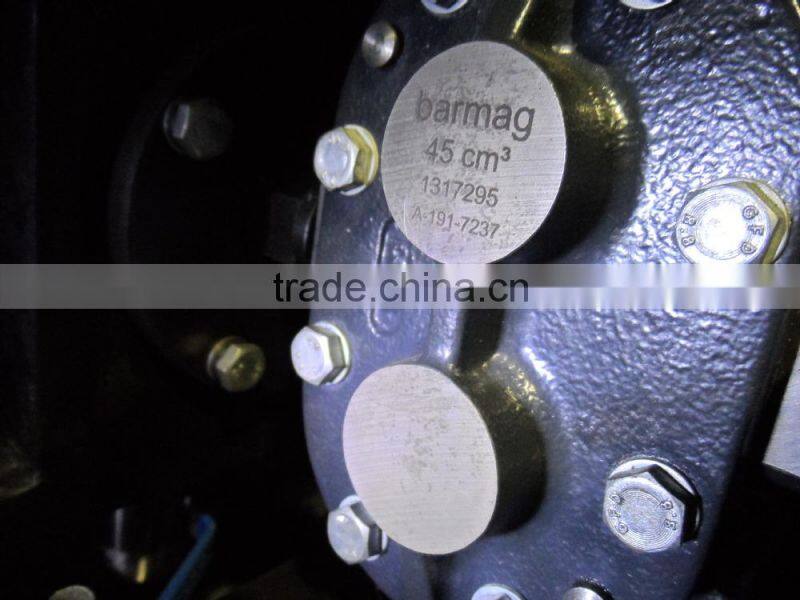

Metering pump:

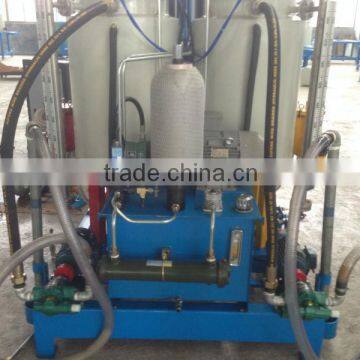

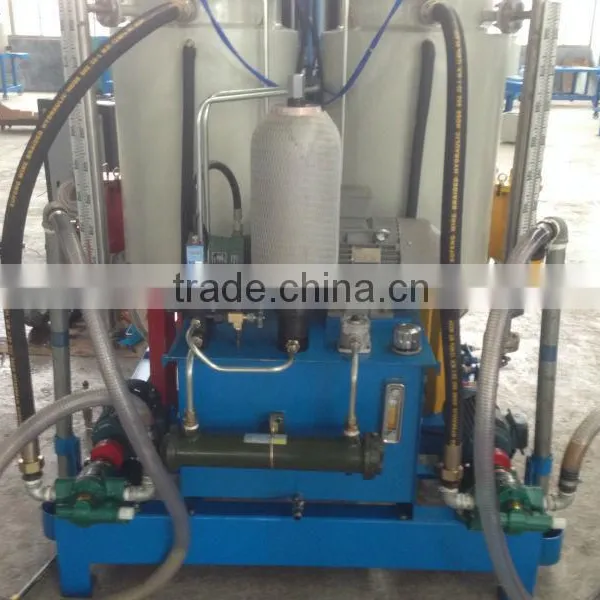

Hydraulic unit:
---motor power: 7.5 kw
---motor speed: 1450 rpm
---oil tank volume: 80L
--- 1 integration board covered the tank which installed with drive motor, pump, flexible coupling, and
an integration block including boost valve, limit valve, gauge, pressure switch and manual relief valve,
etc.
--- 1 return oil filter and 1 precision scavenge filter with sender
Temperature control unit:
heating capacity : 6KW
The cooling unit [refrigerating capacity (Kcal/h)]; 13500
Two heating units control the tanks’ heating, Achieves the automatic control foaming raw materialtemperature technological requirement through the cooling unit.
Install with 5 HP cooling machine; hydraulic pressure 0.25 MPa

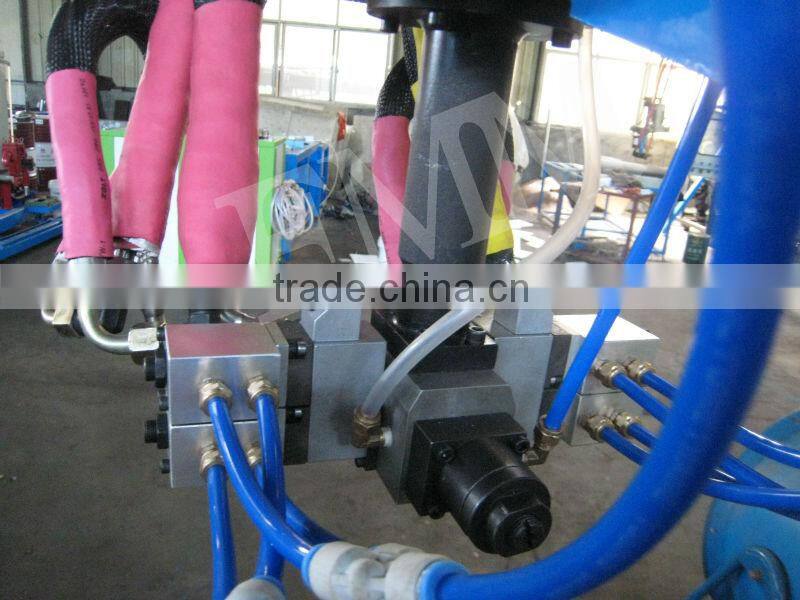

High pressure Mixing head:
order to make sure the mixing purpose, the material is mixed from two different direction, built up with import parts.
Pre-Sales Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
After-Sales Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond thewarranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks.

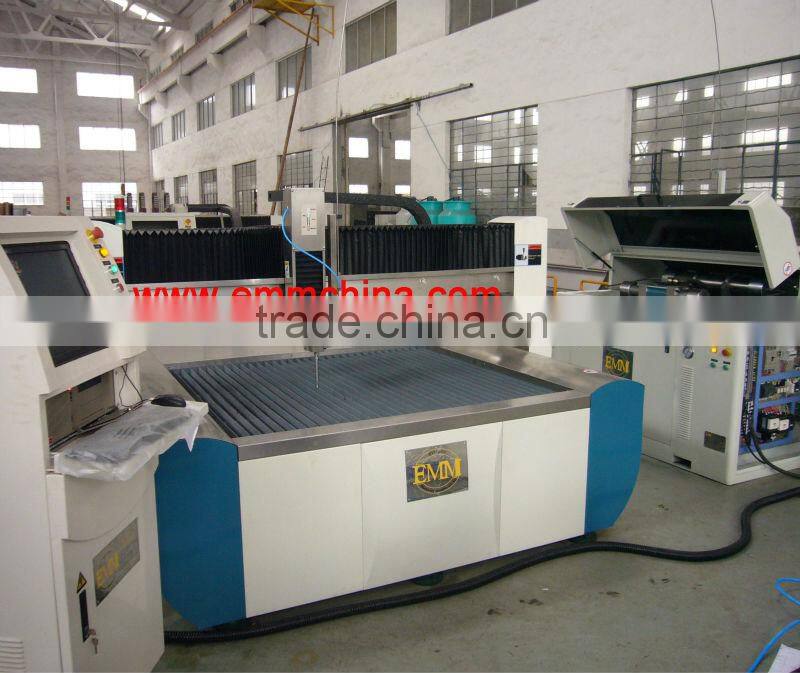

EMA1312 high pressure water jet
EMM078-A100-C high pressure pu polyurethane foam injection machine
EMM078-A100-C high pressure pu polyurethane foam injection machine
