Help CenterEMM105-3 Three Components Polyurethane Casting Machine
Related Products
-
EMM078-A150-H High Pressure Two Components Polyurethane Foam MachineUS$ 40,000 - 55,000MOQ: 1 Set -
EMM106-1 Elastomer Strip MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
EMM106-1 Thermoplastic Polyurethane Elastomer MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
EMM106-1 Gel Elastomer MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
EMM106-1 Machine for Polyolefin ElastomerUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
1.EMM105-3 three components polyurethane casting machine2.Germany technical
3.high quality
4.low pressure
5.safty

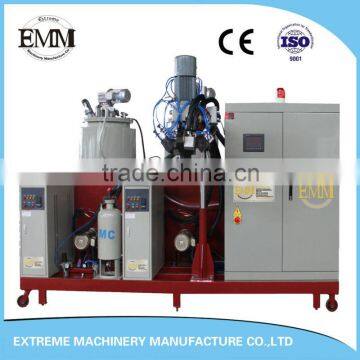

EMM105-3 three components polyurethane casting machine
1. Summarization
The EMM105-3 three components polyurethane casting machine is that our company follows the international’s advanced technological products, The Main parts are imported from foreign countries, technical and safety performance of the equipment has reached the advanced level of the same product of the same period abroad.
The EMM105-3 three components polyurethane casting machine has 2 components to 5 components, and the output can be 0.2kg/min to 120 kg/min, the tank capacity can be 20L to 1000L.
The EMM105-3 three components polyurethane casting machine has two prepolymer barrel and one MOCA/BDO barrel, and three metering units using frequency governors to control the metering pump’s output, thus change the difference mixing index. This kind of machine is specially used in the polyurethane elastomer casting products of TDI and MDI and so on.
2. Main parameters and descriptions for the equipment
2.1 Type: EMM105-3 three components polyurethane casting machine
2.2 Suitable: polyurethane elastomer casting products
2.3 Suitable material viscosity (80℃--160℃):
prepolymer:~4000mPas
MOCA/BDO:10~1000mPas
2.4 Pouring output: 2-10 kg/min (100:14),with ratio range adjustable :100:6-100:20
2.5 Casting program time:0.50~99.99sec
2.6 Inject the quantity of the procedure:
Manual inject: 3
automatic inject: 50
2.7 Metering unit
measurement accuracy of ≤ 0.5%,Used to component measurement, include bracket, frequency conversion speed reduction gear motor, couplings, metering pump, speed sensor, electronic pressure transmitter.
2.8 Working pressure limit and control system
Both Prepolymer and MOCA side working pressure are allowed in a range of 0~4Mpa. Whenever the working pressure exceed the range, the machine will be stopped automatically and give an alarm at the same time.
The lowest pressure for Prepolymer is 0.25Mpa, and the MOCA is 0.15Mpa.
2.9 Flow controls and filling unit
Bases on the pump’s flowout and the components’ mixing inquery, set three parameters in the casting course; component flow through the variable frequence governor adjusts the speed of motor to change the pump output flow, cooperated with their respective note the material valve to detect and correct the three component flow parameters and mixing ratio parameter to realize component flow’s regulation and control.
2.10 Component filter:
Equiped with 3 net like filter, and the precision for prepolymer is 300μm, for the MOCA is 200μm.
foam insulation injecting machine : Standard export package
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
Service during the Sale
1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.
2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.
3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
1. What does the EMM105-3 three components polyurethane casting machine can produce ?
Re: polyurethane elastomer casting products
2. What is the polyurethane injection machine payment terms?
Re:
1. 100% by T/T;
2. 30% deposit by T/T,the balance paid by T/T before commodity inspection and before shipment.
3. 30% deposit by T/T, the balance paid by L/C at sight;
4. 100% by L/C at sight;
3. How can I contact you?
Re: Please send email or add skype : emmchina006
Accessories
Serial number |
description |
Place of origin |
quantity |
1 |
Material tank mixing mechanical seal |
China |
2 sets |
2 |
Mixing head , coat, nozzle |
China |
3 sets |
3 |
Other seals |
China |
standard |
4 |
Random installation tools |
China |
1 set |
5 |
Liquid washing electromagnetic valve |
China |
1 set |
6 |
Air impact electromagnetic valve |
China |
1 set |
7 |
Feeding electromagnetic valve |
Taiwan |
1 set |
8 |
filter net |
China |
2 sets |
