Specifications
nical2.safety performance
3.High Pressure machine

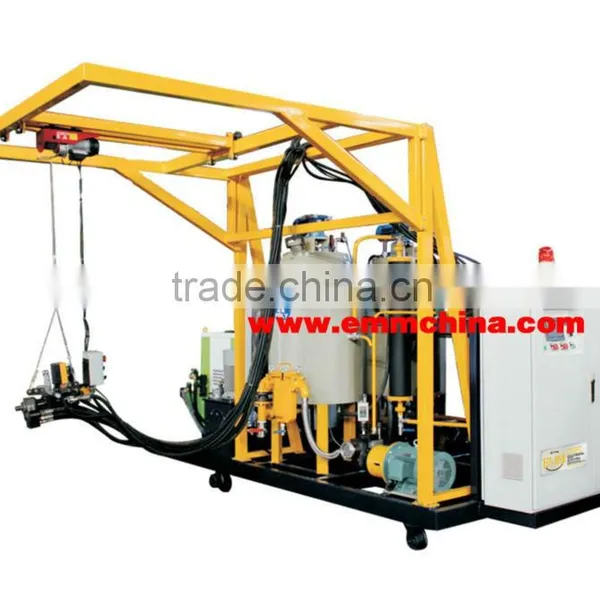

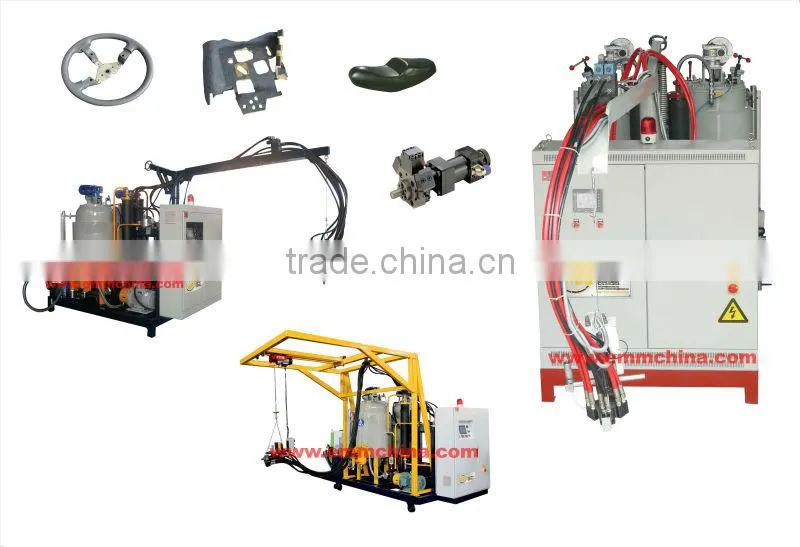

EMM078-A100-S high pressure foaming machine
1. Summarization
EMM078 series high pressure foaming machine is high-tech model combined with international technology and after market research for polyurethane industry application. Main parts are imported and the whole equipment has reliable performance and high safety standard.
EMM078-A100-S ,adopts one tank for POLY.,one tank for ISO.;Two metering units adopt independent variable-frequency motor drive, to control output flow of metering pump by changing speed of high pressure metering pump. Professional in foam industry manufacture.
2. Main parameters and descriptions for the equipment
2.1 Model: EMM078-A100-S
2.2 Foam type:hard foaming,half-hard foaming
2.3 Viscosity: (22°C)
POLY:~2000mPas
ISO:~1000mPas
2.4 Pouring output: 450-1350g/s (1:1, 50Hz), adjust range of mix ratio:2:1~1:1
2.5 Injection time:0.5~99.99 (accuracy reach 0.01s)
2.6 Injection Program No.:
Hand-injection:9
Auto-injection:99
2.7Measure unit:measure accuracy ≤0.5%
Component material |
POLY |
ISO. |
Quantity |
1 |
1 |
Pump model |
A2F28(28cc/rev) |
A2F28(28cc/rev) |
Variable-frequency motor power(kw) |
11 |
11 |
Motor speed(rpm) |
1450 |
1450 |
Pump axis seal |
DOP |
DOP |
For component’s measurement, It includes bracket with vibration pads, variable frequency motor, coupling, axial piston pumps and valves, electronic pressure switches, etc.
2.8 Working pressure limit and control system
Both polyol and isocyanate side working pressure are allowed in a range of 6~22Mpa. Whenever the working pressure exceeds the range, the pouring operation will be stopped automatically and an alarm message of < working pressure abnormality > will be displaying on control panel at the same time.
The limit pressure of the metering pump is pre-settled as 25Mpa and with mechanical & electrical safety protection:
Mechanical protection: the relief valve function open whenever pressure reach 25Mpa,
Electrical protection: the metering unit emergency stop, audio alarm, and a message of <pump over pressure> display on panel screen.
The POLY. metering pump inlet pressure protection is pre-settled as 0.25Mpa, and the ISO. metering pump inlet pressure protection is pre-settled as 0.15Mpa. Whenever the inlet pressure lower than the preset value, the metering unit emergency stop, audio alarm, and a message of <pump pre-pressure too low> display on panel screen.
