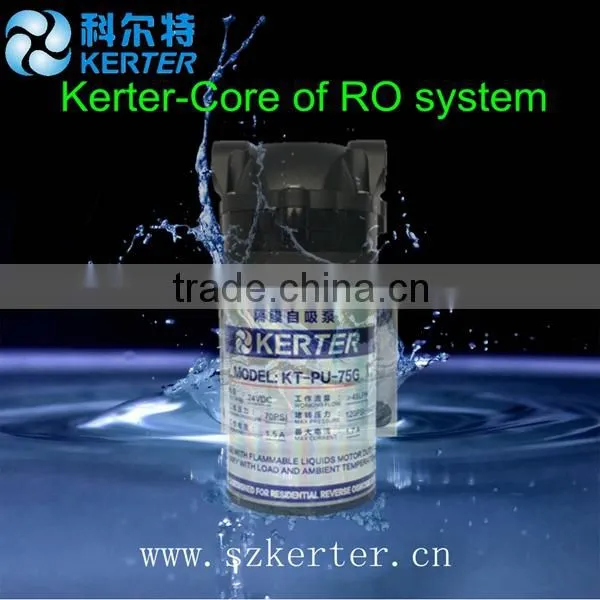

RO water suction diaphragm pump KT-SPU-75G
Specification:
Voltage, DC24V
Feed water pressure, 0PSI
Working pressure, 70PSI
Working current≤1.5A
Work flow≥45LPH
Max current≤1.7A
Max pressure140±10PSI
Packing detail, 6PCS/CTN
Packing size, 40*32*13cm
Gross weight, 12KGS
Application
The pump is designed for residential RO system without source water pressure being zero to increase the inlet water pressure.
Features
Well performance on sucking water in vacuum, expelling the air in pipe automatically, keeping high water pressure stably for a long time, and general features of our products like low power, high water flow, low noise, etc.
Service conditions
1 Ambient conditions:
Temperature: 4℃~40℃. Relativehumidity: less than 90%(25℃)
2 Limited conditions of inlet water
2.1 Source water: Municiplal tap water or other municipal central water
2.2 Inlet water pressure: 0 Mpa
2.3 Inlet water temperature: 5℃~38℃
3 Power supply Voltage: (24±0.5)V DC
4 Working machanism Intermittent work, reasonably working less than 6 hours per day
Main test conditions and acceptance parameters
Working voltage: 24VDC;
Inlet water pressure: 0PSI;
Normal working pressure: 70PSI;
Working water flow under normal working pressure: no less than33L/H;
Working current under normal working pressure: no more than 0.9A;
Closed pressure under zero inlet pressure: 130±10PSI;
Max current(under 140PSI): no more than 1.2A;
Temperature of the motor surface after 24 hours continuous working: no more than 55℃;
Noise: no more than 55dB.
| RO Suction Pump Specification | |||||||
| Model | 50G | 75G | 100G | 200G | 300G | 400G | 400G |
| Voltage | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 36VDC |
| Source Water Pressure | 0PSI | 0PSI | 0PSI | 0PSI | 0PSI | 0PSI | 0PSI |
| Operating Pressure | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI |
| Operating Current | ≤1.3A | ≤1.5A | ≤1.7A | ≤20.A | ≤2.2A | ≤2.5A | ≤1.8A |
| Work Flow | ≥36LPH | ≥45LPH | ≥54LPH | ≥84LPH | ≥126LPH | ≥138LPH | ≥150LPH |
| Max Current | ≤1.5A | ≤1.7A | ≤2.0A | ≤2.5A | ≤3.2A | ≤3.5A | ≤2.8A |
| Max Pressure | 140±10PSI | 140±10PSI | 140±10PSI | 140±10PSI | 140±10PSI | 140±10PSI | 140±10PSI |
Workhouse Display
Packing detail
