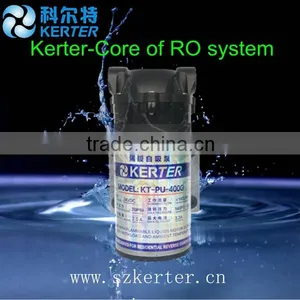

RO water pump for water purifier
Specification:
Voltage, DC36V
Feed water pressure, 0PSI
Working pressure, 70PSI
Working current≤1.8A
Work flow≥150LPH
Max current≤2.8A
Max pressure140±10PSI
Packing detail, 6PCS/CTN
Packing size, 40*32*13cm
Gross weight, 12.6KGS
Application: RO water purifier and water treatment facility
The pump is designed for residential RO system with source water pressure being zero to increase the inlet water pressure to increase the inlet water pressure. Booster pumps increase feed water pressure to keep RO membrane working normally
Features
A) Low noise, corrosion resistance, high pressure, need to row the air in pump,
B) Time-consuming, convenient and easy to set up.
C) Long life-span.
D) Max medium temperature up to 60 centigrade,
E) Pressure switch to protect the pump when it’s running,
F) The built-in relief valve to control the normal operation of the pump,
Working theory
a) Magnetic reaction phenomenon
b) Power transformation, water inlet and output and pressure control
c) Work term: Intermittent working
Series:
A) Booster pumps and Self-suction pumps,
B) Screw and easy-fitting inlet and outlet
| RO Suction Pump Specification | |||||||
| Model | 50G | 75G | 100G | 200G | 300G | 400G | 400G |
| Voltage | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 36VDC |
| Source Water Pressure | 0PSI | 0PSI | 0PSI | 0PSI | 0PSI | 0PSI | 0PSI |
| Operating Pressure | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI |
| Operating Current | ≤1.3A | ≤1.5A | ≤1.7A | ≤20.A | ≤2.2A | ≤2.5A | ≤1.8A |
| Work Flow | ≥36LPH | ≥45LPH | ≥54LPH | ≥84LPH | ≥126LPH | ≥138LPH | ≥150LPH |
| Max Current | ≤1.5A | ≤1.7A | ≤2.0A | ≤2.5A | ≤3.2A | ≤3.5A | ≤2.8A |
| Max Pressure | 140±10PSI | 140±11PSI | 140±12PSI | 140±13PSI | 140±14PSI | 140±15PSI | 140±16PSI |
