Specifications
1. long life2.low noise.
3.high rigidity and precision

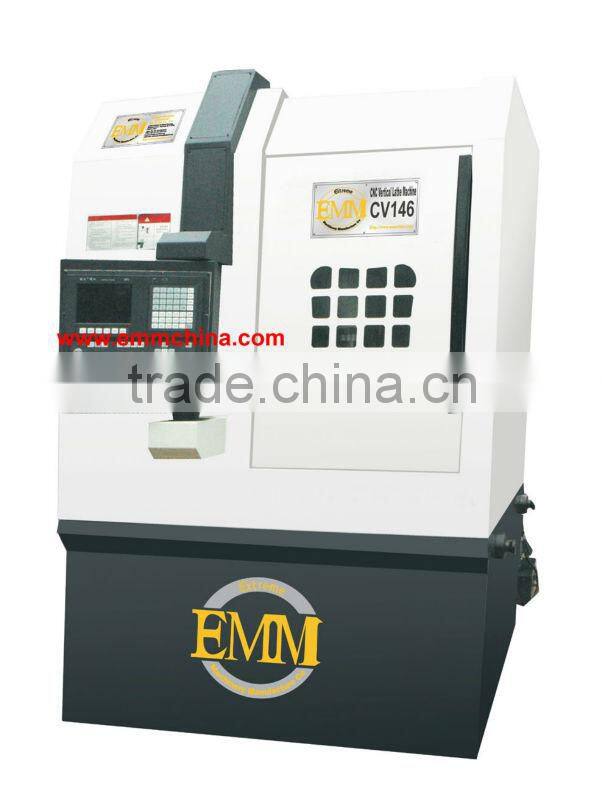

CV146 cnc cutter machine/lathe machine /lathe turning machine for metal
Product Features:
·Compact structure, rigid spindle component and good for heavy cutting.
·Easy to chuck and remove, workpiece roundness and other precision are ensured.
·The turret on the slide moves aiong longitudinal or cross rails.
There are three cross rails to support the slide. Ball screws and linear rails are used to ensure smooth feed and high precision.
·Different handles, electric but tons and CRT displanyer are all on the same rocking panel for easy operation.
·Machine totally sealed guard structure, Back side chip removal conveyor.
Main specification
Items | CV146 | |
Capacity | Max. swing | Φ530 mm |
Max. cutting diameter | Φ500 mm | |
Max. height of turning | 450 mm | |
Spindle | Spindle nose | A2-8 |
Front spindle bearing ID | Φ120 mm | |
Spindle speed range | 100-2000 mm | |
Steps of spindle speed | Variable | |
Chunk dia. | 12” | |
Travel | Travel of Xaxis | -50;+250 mm |
Travel of Z axis | 450 mm | |
Feel | Rapid feed of Xaxis | 8 m/min |
Rapid feed of Z axis | 10 m/min | |
Tool Post | Type of tool stations | Hydraulic |
Number of tool stations | 8 | |
Tool shank size(square) | 25*25 mm | |
Tool shank size (round) | Φ40 mm | |
Motor | Main motor | 11 KW |
Servo motor of Xaxis | 16 Nm | |
Servo motor of Z axis | 21 Nm | |
Hydraulic pump motor | 1.5 KW/2.2 KW | |
Coolant pump motor | 90 W | |
Other | Overall dimensilns(L*W*G) | 1590*2670*2545 mm |
Net weight | 4500kg | |
